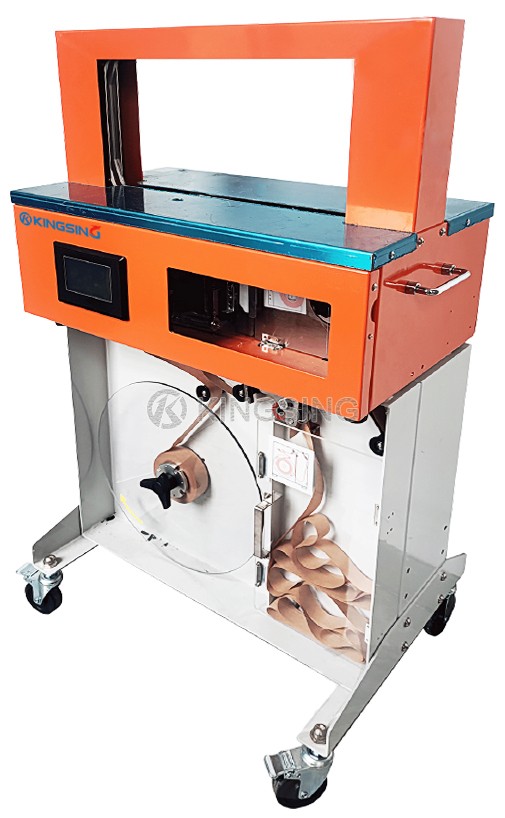

Automatic Bundling Machine (Base Model)

  • Model:
  • Net. Weight:
  • Dimension:
  • The machine has a pulley base that can be moved at will, and the frame is  (width 430*height 200mm) and the height can be customized, which solves the trouble of using the machine to change positions and bundle without moving the machine back and forth. It is suitable for large and small enterprises and individuals, and has no strict requirements on the characteristics and shapes of objects, such as vegetables, food, vermicelli, ham, medicine, electronics, daily cosmetics, gloves, shoes and socks, boxes, etc. All electronic components and mechanical components used are internationally renowned brands, which greatly improves the stability of the machine.

  • The machine can accommodate 500-1000 meters of large reel strapping, saving time for strapping changes and improving work efficiency. This machine is easy to operate, does not require manufacturer personnel for maintenance and use, has a low failure rate, and has a strong strapping force to achieve the purpose of strapping. The strapping tape width of 2 or 3 cm is universal, without glue or residue, and the consumables are cheap. It can be bundled in various forms such as single-shaped, I-shaped, cross, and well-shaped, and is controlled by a microcomputer.

Bundling speed: 30 times/min

Bundling force: 10-50N

Bundling method: induction bundling and pedal bundling in one

Bundle frame size: 430*200mm

Bundling size: maximum 420*190mm/minimum 30*30mm

Power type: electric

Voltage frequency: 220V 50/60HZ

Machine power: 250W

Connector type: welding type

Bundle width: 20/30mm

Bundle material: paper tape/multi-layer composite film tape (universal)

Net weight: 81.5kg

Dimensions: 630*460*1105mm
