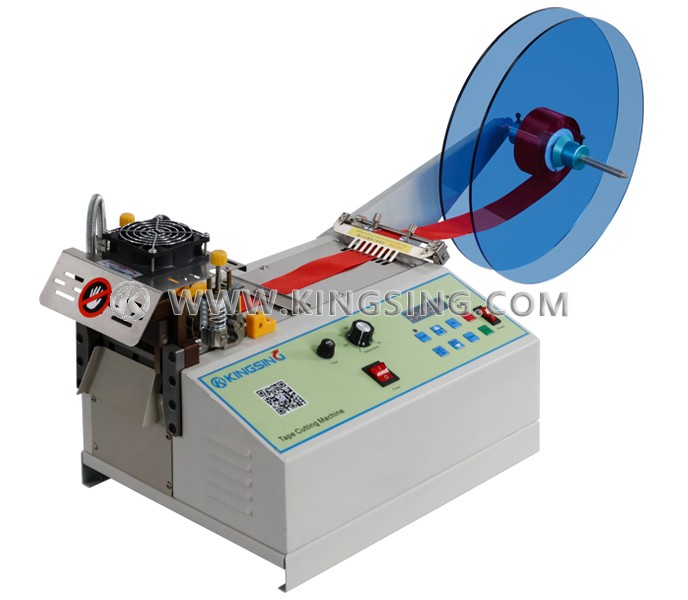

Cold and Hot Knife Belt Cutting Machine

  • Model:KS-100CH
  • Max. Width:95mm
  • Blade Type:Cold Knife & Hot Knife
  • Net. Weight:
  • Dimension:

This is an economical hot and cold knife tape cutting machine, cold or hot knife can be set in the program, it is suitable for cutting thin webbing, ribbons, flexible tubes, etc. When the width of the belt is small, you can install multiple rolls of materials at the same time to increase the capacity.

This is our best-selling model due to its wide range of applications and low price.

Knife Type:Cold and hot knife

Cutting Width:Max.95mm

Cutting Length:1-99999mm

Power:440W

Net. Weight:23Kg

Heating Temperature:0~350°C

Operation Temperature:0~40℃

Power Supply:AC220V 50Hz

Dimension(LxWxH):480x340x380mm

Speed:100pcs/min (depends on the cutting length)

Environment Humidity:30% ~ 80%RH (No condensation at 40℃)

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
