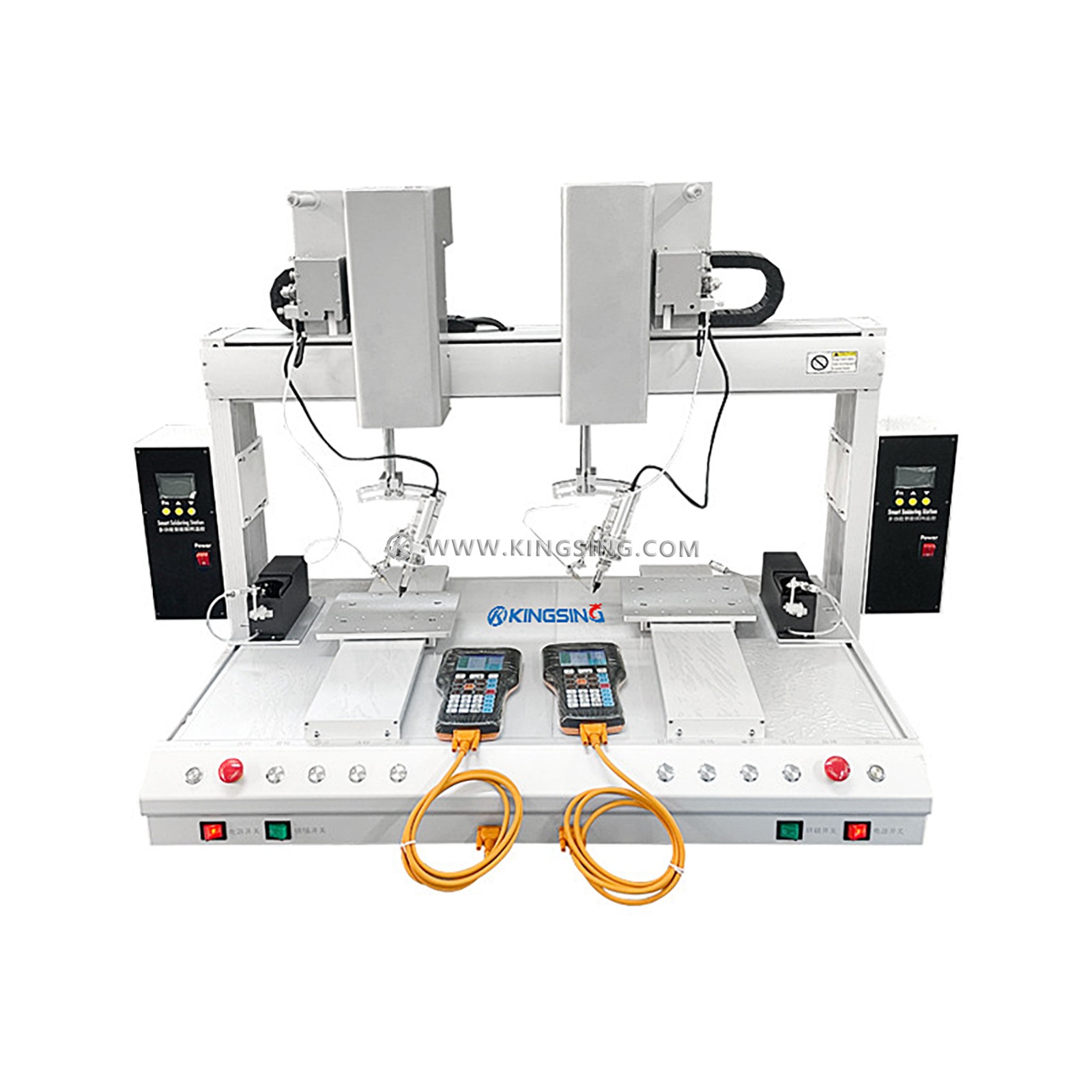

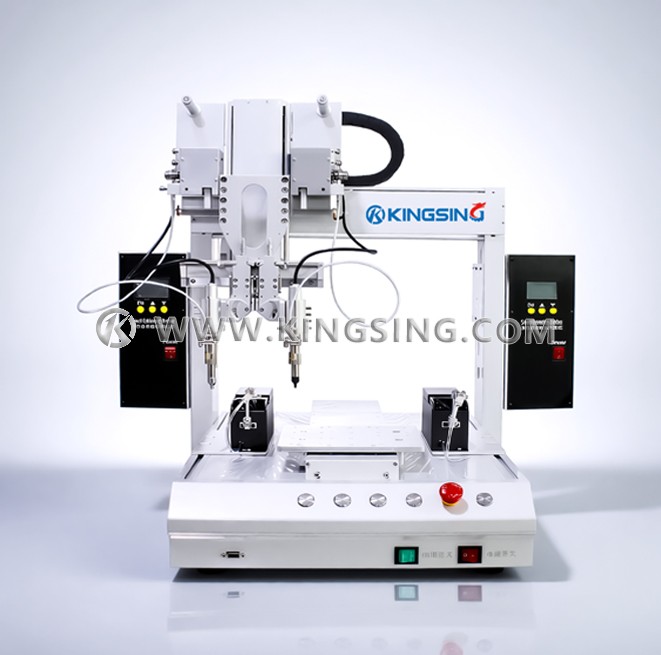

Dual-head Automatic Soldering Machine

  • Model:KS-S902 Series
  • Net. Weight:
  • Dimension:

This dual-head automatic soldering machine is engineered to meet the growing demand for high-efficiency and high-precision soldering in electronics manufacturing. The dual-head configuration enables simultaneous or independent operation of two soldering units, effectively doubling productivity while maintaining stable soldering quality throughout the production process.

The machine supports both point soldering and drag soldering processes, making it highly versatile for different assembly requirements. With programmable control of soldering parameters such as temperature, soldering time, and tin feeding, it ensures consistent performance and reliable solder joints across all applications.

Built with a rigid aluminum frame and driven by a multi-axis precision motion system, the equipment delivers accurate positioning and repeatable soldering results. The dual-head setup allows flexible working modes, including synchronous soldering for higher throughput or independent soldering for different products, providing manufacturers with enhanced flexibility in production planning.

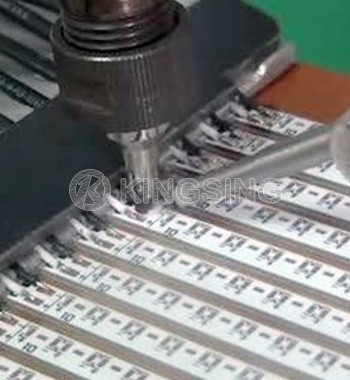

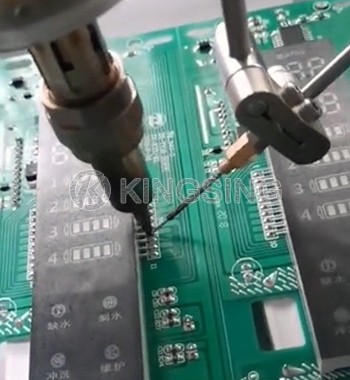

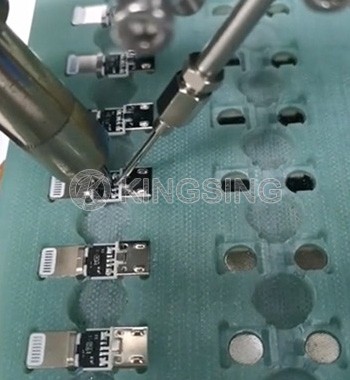

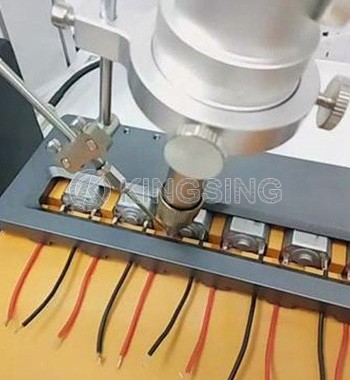

This soldering machine is widely used in PCB wire soldering, connector assembly, charger plug manufacturing, DC terminal tinning, and LED strip production. By replacing manual soldering processes, it significantly improves efficiency, reduces labor intensity, and ensures consistent high-quality results across mass production environments.

soldering robot
soldering robot
soldering robot
soldering robot
Download: (1) (2)

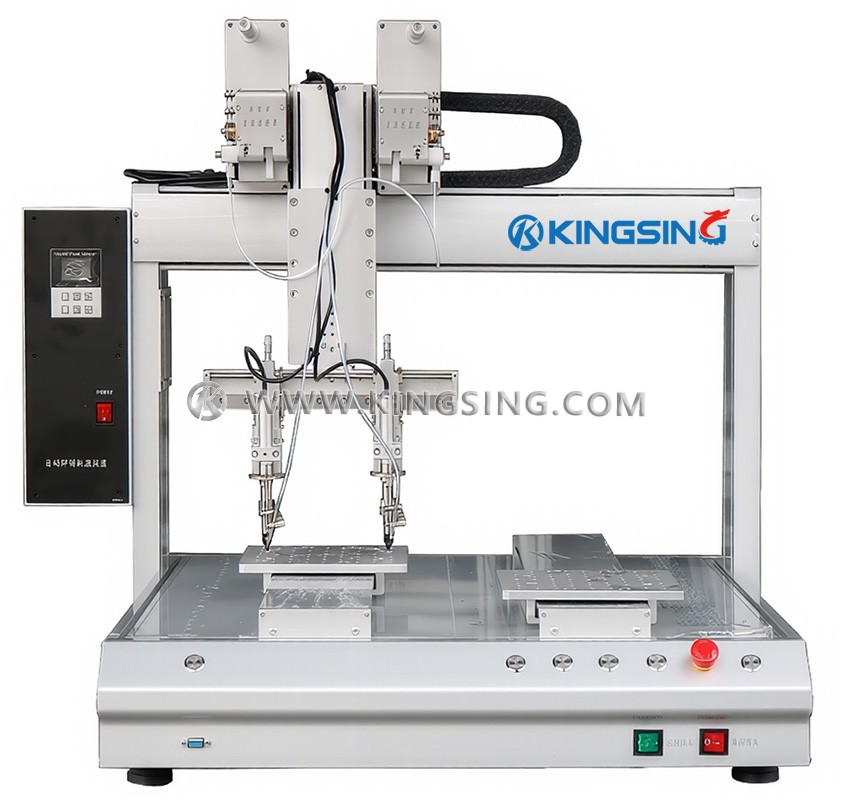

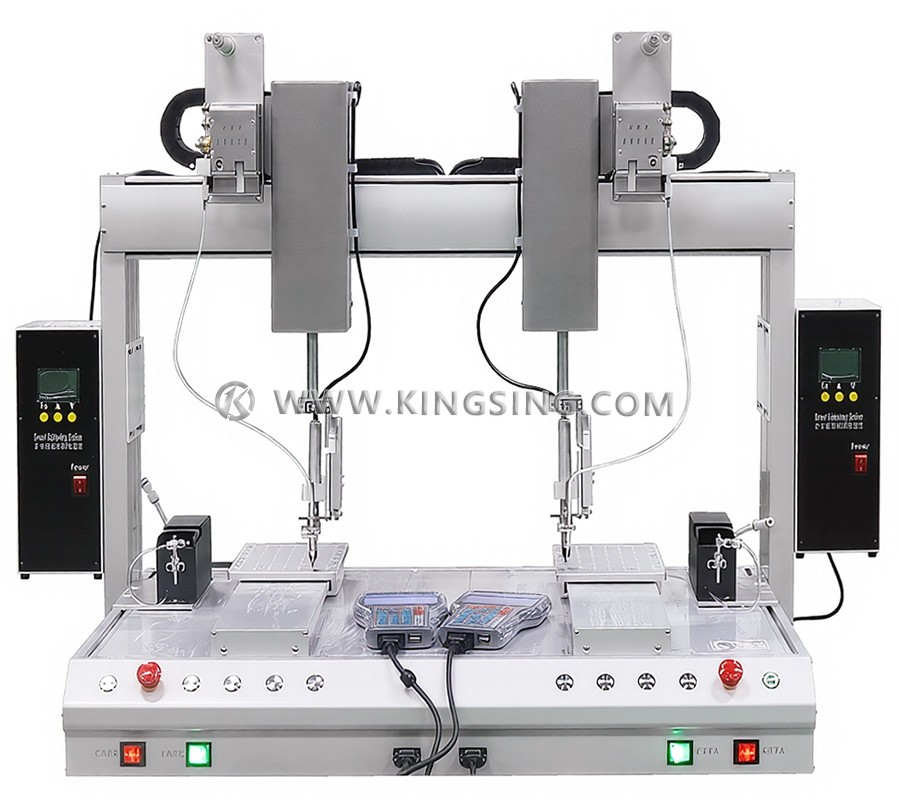

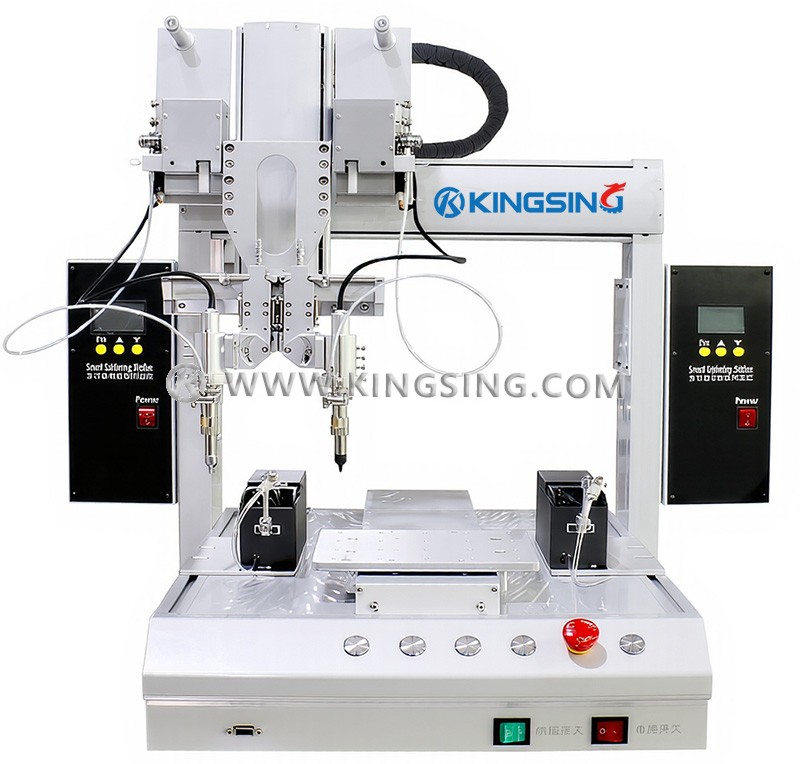

ModelKS-S902AKS-S902BKS-S902C

soldering machine

soldering machine

soldering machine

Y-Axis Quantity1 (Single Station)2 (Dual Station)
Z-Axis Quantity112
R-Axis RotationNoneNone±360°
XYZ Axis Travel300×300×100 mm (customizable)500×300×100 mm (customizable)
XY Translation Speed0–800 mm/s
Repeat Accuracy±0.02 mm
Solder Wire DiameterØ0.3–1.0 mm
Temperature Tolerance±2 °C
Temperature Range50–500 °C
Max. Load10 kg
Program StorageMax. 999 programs
Soldering Time1.2–2 seconds
Power SupplyAC 220V 50/60Hz (customizable)
Optional ConfigurationsSafety Guard Cover, Safety Light Curtain, Tooling Fixture, Fume Extraction and Purification Unit
Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
