Corrugated Tube Cutting and Compressing Machine

  • Model:KS-V445D
  • Diameter:Φ4-45mm
  • Blade Type:utility blade
  • Dimension:

This is a fully automatic corrugated tube cutting and compressing machine, some corrugataed tubes can be easily extended or compressed, and it is normally in extended condition as it is produced from the extruder, our machine can automatically cut and compress this kind of tubes, and it can work together with the extruder to realize online cutting.

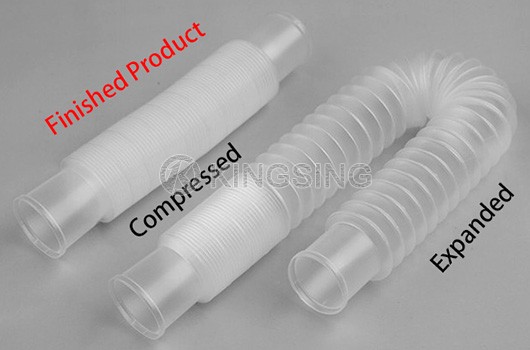

As you can see in the picture, this kind of tubing must be cut at the designated joint, so this machine is equipped with a visual inspection system, which can accurately locate the position that needs to be cut.

KINGSINGKINGSING


Control system:PLC+ HMI

Positioning mode:Visual imaging positioning

Cut off mode:Cylinder clamping cut-off

Air pressure: 0.5-0.7Mpa

Power Supply: AC220V/50-60Hz

Power: 300W

Cut off diameter: Φ10-Φ45

Cutting range: 4-45mm

Cut off position error: ±0.2mm

Production efficiency: 10-34Pcs/min
