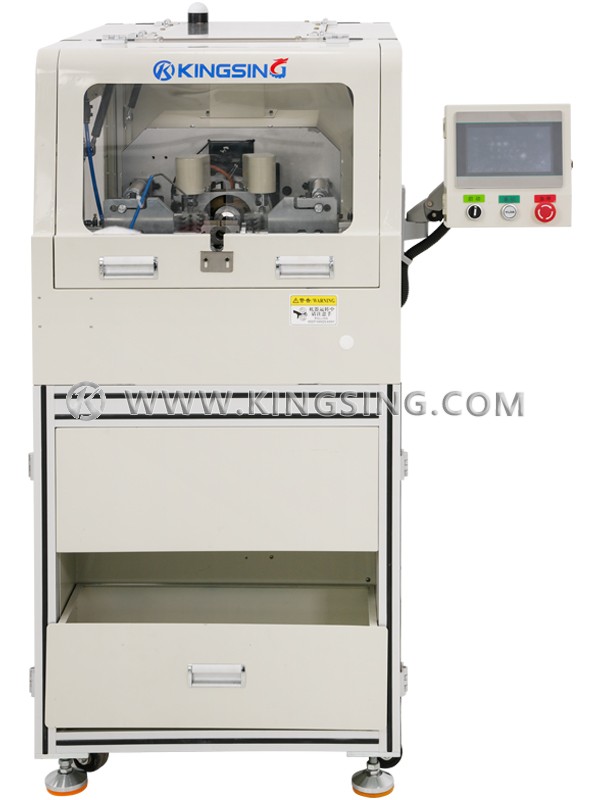

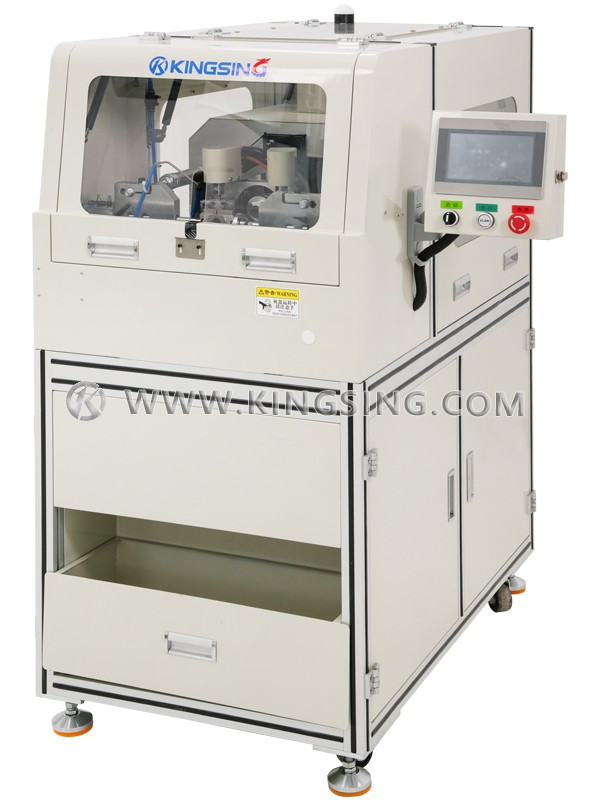

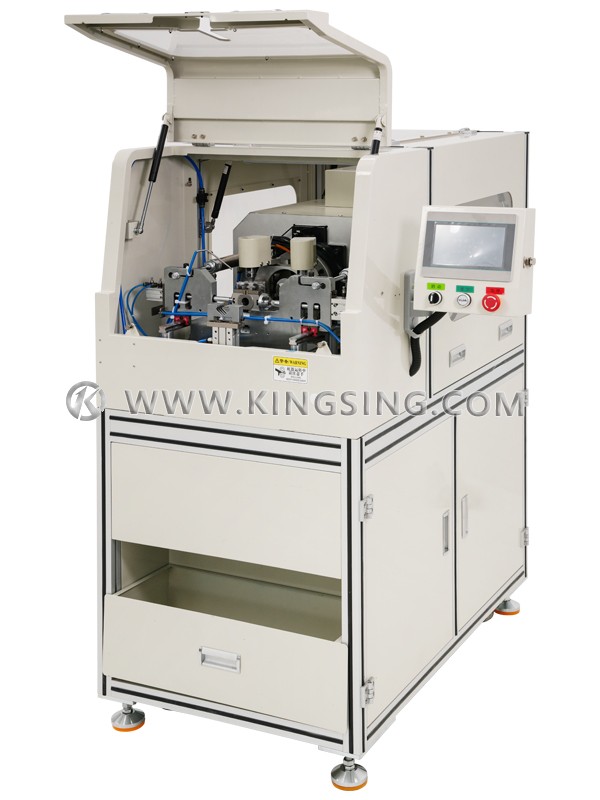

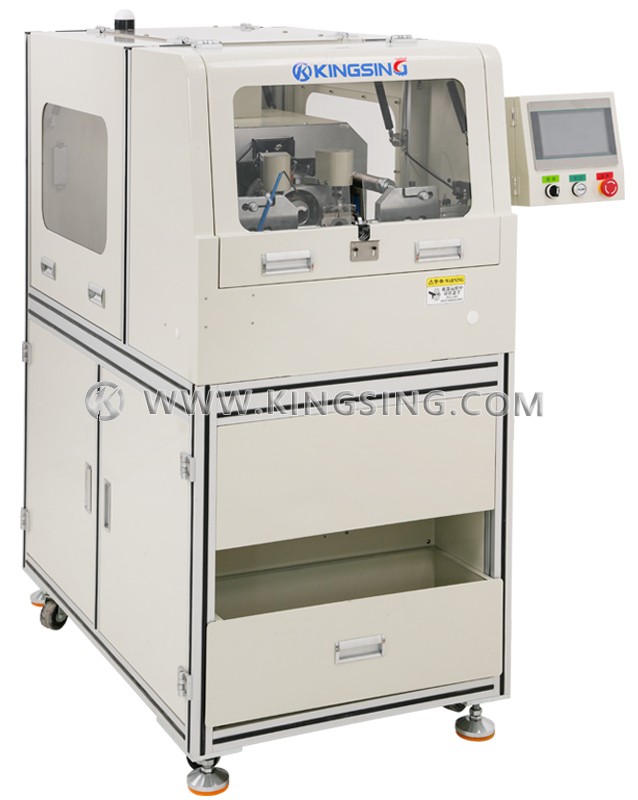

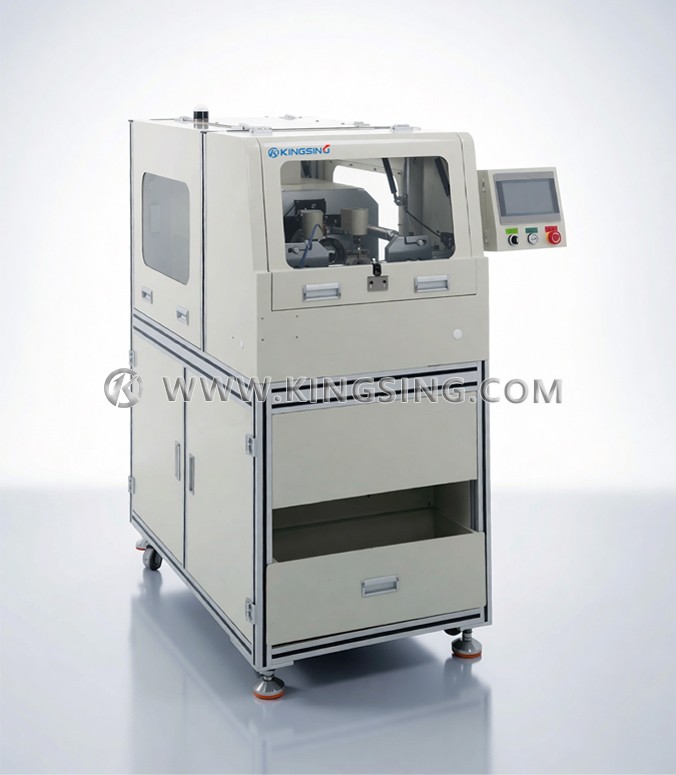

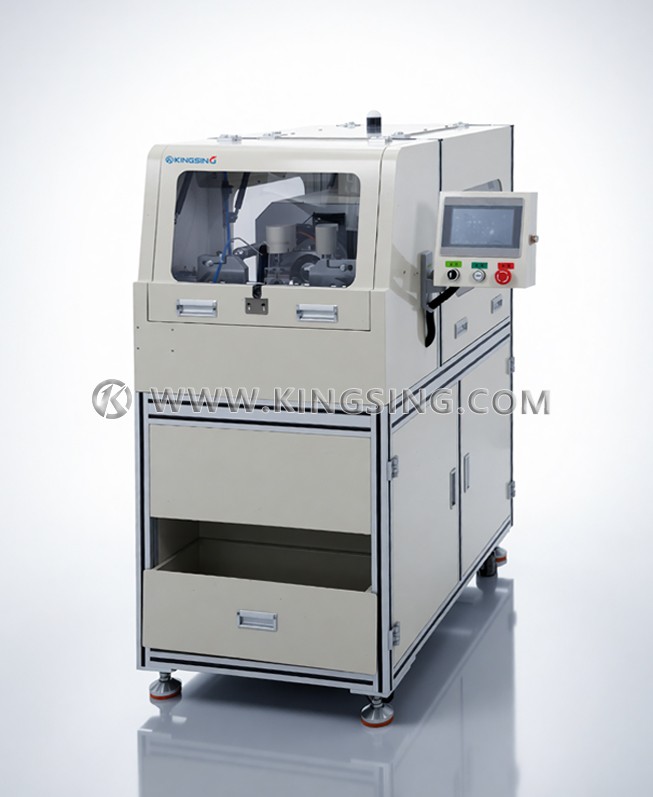

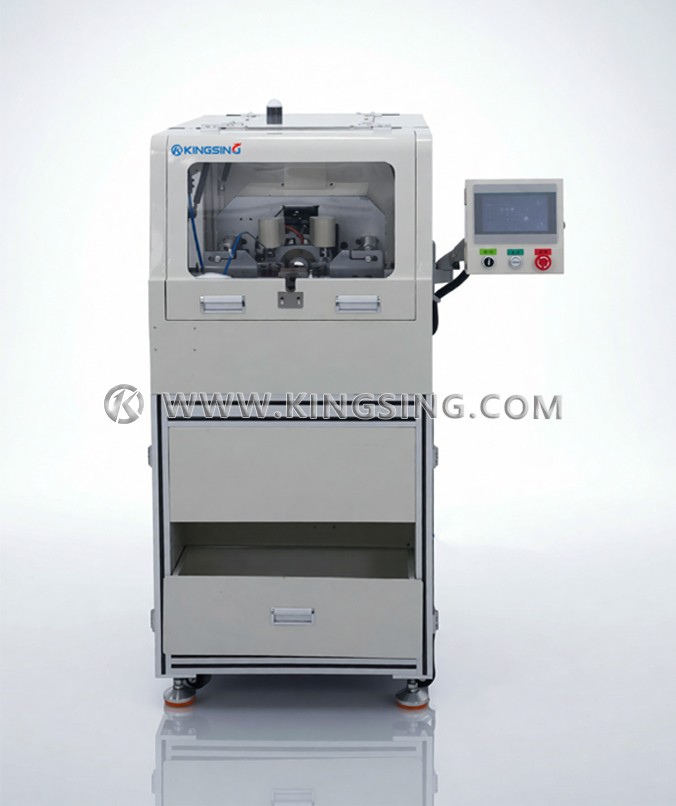

Cable Shield Brushing Cutting and Turning Machine

  • Model:KS-S318
  • Net. Weight:300KG
  • Dimension:1250×950×1480mm

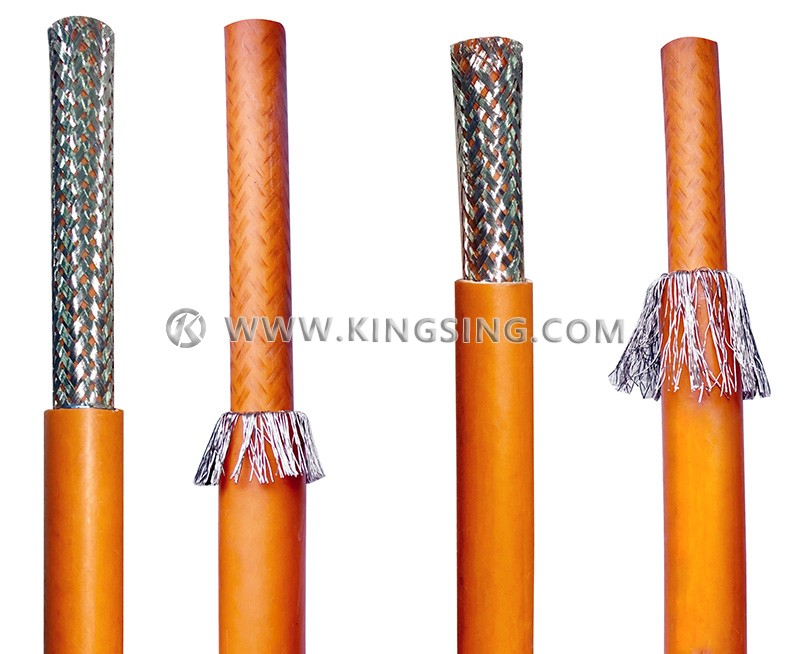

This is an automatic cable shield brushing cutting and turning over machine, the cable outside jacket needs to be stripped in advance, the operator only needs to put the cable head into the processing area, then it can automatically brush the shielding, cut it to specified length, and turn over the left shield. It's usually used for processing high voltage cable with braided shielding.

While the brushes comb the braided shielding, they also rotate 360 degrees around the cable head, so that the shield can be brushed in all directions, and the effect and efficiency are improved. The shielding is cut off by a ring blade, the cut surface is flat and neat.

Color touch screen operation interface, the shield cutting length is adjustable. This machine has memory function, which can store 20 groups of processing parameters.


Download: (1)
Availabel Wire SizeΦ3~9mmΦ10~18mm
Shielding Length Range10~35mm10~80mm
Shielding Left Length3~10mm5~30mm
Circle Time3~5.5s4.5~10s

Power Rating: 800W

Power Supply: 220V 50/60Hz

Dimension: 1250×950×1480mm

Net. Weight:300KG

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
