Automatic Cable Cutting and Stripping Machine

  • Model:KS-W102
  • Brand:KINGSING
  • Price:

KS-W102 is designed relatively compact and user friendly, it is capable of processing awide range of wires/cables with outer diameter from 4-10mm.

  • Fully developedtechnology plus wearing parts designing allow maximum productivity and long service time.

  • This Fully Automatic Cable Cutting and Stripping Machine KS-W102 excels in simplicity of operation and flexibility of application.

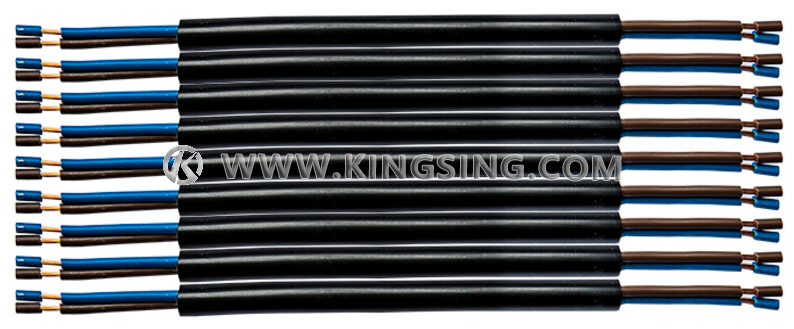

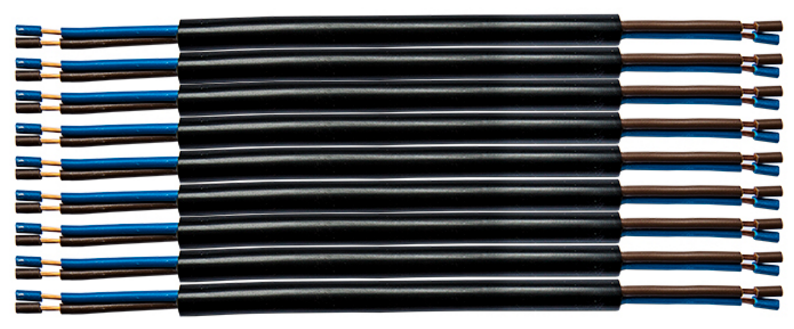

  • No matterwhat the task is, such as 2-core and 3-core jacket cable cutting and strippingand core wire half/full stripping, KS-W102 carries it out with compellingprocess control and perfect processing performance.

  • With 40 sets of programstorage function, simplified the operation process and improved workingefficiency.

  • All you have do is to set the cutting length, outer jacketstripping length and inner core stripping length through the LCD touch screen,the machine will run fully automatically, no extra labor cost.

  • This machine also can be integrated in wire processing lines, for instance, an Electric Wire De-reeling can be attached to provide active wire feeding for the KS-W102, inthe aim of reducing wire tension and improve working capacity.

Display:7inch LCD with English Menu
Suitable Cable:2 core and 3 core power cord
Suitable Cable Diameter:4-10mm
Cutting Length: 9999 mm
Outer Jacket Stripping Length:30-100mm
Stripping Speed:400-600Pcs/h
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Memory Function: Max. 40 group of programs
Power Rating: 600W
Power Supply:AC220V/110V 50/60HZ
Net Weight: 101Kg
Air Pressure: 0.4~0.6Mpa
Dimensions: 800 × 700 × 440mm
