High Precision FFC Flexible Flat Cable Crimping Machine

  • Model:KS-T55821
  • Net. Weight:
  • Dimension:

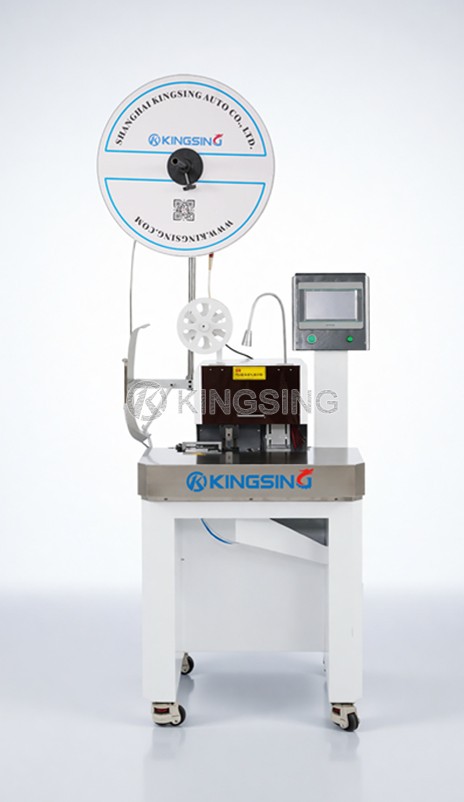

  1. This is a membrane switch panel FFC flat cable crimping machine, the crimping stroke of the terminal machine is 10mm. It is specially designed for crimping FFC cable piercing terminals, which is faster than the traditional 30mm stroke crimping machine. The whole machine has precise workmanship and highly stable crimping. It can be equipped with a crimping force monitor to monitor the crimping force curve changes in each crimping process in real time. When the crimping force is abnormal, it will automatically alarm and stop. In addition, a visual inspection system can also be selected to take pictures of the finished products after crimping to ensure product quality.

  2. Color touch screen operation interface, the program is powerful, the crimping position of each point can be independently set in the program XY coordinates. Even if the crimping points of the FFC wire are not in a straight line, the crimping can be completed at one time, and the skip crimping function is also supported, such as skipping certain positions and not crimping terminals. One machine can process a variety of different products. When replacing the terminal, you only need to replace the corresponding crimping applicator. The applicator adopts a bayonet design to support quick replacement.

Download: (1)

Applicable wire: FFC flat cable, membrane switch flat cable

Flat cable maximum width: 80mm

Terminal machine output: 1.5T

Crimp stroke: 10mm

Operation interface: 7-inch color touch screen

Air pressure: 0.4~0.6Mpa

Power supply: 220V 50/60Hz

Net weight: 115kg

Dimensions: 660*490*1340mm

Optional configuration: crimping force monitor, visual inspection system


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
