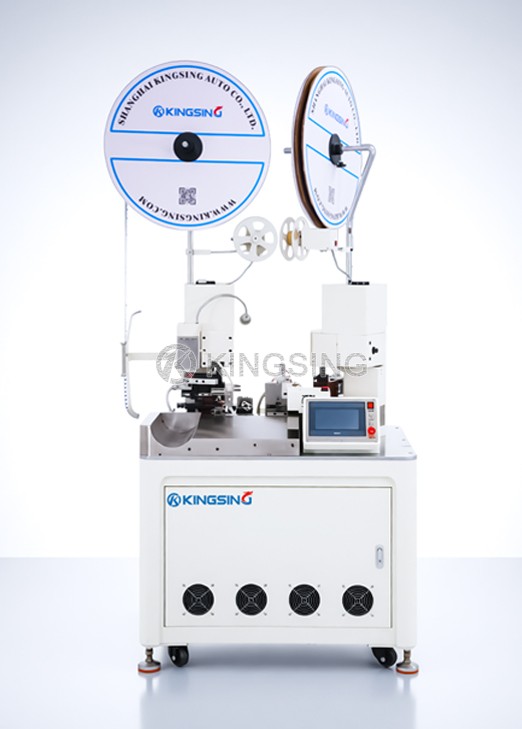

Automatic Tubular Insulated Terminal Crimping Machine

  • Model:KS-A201E
  • Net. Weight:
  • Dimension:
  1. This is an economical double-sided fully automatic crimping machine designed for crimping pre-insulated terminals with closed ends. It is also suitable for crimping various conventional cross-feed terminals, straight-feed terminals and flag-shaped terminals, and bulk terminals can be automatically fed by vibrating discs. This machine is equipped with a rotating twisting mechanism, which can twist the copper wires together after stripping, which can effectively prevent the copper wires from turning over when they are inserted into the inner hole of the terminal. The terminal crimping machine is controlled by a high-precision servo motor. The crimping height can be set directly in the program. It supports 2-stage crimping function. The first stage presses the terminal slightly to allow the copper wire to penetrate accurately, and the second stage crimps again in place.

  2. This machine adopts a translation mechanism instead of the traditional rotation mechanism, and the wire is always kept straight during the processing process, which is beneficial to improve the positioning accuracy. The four-wheel wire feeding mechanism has strong power, which can prevent the wire from slipping, and the feeding length is accurate. The terminal machine is integrally formed of ductile iron, which has strong rigidity and stable crimping height. It can be equipped with a crimping force monitor to monitor the crimping force curve changes of each crimping process in real time. When the crimping force is abnormal, it will automatically alarm and stop.

  3. Adopting the concept of flexible design, one machine can process a variety of different products, and only need to replace the corresponding fixture when replacing wires and terminals. The program memory function can save the processing parameters of different products in the database. When switching products, the corresponding processing parameters can be called out with one key, saving debugging time.

Download: (1)

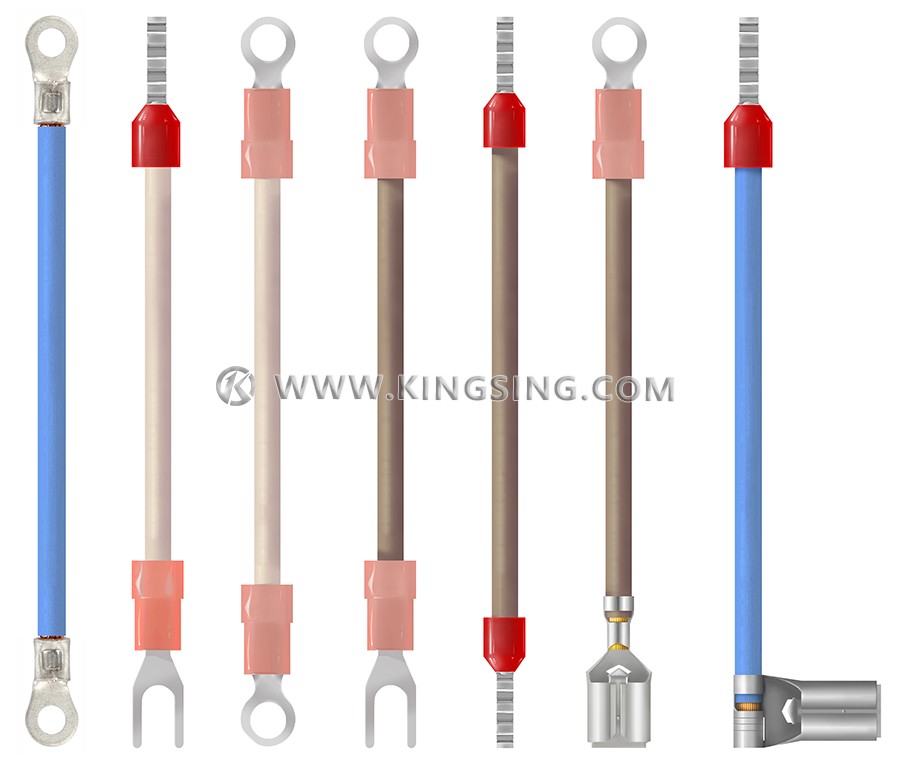

Applicable terminals: pre-insulated terminals, cross-feed terminals, straight-feed terminals, bulk terminals

Applicable wire diameter: 0.1~4mm2 (AWG28~10)

Cutting length: 50~9999mm

Stripping length: ≤12mm

Twisting method: rotating twisted wire

Cutting tolerance: ±(0.5+L*2‰)mm L=cutting length

Crimping force: 2T

Motor Type: Servo Motor

Crimp stroke: 30mm (40mm stroke can be customized)

Production efficiency: 1500~2000 pieces/hour (crimping insulated terminals)

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 360kg

Dimensions: 700*800*1500mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
