Desktop Ultrasonic Wire Harness Welding Machine

  • Model：KS-U21
  • Net. Weight：
  • Dimension：
Online Inquiry

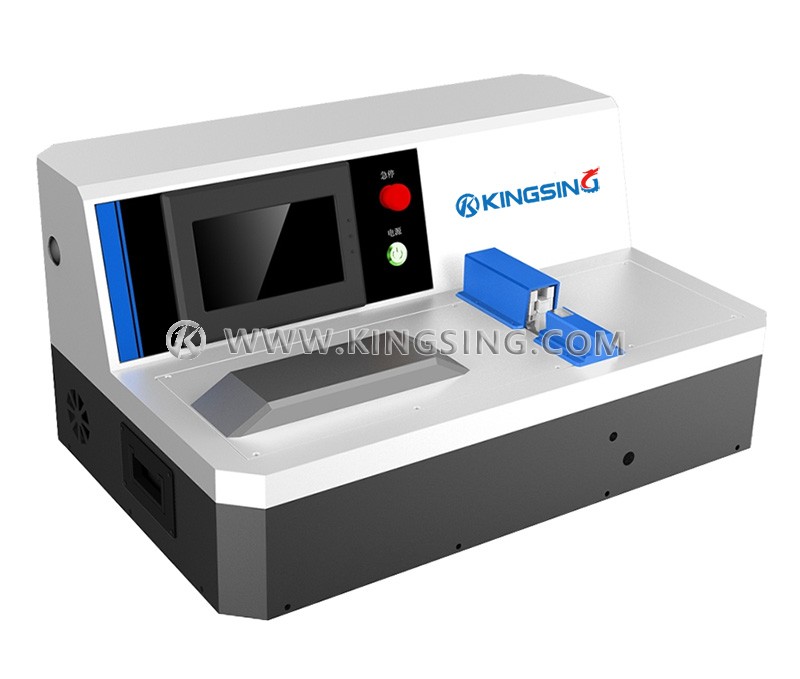

This is a desktop ultrasonic wire harness welding machine with exquisite structure and beautiful appearance. It is suitable for combining and welding multiple copper or aluminum wires together. The width and height of the welding shape can be adjusted. The ultrasonic welding machine converts electrical energy into mechanical vibration through the transducer and acts on the conductor. The heat generated by the vibration and friction will melt the metal, and the cylinder will exert a certain pressure to form the fusion between the molecular layers. During the welding process, no current passes through the conductor to be welded, the welding time is short, the strength is high, and the resistivity is almost 0. It is mainly used in the fields of automobile wiring harness and motorcycle wiring harness.

Download: (1)

Applicable wire diameter: 2~20mm2

Welding size: width ≤ 10mm, height ≤ 6mm

Ultrasonic frequency: 20KHz

Ultrasonic power: 3000W

Welding time: 0.05~1 second

Welding head stroke: 20mm

Production efficiency: ≈0.7 seconds/time

Operation interface: color touch screen

Air pressure: 0.4~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 54kg

Dimensions: 640*425*330mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
