Item No. | Cable Size A.W.G mm2 | Thickness (mm) | Max Current | USA Screw | Screw Dia.d2(mm) | Dimension(mm) | |||||
| W | L | F | E | DФ | dФ | ||||||
|
SNB 0.5-3 | 0.2-0.75(24~18) | 0.5 | 10A | #4 | 3.2 | 5.7 | 14.2 | 5.1 | 4.3 | 2.3 | 1.7 |
|
SNB 0.5-4 | #8 | 4.3 | 6.4 | 14.2 | 5.3 | ||||||
|
Item No. | Cable Size A.W.G mm2 | Thickness (mm) | Max Current | USA Screw | Screw Dia.d2(mm) | Dimension(mm) | |||||
| W | L | F | E | DФ | dФ | ||||||
|
SNB 1.25-3 | 0.5-1.5(22~16) | 0.75 | 19A | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
|
SNB 1.25-3.5S | #6 | 3.7 | 5.7 | 16.0 | 6.5 | ||||||
|
SNB 1.25-3.5L | #6 | 3.7 | 6.4 | 16.0 | 6.5 | ||||||
|
SNB 1.25-4S | #8 | 4.3 | 6.4 | 16.0 | 6.5 | ||||||
|
SNB1.25-4M | #8 | 4.3 | 7.2 | 16.0 | 6.5 | ||||||
|
SNB 1.25-4L | #8 | 4.3 | 8.1 | 16.0 | 6.5 | ||||||
|
SNB 1.25-5S | #10 | 5.3 | 8.1 | 16.0 | 6.5 | ||||||
|
SNB 1.25-5L | #10 | 5.3 | 9.5 | 16.0 | 6.5 | ||||||
|
SNB 1.25-6S | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | ||||||
|
SNB 1.25-6L | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | ||||||
|
Item No. | Cable Size A.W.G mm2 | Thickness (mm) | Max Current | USA Screw | Screw Dia.d2(mm) | Dimension(mm) | |||||
| W | L | F | E | DФ | dФ | ||||||
|
SNB 2-3 | 1.5-2.5(16~14) | 0.8 | 27A | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
|
SNB 2-3.5S | #6 | 3.7 | 5.7 | 16.0 | 6.5 | ||||||
|
SNB 2-3.5L | #6 | 3.7 | 6.2 | 16.0 | 6.5 | ||||||
|
SNB 2-4S | #8 | 4.3 | 6.4 | 16.0 | 6.5 | ||||||
|
SNB2-4M | #8 | 4.3 | 7.2 | 16.0 | 6.5 | ||||||
|
SNB 2-4L | #8 | 4.3 | 8.1 | 16.0 | 6.5 | ||||||
|
SNB 2-5S | #10 | 5.3 | 8.1 | 16.0 | 6.5 | ||||||
|
SNB 2-5L | #10 | 5.3 | 9.5 | 16.0 | 6.5 | ||||||
|
SNB 2-6S | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | ||||||
|
SNB 2-6L | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | ||||||
|
Item No. | Cable Size A.W.G mm2 | Thickness (mm) | Max Current | USA Screw | Screw Dia.d2(mm) | Dimension(mm) | |||||
| W | L | F | E | DФ | dФ | ||||||
|
SNB 3.5-3 | 2.5-4(14~12) | 1.0 | 37A | #4 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
|
SNB 3.5-4S | #8 | 4.3 | 7.2 | 18.3 | 7.0 | ||||||
|
SNB 3.5-4 | #8 | 4.3 | 8.0 | 18.3 | 7.0 | ||||||
|
SNB 3.5-5 | #10 | 5.3 | 8.0 | 18.3 | 7.0 | ||||||
|
SNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | ||||||
|
Item No. | Cable Size A.W.G mm2 | Thickness (mm) | Max Current | USA Screw | Screw Dia.d2(mm) | Dimension(mm) | |||||
| W | L | F | E | DФ | dФ | ||||||
|

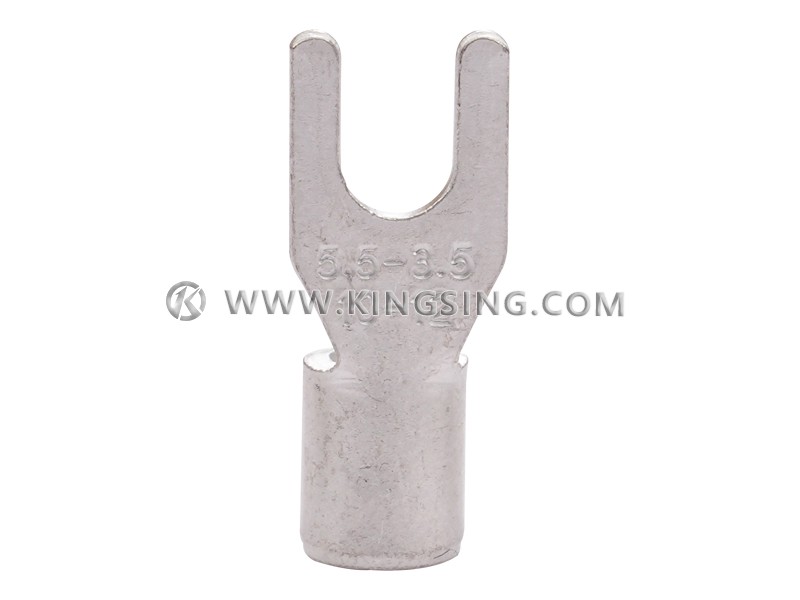

SNB5.5-3.5 | 4-6(12~10) | 1.0 | 48A | #6 | 3.7 | 7.2 | 18.2 | 7.5 | 6.8 | 5.6 | 3.4 |
|
SNB 5.5-4S | #8 | 4.3 | 8.3 | 19.5 | 7.5 | ||||||
|
SNB 5.5-4L | #8 | 4.3 | 9.0 | 19.5 | 7.5 | ||||||
|
SNB 5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | ||||||
|
SNB5.5-6S | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | ||||||
|
SNB5.5-6L | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | ||||||
|
SNB5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | ||||||
Teriminal Body:Copper
Plating:Tin
