Cold and Hot Blade Belt Cutting Machine

  • Model:KS-200CH
  • Max. Width:200mm
  • Blade Type:Cold Knife & Hot Knife
  • Net. Weight:
  • Dimension:

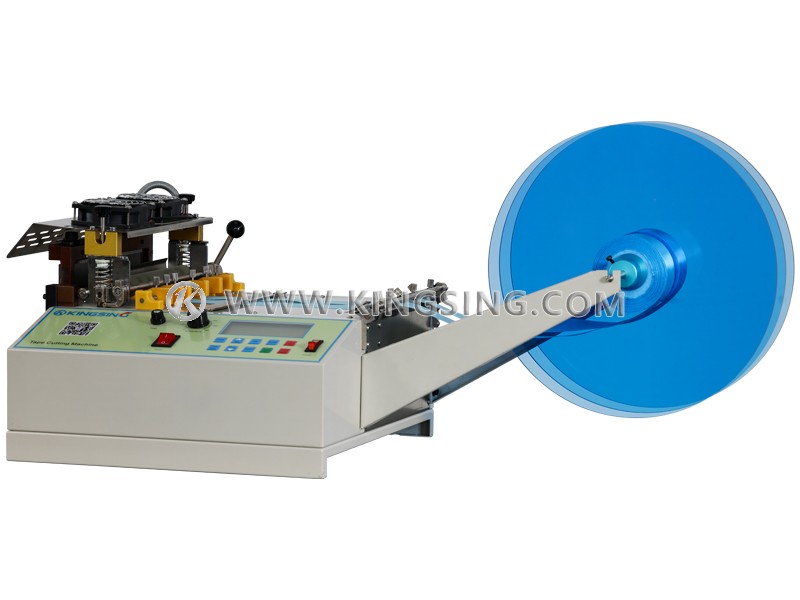

This is a universal tape cutting machine with hot and cold knives, suitable for cutting various webbing and hoses with a maximum width of 200mm. When cutting narrower tapes, it can also mount multiple rolls at the same time to improve work efficiency.

Cold cutting or hot cutting can be set in the program. When hot cutting is selected, the temperature of the cutter can be adjusted freely. The operator only needs to simply set the cutting length and quantity, and the machine can automatically complete the cutting.

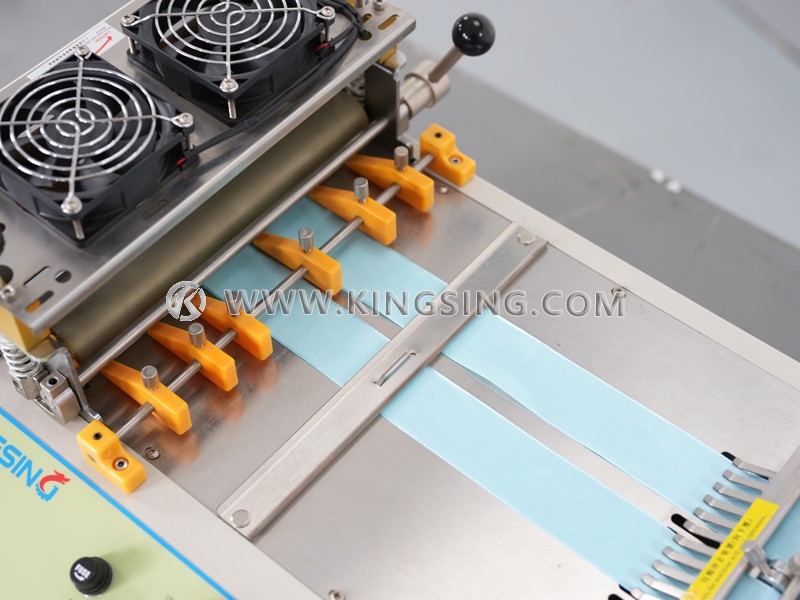

Some tapes with patterns need to be cut at the specified position, such as care label. At this time, the color detection sensor can be selected, which can accurately identify the correct cutting position and ensure that there is no accumulated error. This function is optional, the standard machine does not include this function.

Download: (1) (2)

Knife Type:Cold and hot knife

Cutting Width:Max.200mm

Cutting Length:1-99999mm

Power:440W

Net. Weight:28Kg

Heating Temperature:0~350°C

Operation Temperature:0~40℃

Power Supply:AC220V 50Hz

Dimension(LxWxH):480x340x380mm

Speed:100pcs/min (depends on the cutting length)

Environment Humidity:30% ~ 80%RH (No condensation at 40℃)

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
