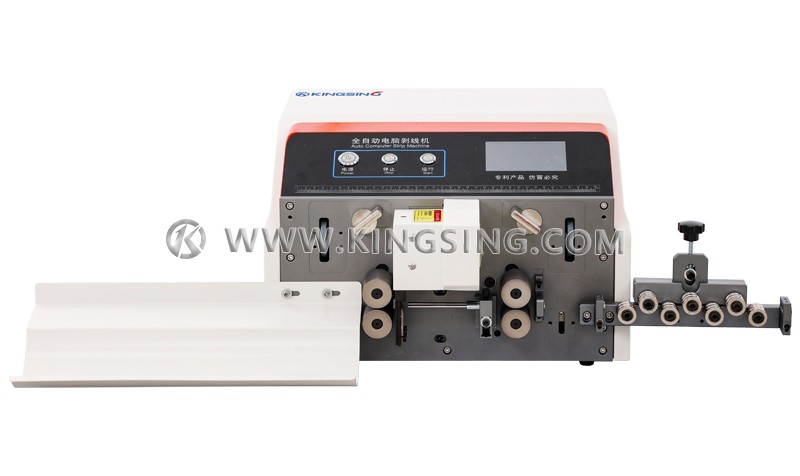

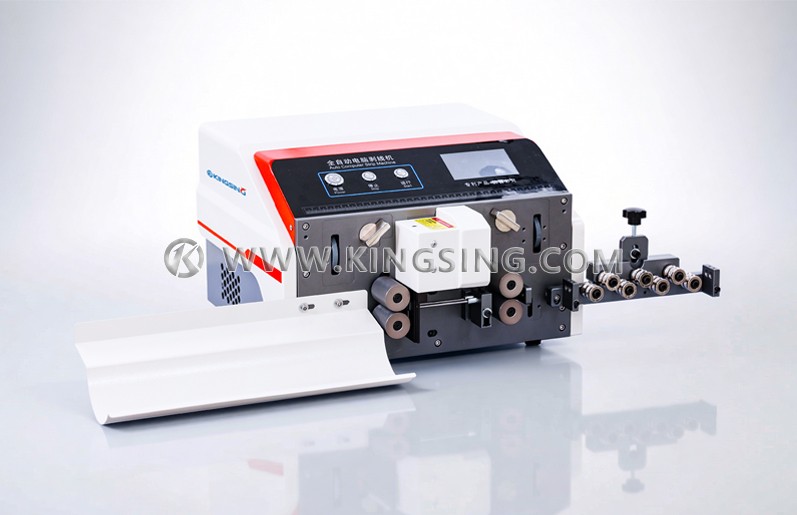

Automatic Wire Stripping Machine

  • Model:KS-W125A
  • Wire Size:
  • Net. Weight:
  • Dimension:
  • This machine uses the domestic first-line brand Kunlun Tongtai full HD color touch LCD screen plus the single-chip self-developed motion control board, which is more efficient and stable.

  • This machine uses a full metal straightener with a one-touch quick switch, and the wire feeding wheel can be equipped with a rubber wheel or an iron wheel.

  • Electric conduit wire feeding, the knife holder uses imported material heat treatment grinding process. Save labor and time and improve production efficiency.

  • Mainly used for electronic wires, silicone wires, Teflon wires, glass woven cotton, isolation wires, coaxial wires, sheathed wires, etc.

  • Fully automatic cutting, stripping, half stripping, one-time completion, fast change of wire specifications and sizes, high production efficiency.


Download: (1)

Operation page: HD touch screen operation

Cutting tolerance: 0.002*L-MM

Stripping length: wire head 0-30mm, wire tail 0-30mm

Conduit control method: motor

Wire cutting length: 0.1-99999.9mm

Applicable range: within 0.1-6mm2

Drive mode: 4-wheel drive

Production capacity: about 8000-15000 lines (depending on the wire material)

Power supply: 220V~50-60Hz

Weight: 31kg

Machine size (L*W*H): 430mm*460mm*290mm (excluding protrusions)
