Semi-automatic Big Cable Pair Twisting Machine

  • Model：KS-A23B
  • Net. Weight：
  • Dimension：
Online Inquiry

 Machine Description

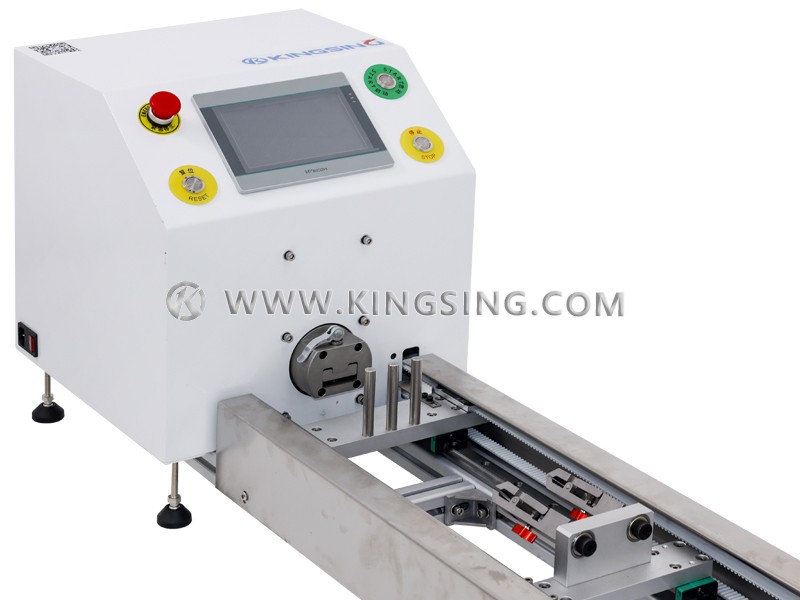

The KS-A23B is an excellent machine which is especially designed for twisting cables. It is controlled by servo motor. When it works, the motor will make the conveyor belt which installed within the track transport circularly. The machine can handle the cables whose length are several meters efficiently. Besides, it is equipped with a control panel which make it easily for operators to debug the machine and modify the parameters.1767746974657089.jpg

Machine Features

Easy to operate: The structure of the machine is clear and easy to operate. Even if the user has not received professional training, they can still get started quickly.

Easy to maintain: The structure of the machine is clear and it almost remain no fragments after processing, which makes it easily for operators to maintain the machine.

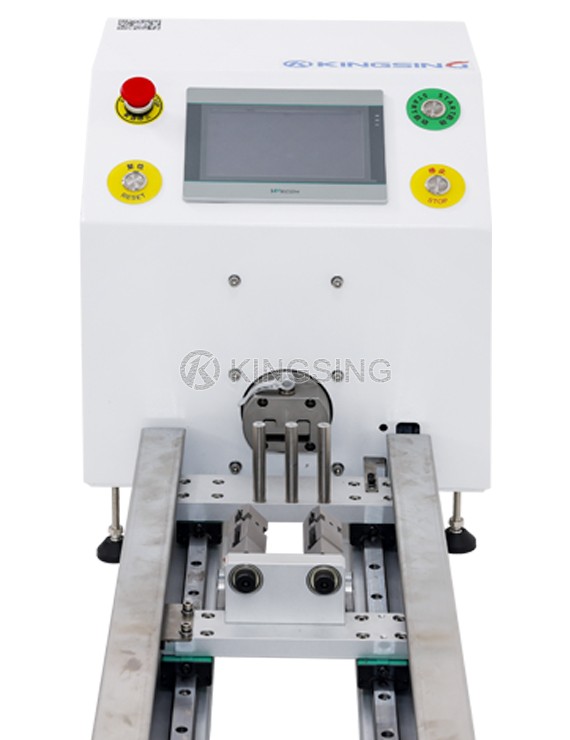

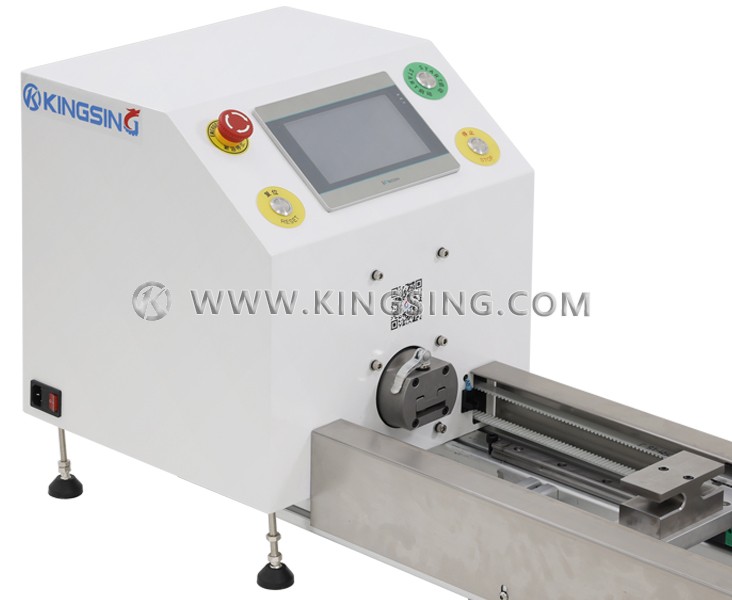

Control Panel: Many product parameters can be modified through the control panel which provides great convenience to the operator.

High Efficiency: The machine can process several hundreds of products with high quality.

Safety and Stable: The body shell and track of the machine is made of rigid metal so that it has a high defense capability to withstand most external attacks.

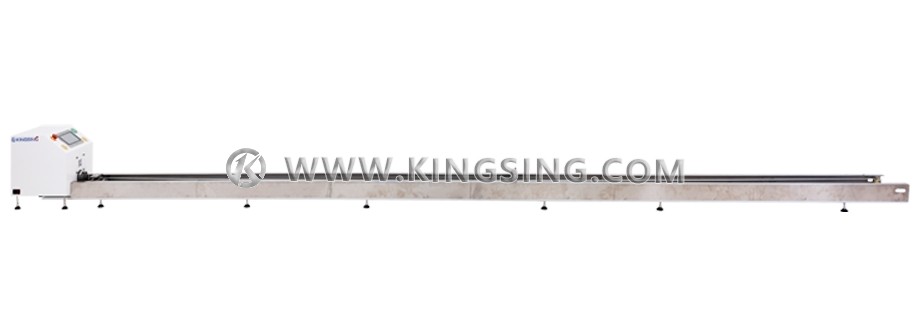

Wide Processing Range: The machine can twist wires with a large length because of the long track equipped to the machine.

Motor drive: The machine is driven by motor and it does not need air source; the operator only needs to connect it to the right power supply before start it.


Download: (1) (2)

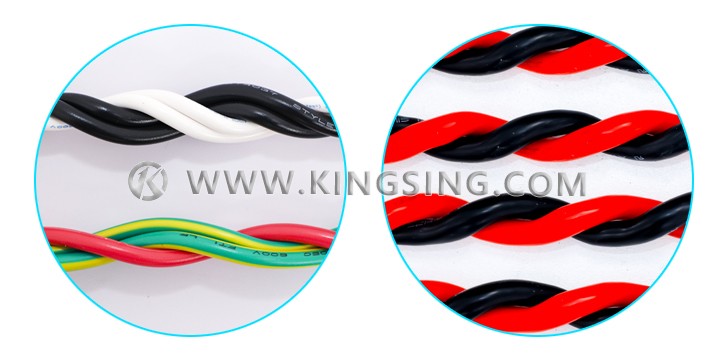

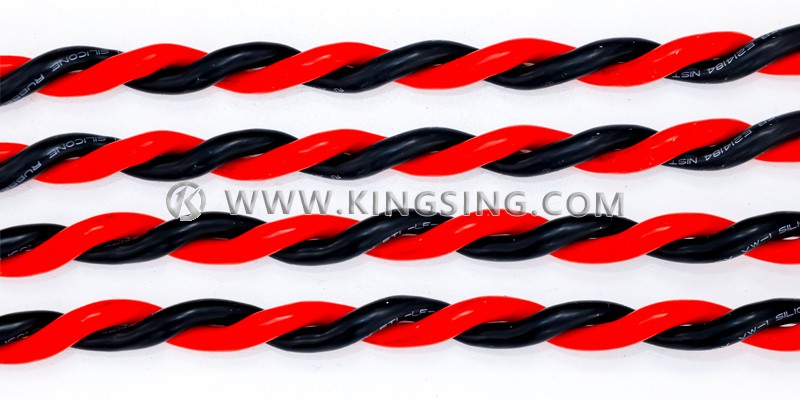

Cable Fixture: 2 Cables twisted

Available Cable Diameter: Total size≤50sqmm

Twisting Length: <5m

Twisting Direction: Clockwise/Anticlockwise

Display Mode: 5 Inch color screen

Motor Type: Servo Motor

Power Rating: 1.2KW

Power Supply: 220V 50/60Hz

Efficiency: 100~200 PCS/hour(Depend on the cable length and the operator's proficiency.)

Net Weight: 180 kg

Diameter: 500×400×580 mm (H×W×L)


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
