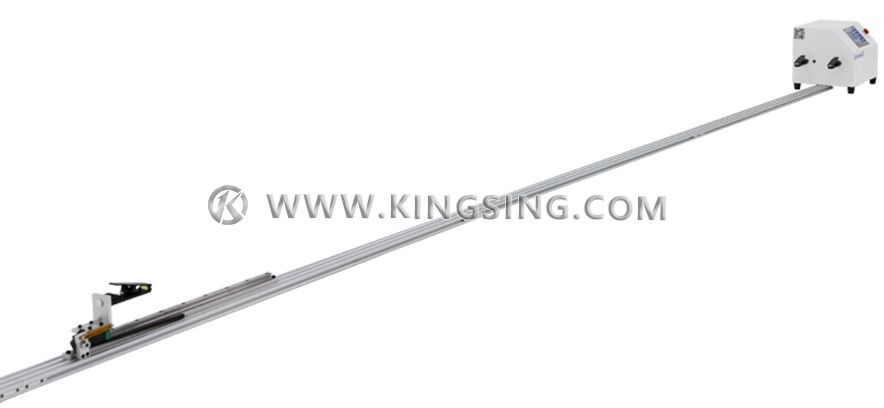

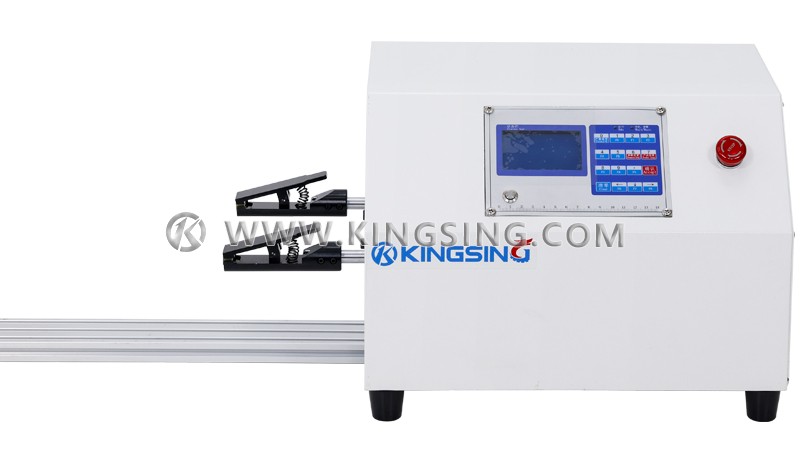

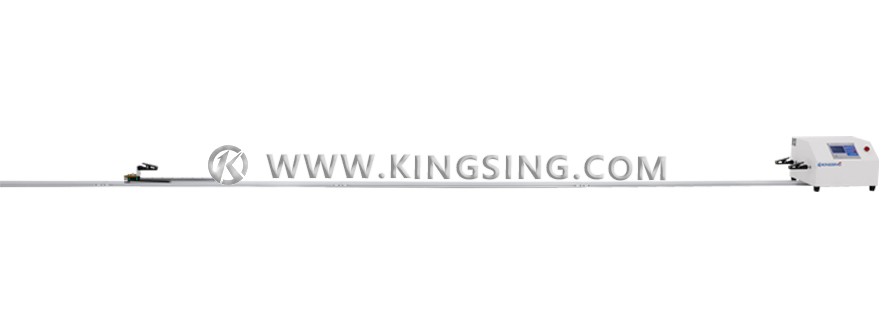

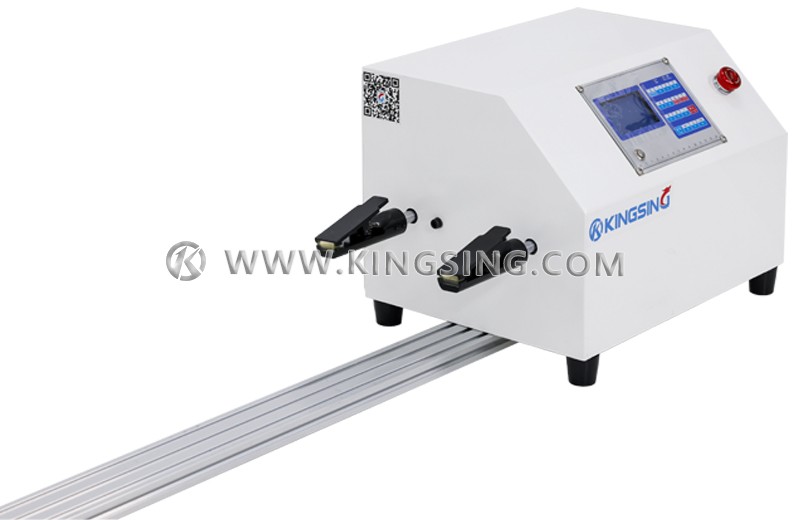

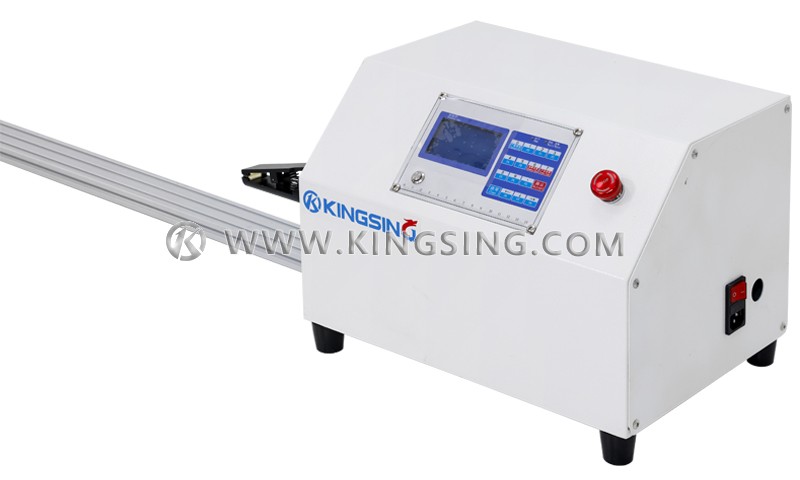

Semi-automatic twisting machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry
Download: (1)

Minimum AWG: 22 AWG

Maximum AWG: 8 AWG

Minimum wire/cable outer diameter: 1.5 mm

Maximum cable outer diameter: 8.0 mm

Minimum twisting length: 500 mm

Maximum twisting length: 5000 mm

Minimum spacing length: According to wire

Maximum pitch length: According to wire

Terminal length: 200 mm

Machine accuracy: According to wire

Rotation speed: 50-600 RPM

Voltage: 220V

Weight: 26 kg (excluding runway)

Dimensions (W×H×D): 62×30×28 cm (L×W×H)

Output single operation: 45 Pcs/H (3010 mm)


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
