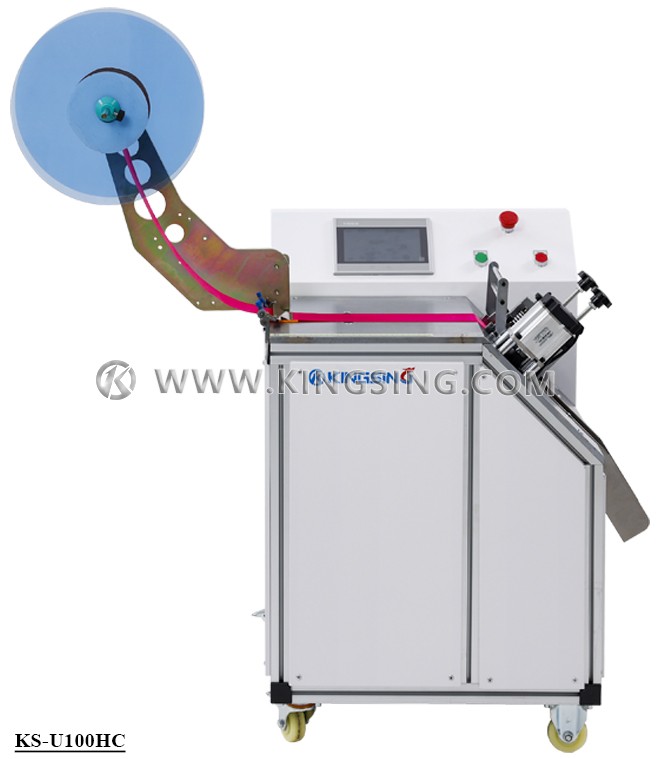

Ultrasonic Tape Cutting Machine

  • Model:KS-U100H
  • Max. Width:
  • Blade Type:Ultrasonic
  • Net. Weight:
  • Dimension:

This is a high speed ultrasonic tape cutting machine, which is suitable for cutting thin webbing and ribbons. The cutting blade is engraved on the roller and supports a variety of incision shapes, such as straight cut, beveled, dovetail, rounded, etc. Different shapes need to change the mold, we can customize the cutting shaft according to your requirements.

The feeding wheel is driven by a high-speed servo motor, and the special cutting method greatly shortens the cutting time, so it can achieve extremely high speed, and can produce about 200,000 finished products per day.

Example 1Example 2
Example 3Example 4
Example 5Example 6
Example 7Example 8

Download: (1) (2)

Blade width: 115mm

Power supply: 500W

Net weight: 101Kg

Dimension: 770*630*950mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
