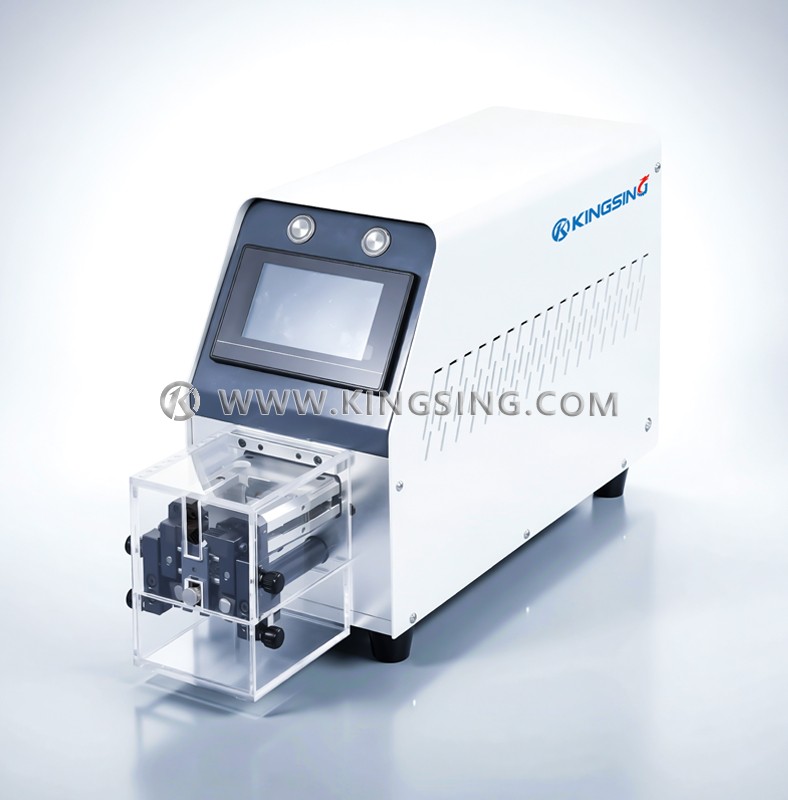

1. The intelligent precision wire cutting machine is equipped with a user-friendly touch screen for simple setup and testing.
2. The knife tip position can be precisely adjusted in height, and the cutting method is customizable and flexible.
3. The machine supports various processing modes for different types of guiding wires, including half-cut, full-cut, dual-layer cut, and short cut.
4. The design incorporates a 90-degree entrance to ensure compatibility and strength for various guiding wires without requiring tool changes.
5. Both clamping and cutting slots utilize a flat moving principle to maintain consistent height during the processing of different wire diameters.
Display Mode: 4.3-inch Touch Screen
Available Wire Size Range: AWG6-AWG30 (0.04-16mm²)
Wire Stripping Length Range: 0.1-40mm
Minimum Stripping Depth: 0.05mm
Maximum Stripping Layers: 5
Machine Starting Methods: Foot Pedal / Push Rod Activation/ Manual Start
Drive Mode: Stepper Motor
Output : 1800-2000pcs/hour
Power Supply: AC220V 50/60HZ
Power Rating: 300W
Net Weight: 20KG
Dimension: 520*170*300mm
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
