Vertical Automatic Bundling Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

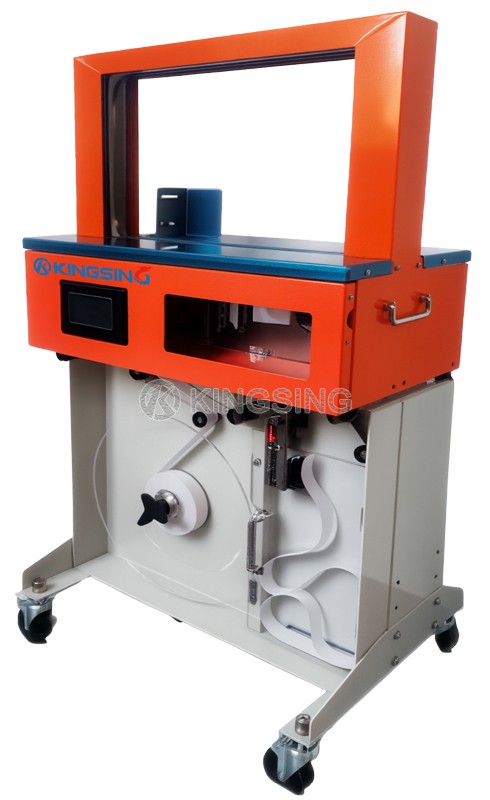

  1. The machine has a freely movable pulley base and adopts a square heightened belt frame (width 470*height 305mm), which solves the trouble of using the machine to change positions and tie without moving the machine back and forth. It is suitable for large and small enterprises and individuals. This model can tie fabrics, printed materials, cartons, bamboo products, food, wood, hardware and other products within the size range of the belt frame. It has the characteristics of adjustable tightening force, fast tying speed and high efficiency. At the same time, two centimeters and three centimeters of cable tie width are optional, and paper tape and film tape are universal.

  2. This machine is different from other models of desktop cable tie machines. It can accommodate 500-1000 meters of large reel cable ties, which can effectively save the time of changing tapes and improve work efficiency. It has a built-in hand-touch electronic display screen for simple operation, low failure rate, easy maintenance, and adjustable packaging force to achieve the purpose of tight bundling. It can tie in various forms such as single-character, I-shaped, cross, and well-shaped.


Frame size: 473*305 (mm)

Bundling size: max. 470*300mm/min. 30*30mm

Bundling force: 10-50N

Bundling method: induction bundling and pedal bundling in one

Voltage frequency: 220V 50/60HZ

Bundle material: paper tape/multi-layer composite film tape (universal)

Bundle width: 20mm/30mm (not universal)

Bundling speed: 30 times/min

Power rating: 250W

Power type: electric

Net weight: machine 44kg; base 40kg

Packing size: machine 690*410*730mm; base 680*500*820mm

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
