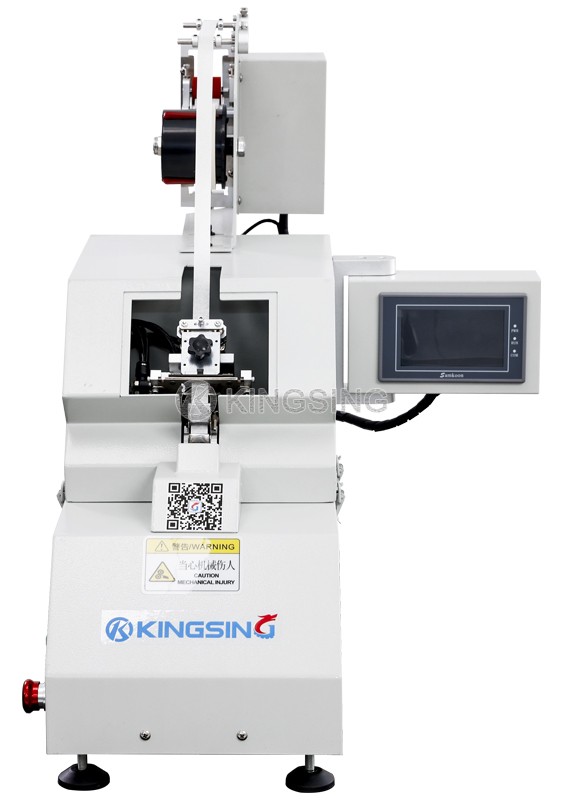

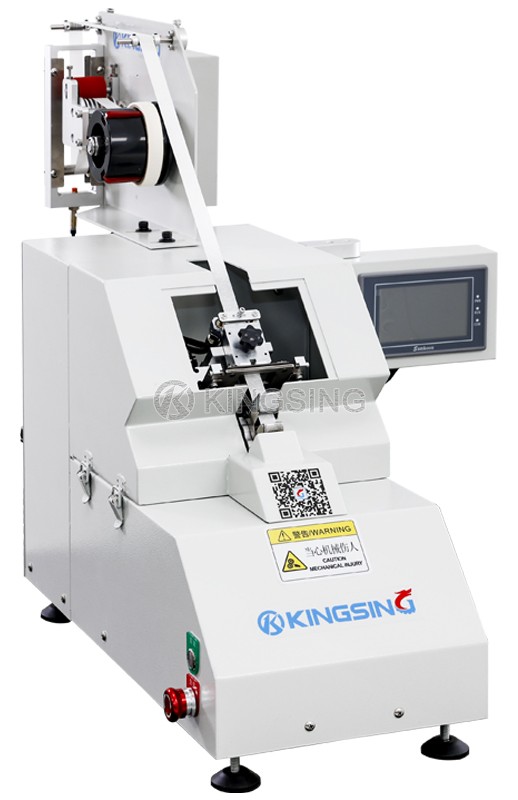

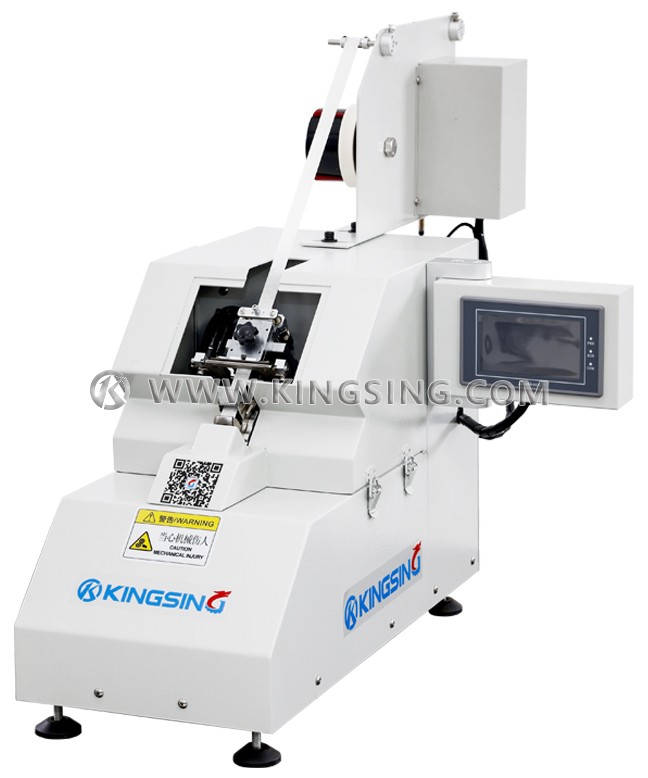

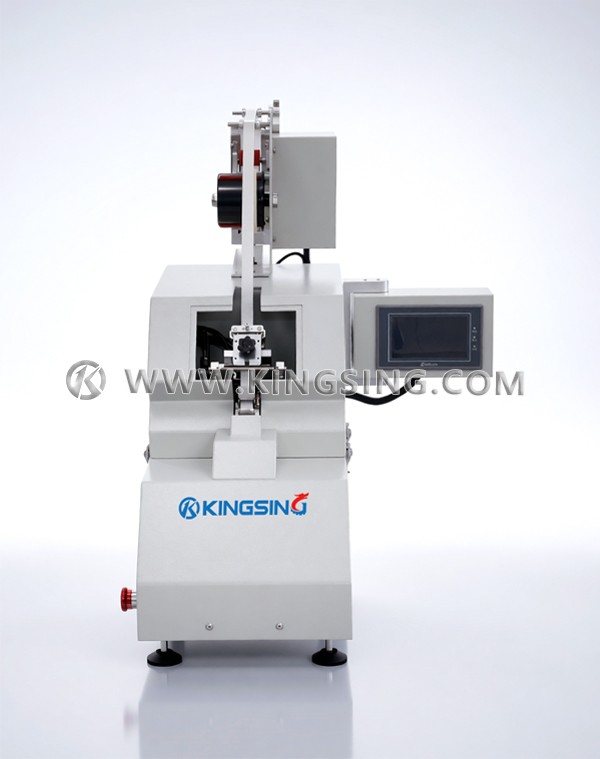

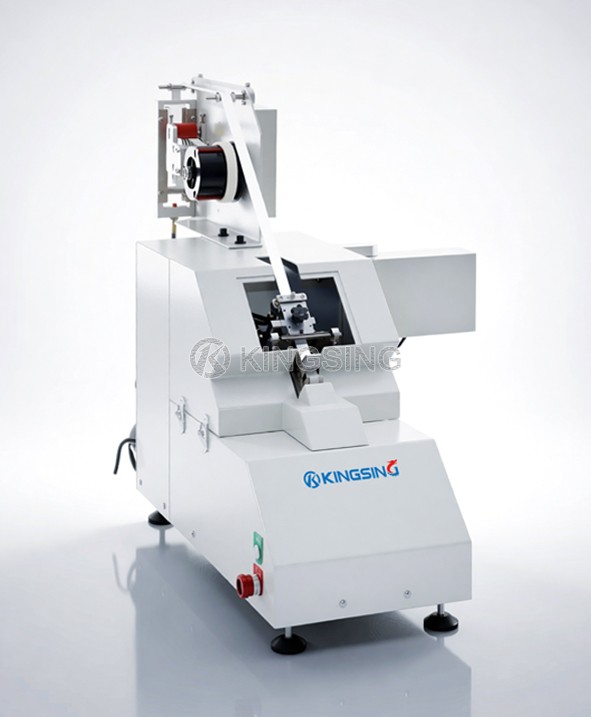

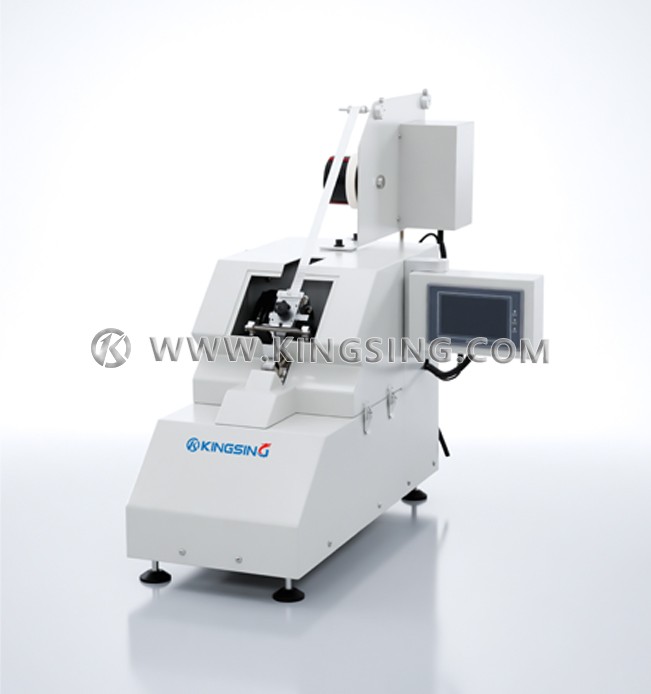

Fully Automatic Spot Tape Wrapping Machine

  • Model：KS-A467 Series
  • Net. Weight：
  • Dimension：
Online Inquiry

Function:

  • Automated Operation: Enables the machine to automatically complete the tape wrapping process without manual intervention, enhancing production efficiency.

  • Multiple Activation Methods: Typically equipped with foot switch and optical fiber sensing activation methods for convenient operation and control.

  • Programmable Settings: Supports user customization of wrapping parameters based on different products and processing needs.

Applicable Range:

  • Widely suitable for the electronics, packaging, logistics, and automotive industries.

  • Compatible with various tape materials, including Mylar tape, masking tape, and high-temperature tape.


Download: (1)
ModelKS-A467BKS-A467CKS-A467D
Running Rhythm2 to 3 seconds2 to 3 seconds2 to 3 seconds
Tape Width Applicable Range20mm (special products require customization)20mm (special products require customization)20mm (special products require customization)
Tape Material RangeMaximum outer diameter of 130mmMaximum outer diameter of 130mmMaximum outer diameter of 130mm
Startup MethodFoot pedal or fiber optic sensingFoot pedal and fiber optic sensingFoot pedal and fiber optic sensing
Tape Material CompatibilityMylar tape, masking tape, wall-protecting tape, electrical tape, high-temperature tape, acetate tape, clear tape, etc.Mylar tape, masking tape, wall-protecting tape, electrical tape, high-temperature tape, acetate tape, clear tape, etc.Mylar tape, masking tape, wall-protecting tape, electrical tape, high-temperature tape, acetate tape, clear tape, etc.
Tape Cutting Length30mm and 75mm30mm to 95mm60mm to 150mm
Tape Winding Product Module Diameter2mm to 10mm5mm to 20mm10mm to 30mm
Rated Voltage220 volts220 volts220 volts
Rated Power450 watts450 watts 450 watts
Dimensions77cm x 35cm x 60cm77cm x 35cm x 62cm80cm x 35cm x 70cm

Weigh

Approximately 29kgApproximately 30kg

Approximately 35kg



Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
