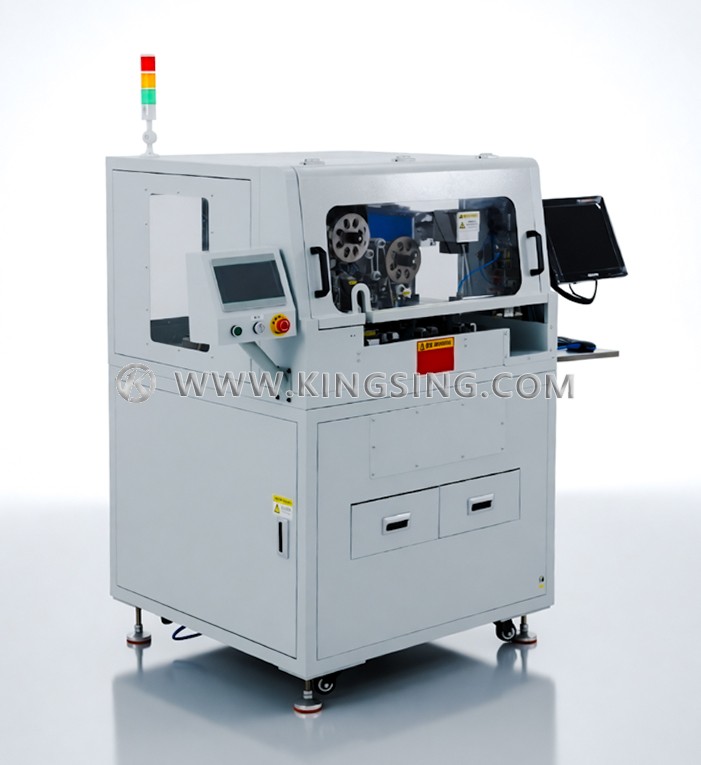

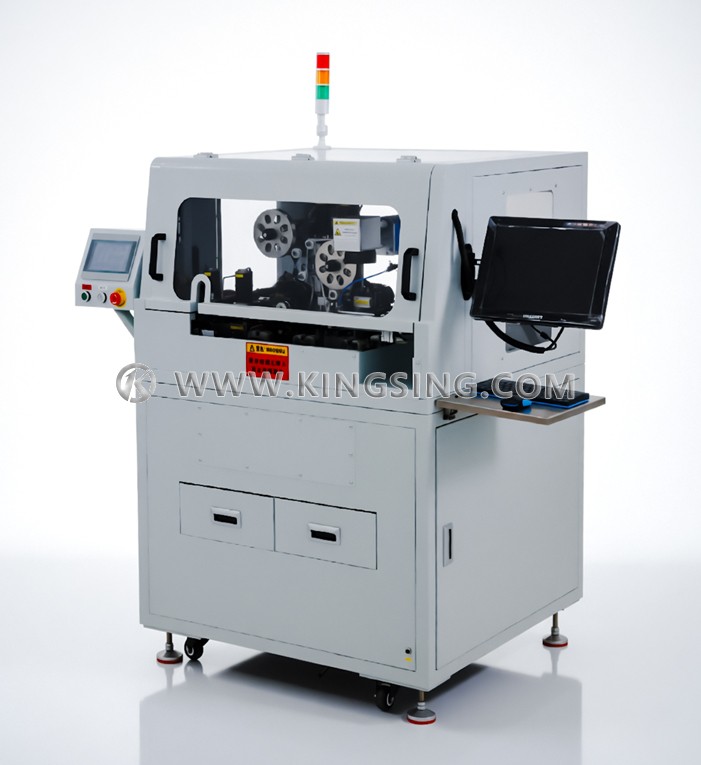

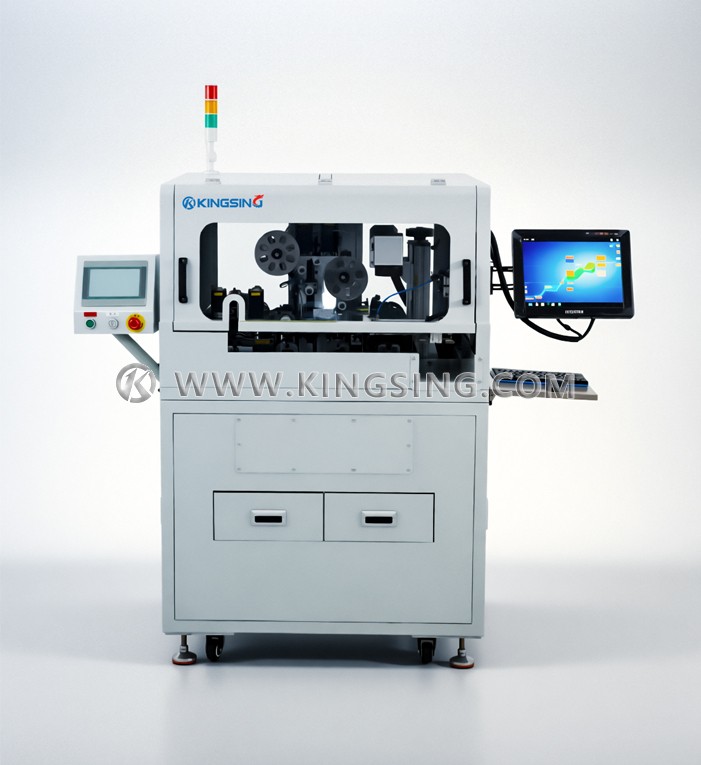

The Shield Combing and Copper Foil Wrapping Machine is a specialized automated equipment designed for cable and wire harness processing, primarily used in the manufacturing of high-performance cables, communication cables, automotive wire harnesses, and similar products.
Main Functions:
Shield Combing: Organizes and straightens the braided shield layer on the cable exterior, removing tangled and crossed metal wires to ensure the shield layer is neatly aligned and orderly.

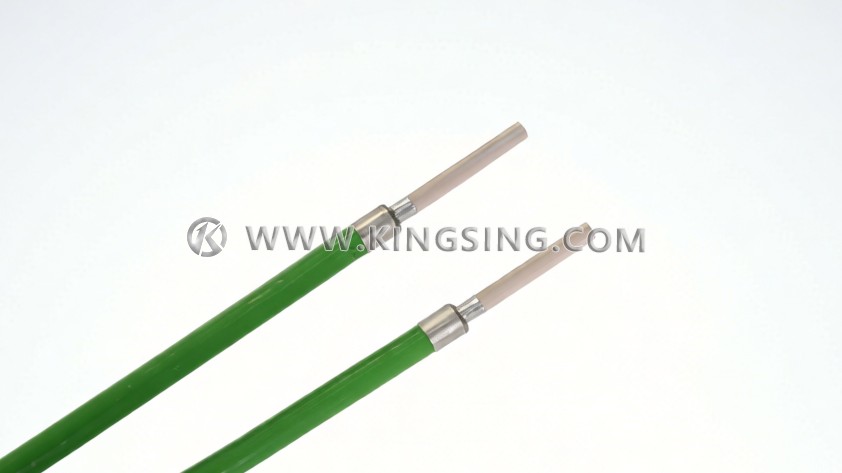

Copper Foil Wrapping: Precisely wraps copper foil tape around the combed shield layer, forming a uniform and tight shielding protection layer that enhances the cable's anti-interference performance and mechanical strength.
Core Advantages:
High degree of automation, reducing manual operation and improving production efficiency
High processing precision, ensuring consistency in shield layer and copper foil wrapping
Suitable for processing various cable specifications
Effectively enhances product electromagnetic shielding performance and reliability
Typical Application Fields:
Automotive high-voltage wire harnesses
Communication data cables
Industrial control cables
New energy charging cables
This equipment is an indispensable key asset in modern cable manufacturing processes, providing reliable technical support for the large-scale production of high-quality shielded cables.
| Parameter | Specification |
|---|---|
| Applicable Wire OD Diameter Range | 2.5mm to 8mm (8-9.5mm requires modified accessories) |
| Shield Retention Length Range | 5mm to 20mm |
| Shield Positive/Reverse Brush Length Control | 3mm to 35mm (35-120mm requires customization) |
| Brush Spacing Fine Adjustment Control | 8mm to 18mm |
| Laser Source | Chuangxin 30W Laser / Jiate High-Speed Galvo Scanner / Lingyi Integrated Laser Controller |
| Single Station Efficiency (Brushing/Cutting) | 3.5 s |
| Single Station Efficiency (Copper Foil Wrapping) | 3.0 s |
| Single Station Efficiency (Laser Cutting Aluminum Foil) | 6.0 s |
| Overall Equipment Efficiency (Cycle Time) | 3.5s — 6s |
| Overall Equipment Efficiency (Capacity) | 600 ~ 1000 pcs/hour (single head) |
| Program Storage Capacity | > 20 groups |
| Start Mode | Foot Switch |
| Equipment Appearance | Equipped with protective cover, universal caster wheels |
| Input Voltage | 200-240V / 50Hz |
| Air Pressure | 0.6 Mpa |
| Dimensions | L1605 × W1044.9 × H1691 (mm) |
| Machine Weight | 570 kg |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
