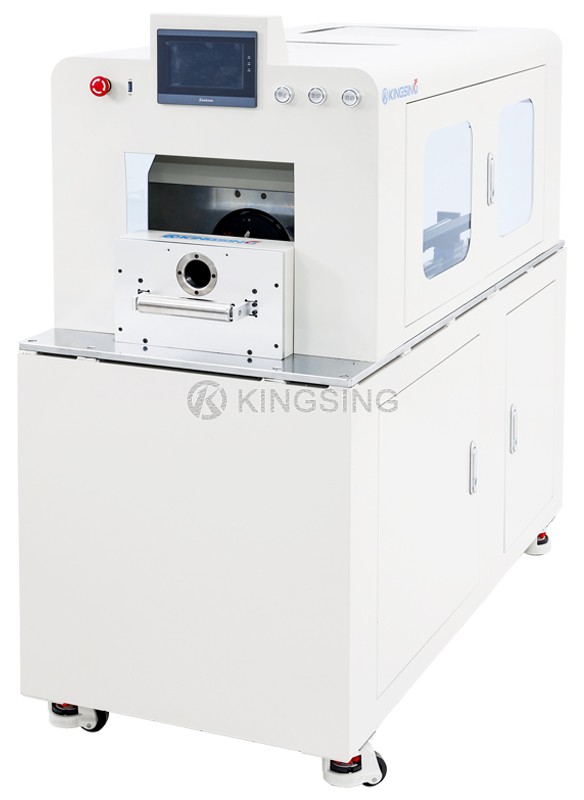

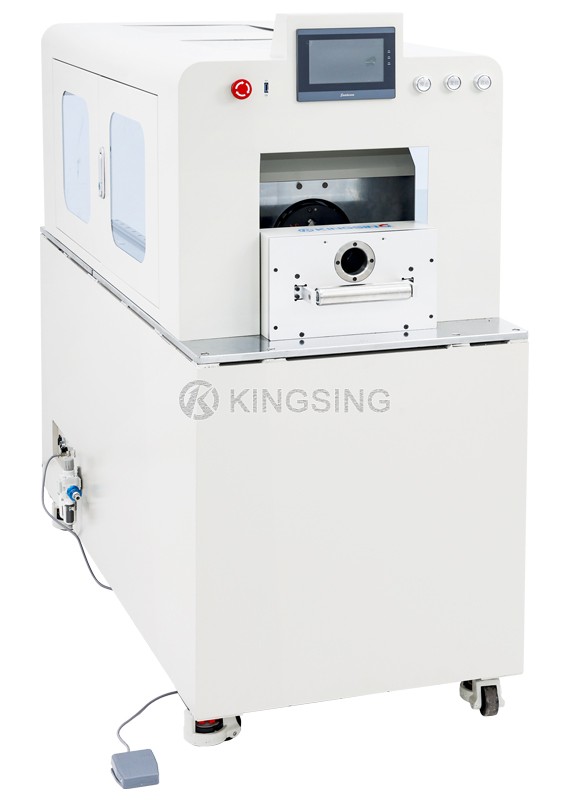

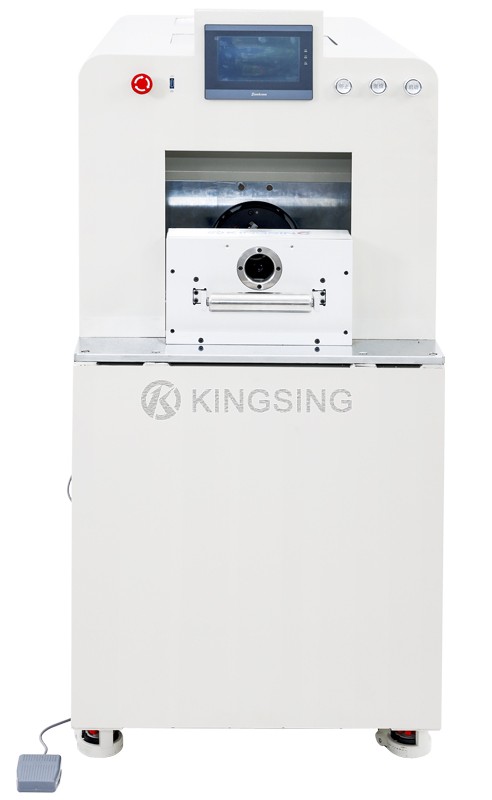

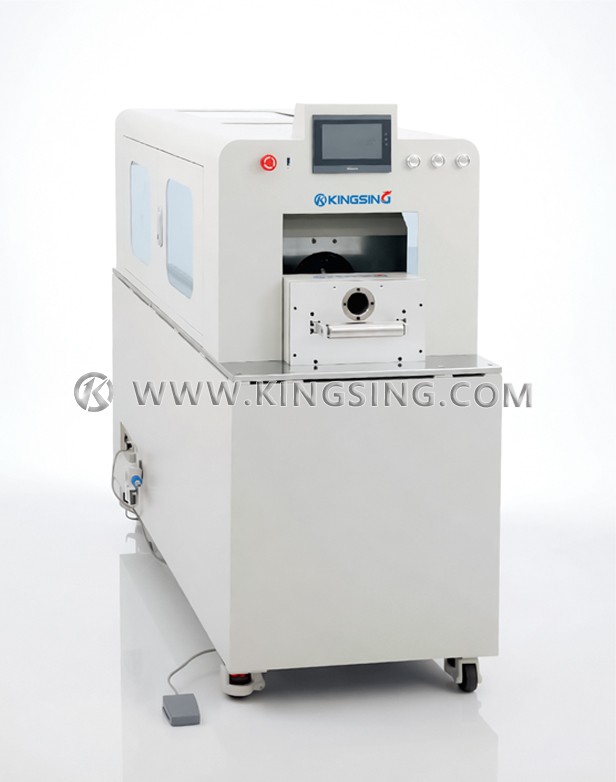

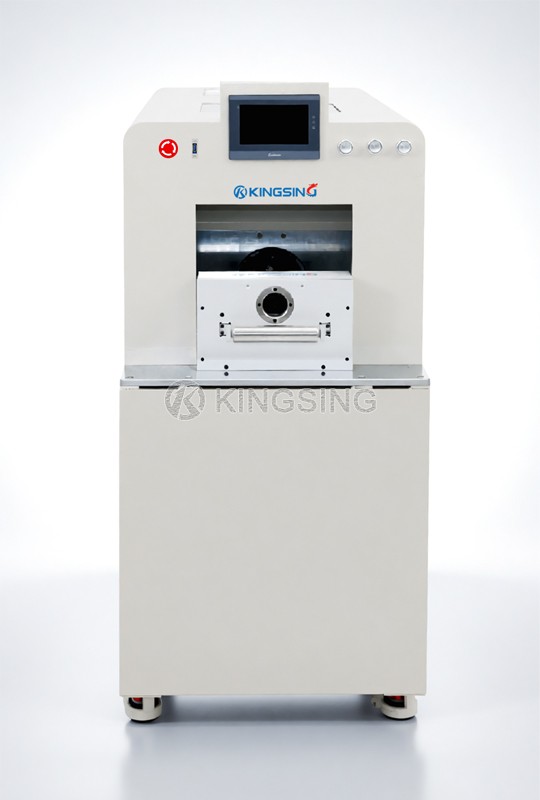

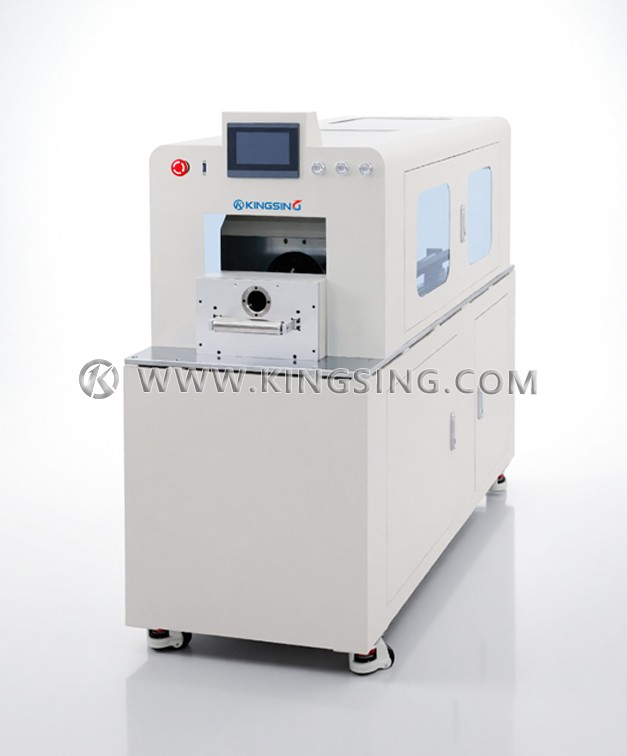

Heavy-duty Rotary Blade Cable Stripping Machine

  • Model：KS-W6652
  • Net. Weight：
  • Dimension：
Online Inquiry

Engineered for premium stripping of extra-thick cables like EV charging gun wires, this system delivers precise 1-meter stripping (customizable for longer lengths). It produces clean-cut cable ends without core damage, guaranteeing flawless aesthetics and compliance with stringent production standards.

Download: (1)

Max. Processing Diameter: 10mm~45mm (customizable)

Max. Stripping Length: 0~1000mm.

Cutting Depth Unit: 0.01mm.

Stripping layers: 2 layers

Blades: 4 imported high-speed steel blades

Storage Capacity: 100 cable processing data sets.

Cutting Method: Four-blade rotation.

Clamping Method: Servo motor-driven, with adjustable clamping force

Productivity: 200-400 pieces/hour (depending on cable type and length)

Air Pressure: 0.5Pa

Power Supply: AC220V 50/60HZ

Power Rating: 3KW

Net Weight: 380kg

Dimensions: 1680×680×1300mm.
