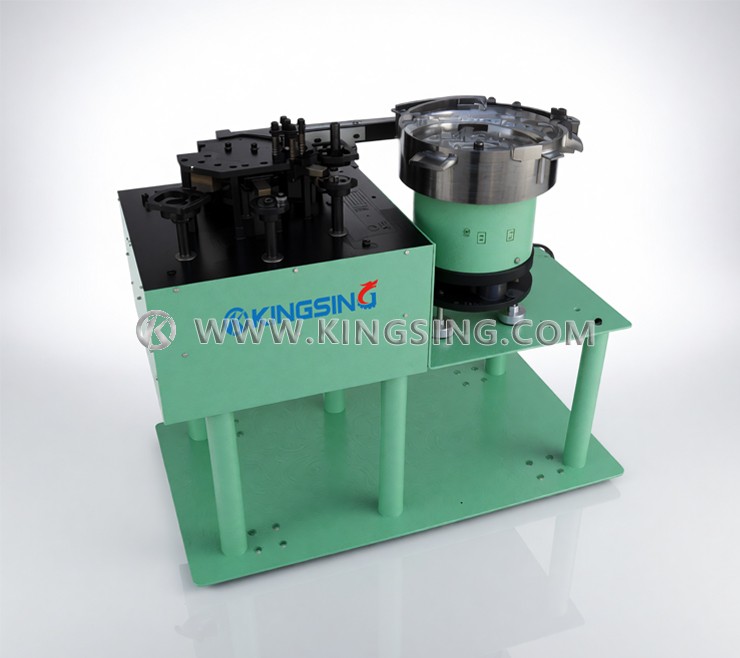

The LED lead cutting and forming machine provides a safe and affordable means for basic cutting and bending of radial LED leads,it adopts a vibration plate to feed components automatically, it places minimal mechanical stress or axial tension on the component.The machine’s sturdy construction provides maximum reliability and long life.
1. It is suitable for cutting and bending loose Capacitor, Transistor, LED, etc.
2. KS-F160 is adopted linear vibration feeding system. It is suitable for different sizes components.
3. Use special cutting method: the cutting blade is made by Japanese imported material SKD-11. Adopt vacuum hardening treatment HRC600,
with high hardness, rich toughness, durable service, and easy adjustment and operation.
4. The controller is made of Japanese electronic components, with long lifespan. It can feed material very smoothly.
5. High cutting accuracy, the minimum cutting length is 3mm.
Capacity: 5000-7000 pcs/hour
Power Rating: 200W
Feeding Mode: Vibration Plate Feeding Mode
Available Material: Capacitor, Transistor, LED, etc.
Function: Cutting and forming
Power Supply: AC220V 50Hz
Operation Temperature: 0～40℃
Environment Humidity: 30%～80%RH (No condensation at 40℃)
Net Weight: 65KG
Dimension(L×W×H) : Main machine: 610×420×460mm Vibration disk: 420×420×420mm
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
