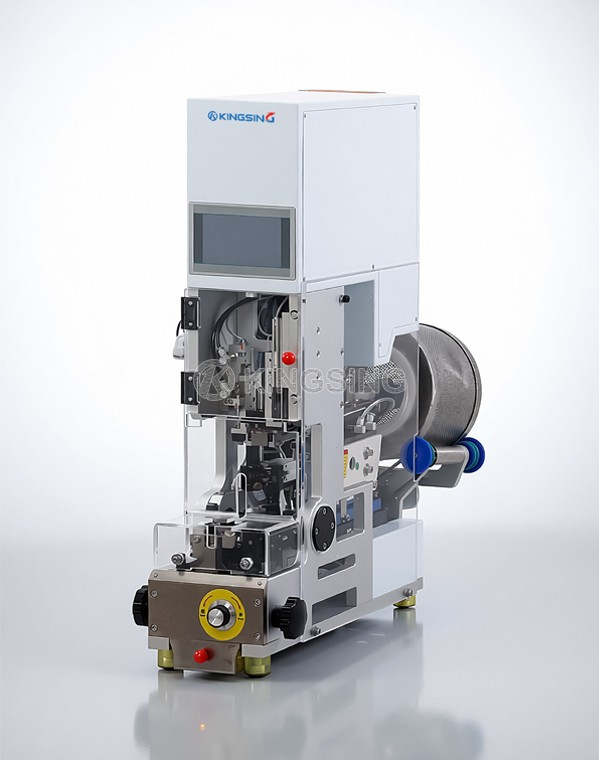

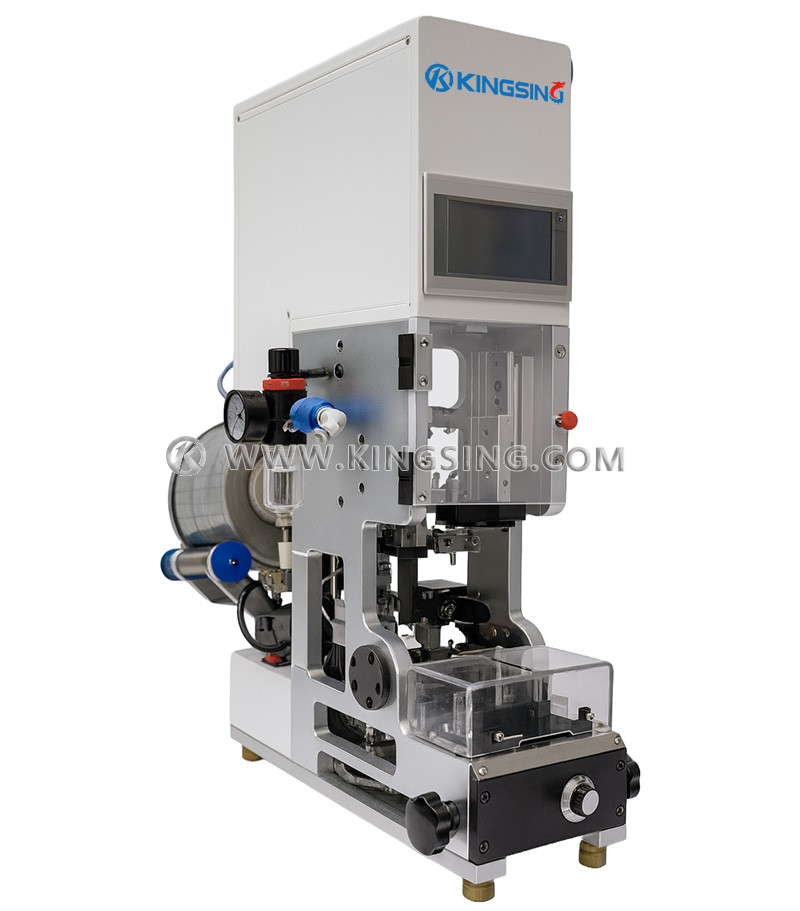

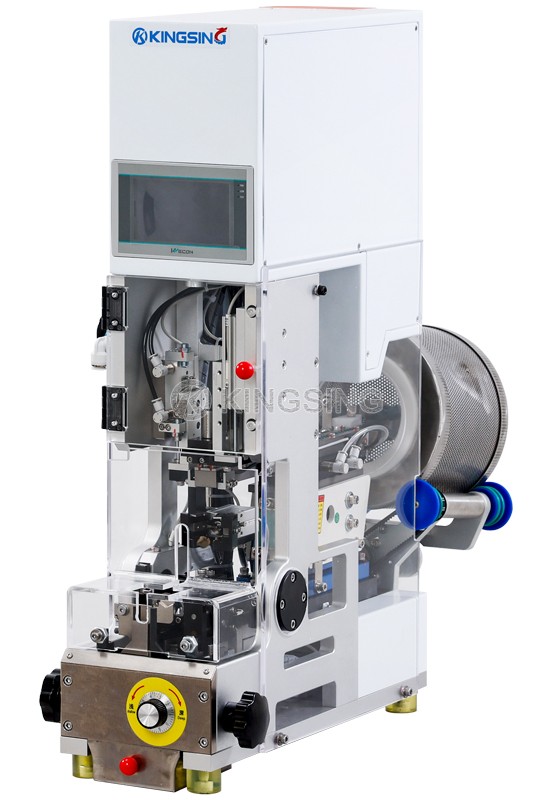

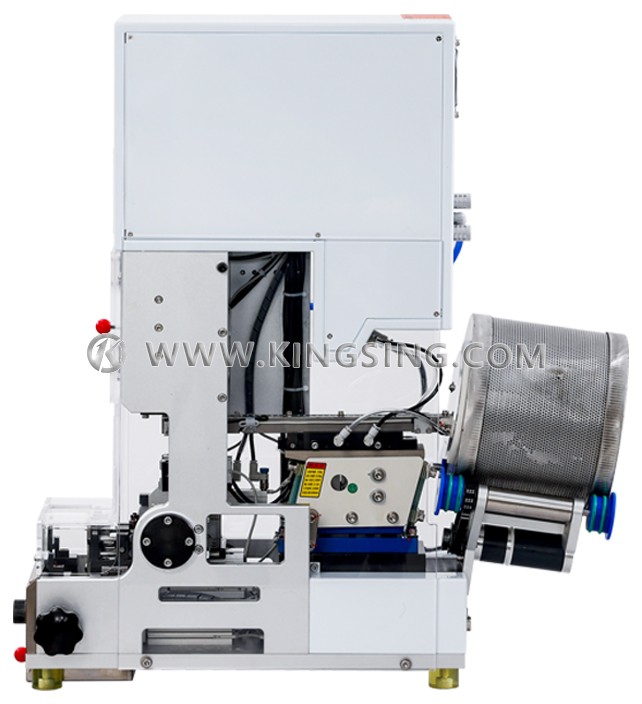

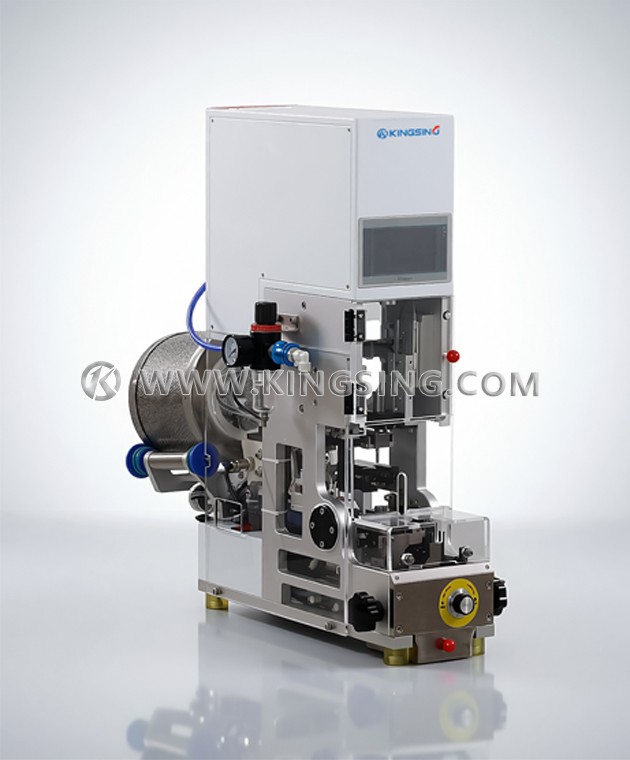

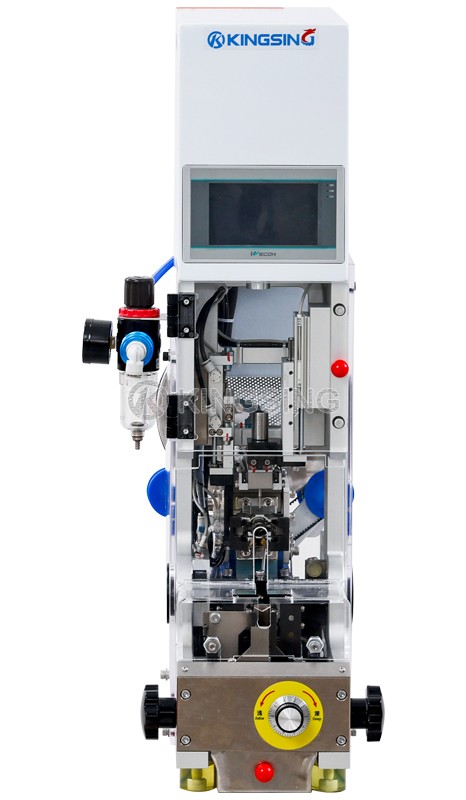

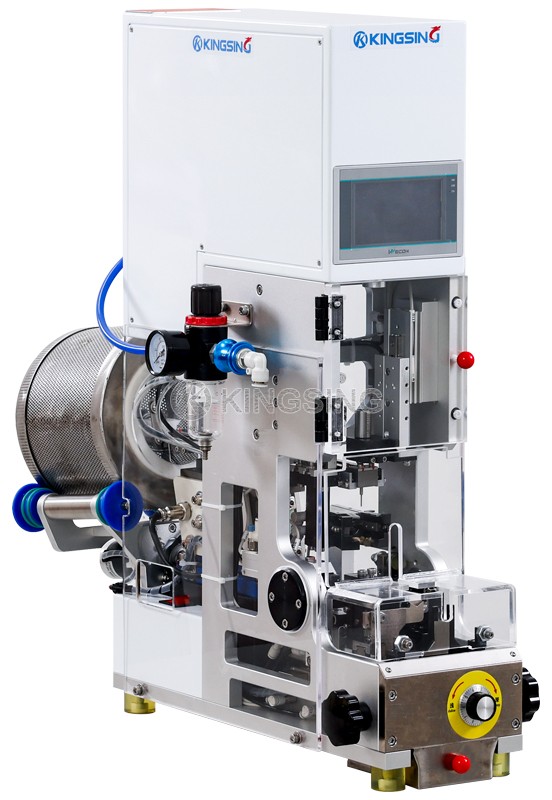

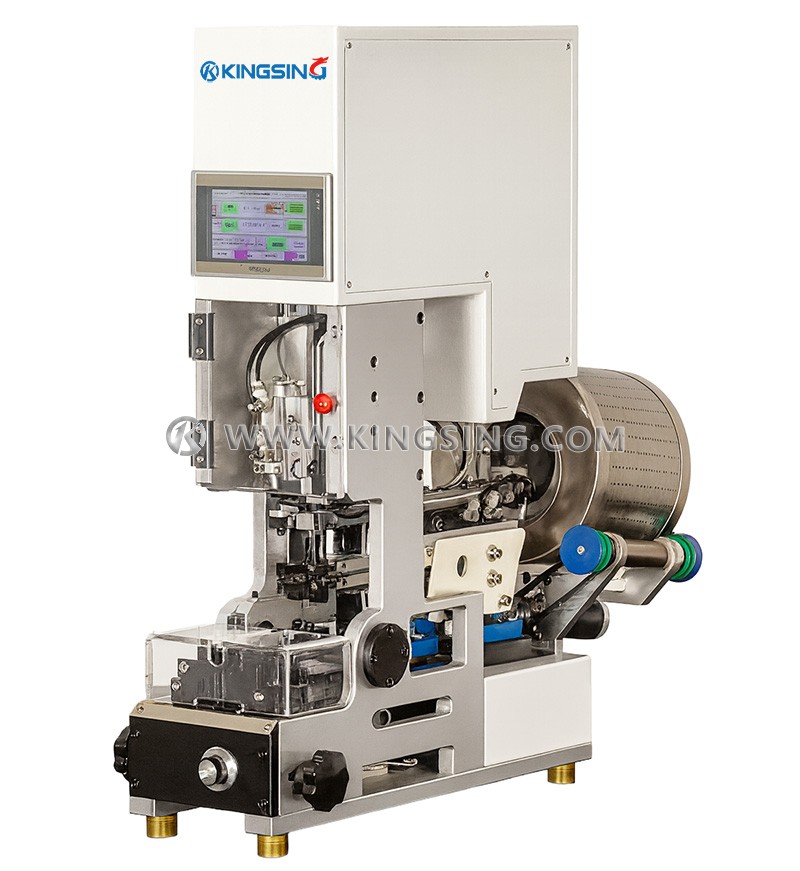

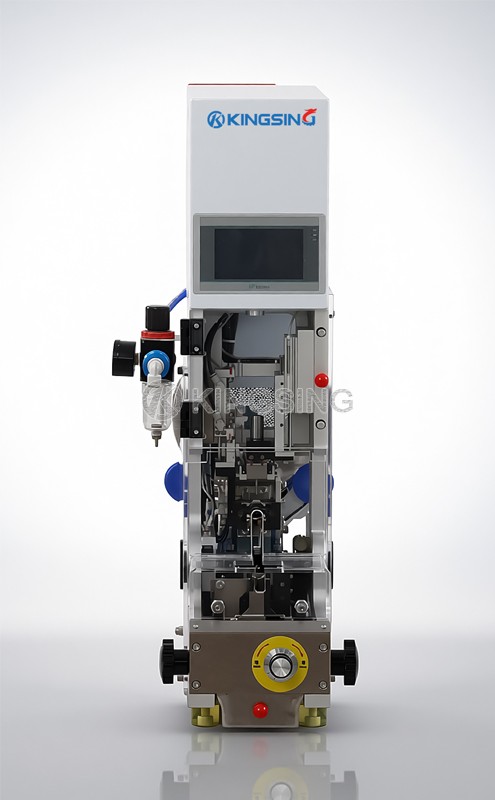

This semi-automatic waterproof plug insertion machine is a specialized device designed to enhance the efficiency of waterproof seal installation for stripped wires. It automates the process of feeding, positioning, and inserting waterproof plugs, significantly reducing manual labor and ensuring uniformity in depth and quality. By optimizing the seal insertion process, this machine is an ideal solution for industries requiring high production throughput and consistent quality standards.
One of the standout features of this machine is its ability to automatically feed the waterproof seals into the correct positioning for insertion. Operators simply need to place the stripped wire into the designated position and activate the machine via a foot switch. This ease of operation minimizes operational errors and ensures high consistency for each seal installation.
Additionally, the machine is versatile enough to handle waterproof seals of varying dimensions. Users can easily replace the guiding track to accommodate different seal sizes, making it a customizable and flexible solution to meet diverse production requirements. Its compact structure and robust construction also make it suitable for workshops with limited space or heavy-duty operation demands.
Perfect for cable assembly lines, automotive wiring, and electronics manufacturing, this machine delivers exceptional performance by maintaining high-speed operation and impeccable precision—all while improving production efficiency and reducing costs.
| Waterproof Seal Size | Max. Ø13×14mm (Outer Diameter × Length) |
| Air Source | 0.5–0.6 MPa |
| Adjustment Range | 10 mm |
| Operating Speed | 60 cycles/min |
| Power Supply | AC 220 V / 50 Hz (customizable) |
| Motor Power | 24 V DC – 50 W |
| Weight | Approx. 36 kg |
| Dimensions | 200 mm (W) × 600 mm (L) × 630 mm (H) |
| Optional Configuration | Full enclosure safety guard, safety door with emergency stop function |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
