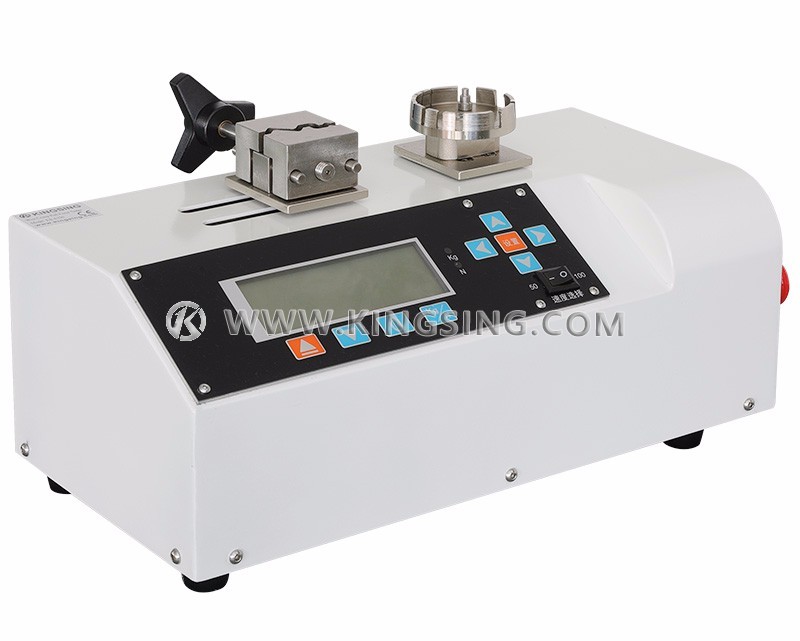

Motorized Wire Crimp Pull Tester

  • Model:KS-A530
  • Net. Weight:
  • Dimension:

The motorized wire crimp pull tester has 12 slots which accommodate various terminal sizes. Press the green button to automatically test a crimped on wire terminal. After the test is completed, the tester will automatically return to the starting position, the peak force is held on the display.

Download: (1)

Measuring Range: 0 ~ 1000N (0 ~ 100Kg)
Units of Measure: Newton (N), Kilogram (Kg)
Applied Force Accuracy: 0.2% of full scale
Pulling Speed: 50mm/min or 100 mm/min
Max. Stroke: 43mm
Power Supply: 220V 50/60Hz
Net. Weight: 7.5Kg
Dimension: 390×180×150mm
