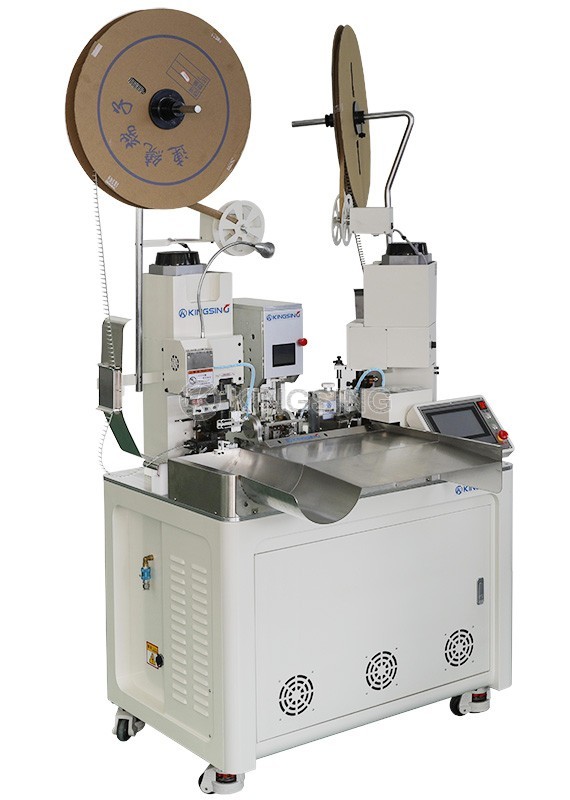

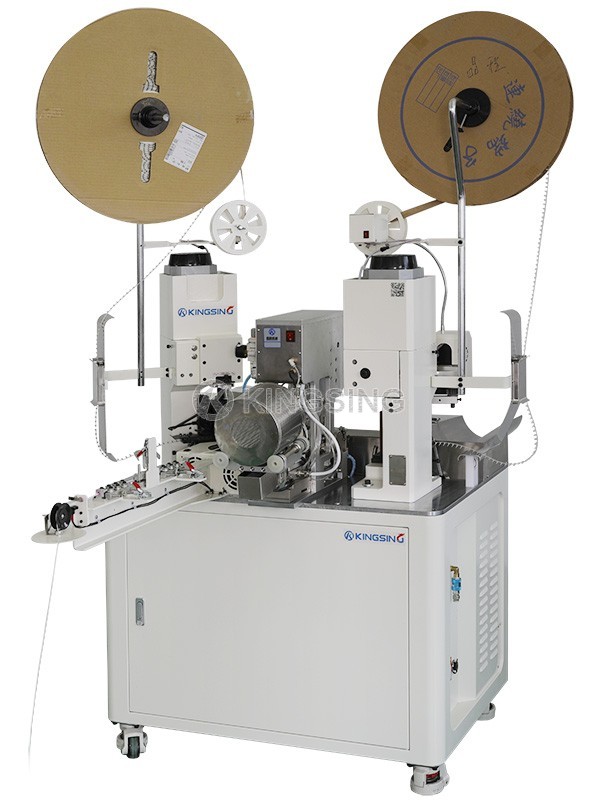

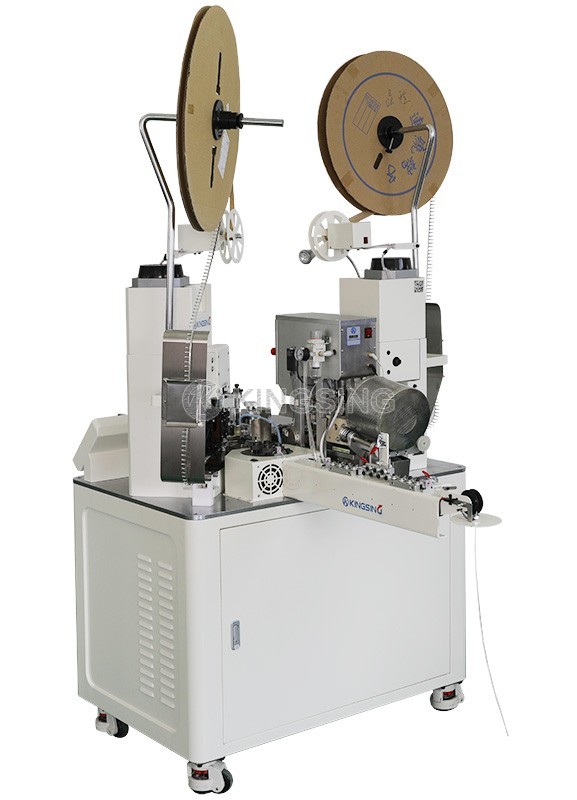

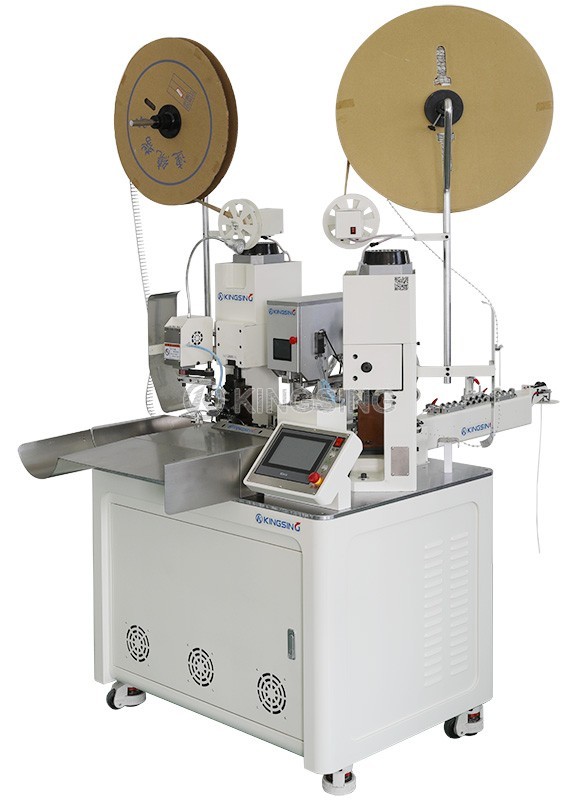

Fully Automatic Wire Cutting Stripping Crimping and Seal Loading Machine

  • Model：KS-T551
  • Net. Weight：
  • Dimension：
Online Inquiry

This is a fully automatic wire stripping crimping and sealing machine,

  • one end sealing and crimping,

  • another end only crimping terminal.

You can also close the sealing function in program if you only want to crimp terminal on both ends.

You can store your settings in different program files through touch screen.

Download: (1)

Function: cutting, stripping, sealing, crimping
Available Wire Gauge: AWG28 ~ AWG12
Cutting Length: 45 ~ 9999mm
Stripping Length: 0 ~ 10mm
Capacity: 3000~4500pcs/hour
Length Accuracy: ±(0.5+L*0.002)mm (L=total length)
Crimping Force: 2.0Ton
Applicators: 30mm or 40mm stroke for optional
Air Pressure: 0.4 ~ 0.6Mpa
Power Supply: 220V/110V 50/60Hz
Detectors: wire run out, low air pressure, terminate error. (Crimping force monitor is for optional)
Dimension: 700×800×1500mm
Net. Weight: 358Kg

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
