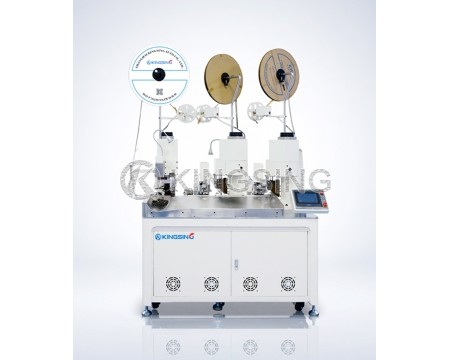

  4. Three Ends Two Wire Combined Crimping Machine
  5. Automatic Wire Stripping Tinning & Crimping Machine
  6. Automatic Two-sided Wire Stripping and Ferrule Crimping Machine
  7. Flat Ribbon Cable Stripping Crimping and Tin Soldering Machine
  8. Wire Harness Heat Shrink Tube Inserting and Heating Machine
  9. Heat Shrink Tubing Processing Equipment
  10. Heat Shrink Tube Processing Machine
  1. Home page
  2. Products
  3. Peripherals & Accessories
  4. Discontinued Product

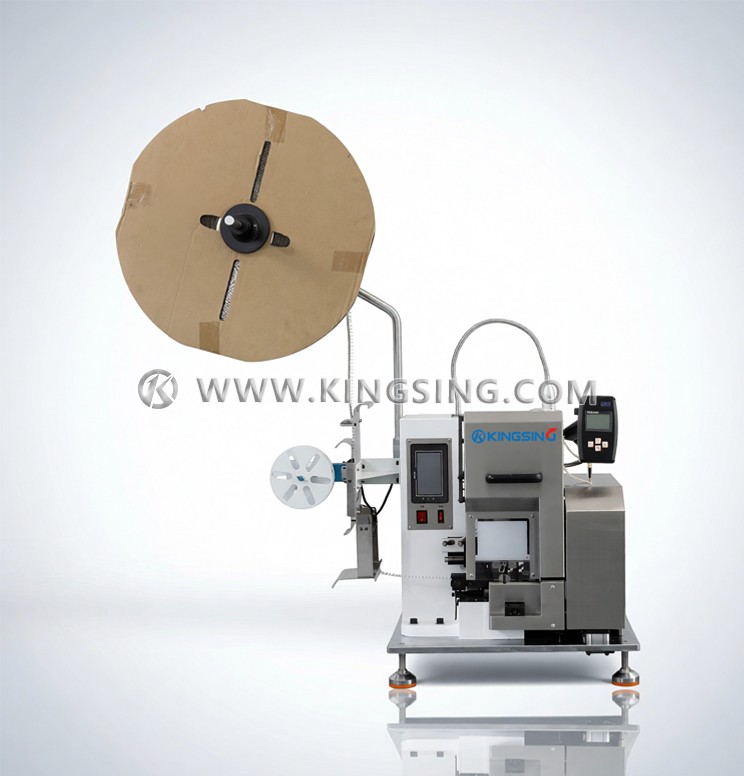

Multifunctional Wire Stripping and Crimping Machine

  • Model：KS-T9091
  • Net. Weight：
  • Dimension：
Online Inquiry

Multifunctional Wire Stripping and Crimping Machine KS-T9091 belongs to the latest series of crimping machine which combines

  • wire clipping, stripping, cutting and crimping machine.

Modularized structure design has this machine achieved convenient and simplistic adjustment.

Since entire machine is controlled by PLC, all the movements can be adjusted individually so as to debug this machine.

Moreover, the terminal crimping unit driven by servo motor can be applied to a wide variety of applicators, including JAM mold, TE mold, AMP mold, Yazaki mold, etc.


download: (1) (2)

Applicable Wire Diameter:AWG32#～AWG20#

Applicable Wire:AV、AVS、AVSS、CAVUS、KV、KIV、UL、IV Teflon, Fibre, etc

Stripping Length:1-6mm

Cutting Accuracy:0.05-0.1mm

Position Accuracy:0.05-0.1mm

Crimping Terminal:Open continuous terminal, Transversal mold

Crimping Capacity:2T

Crimping Stroke:30mm

Power Supply:Single-phase 200-240V 50-60HZ

Air Pressure:0.5-0.6Mpa

Weight:100Kg

Dimension:W730*L350*H700mm
