Pneumatic Cable Crimper

  • Model：KS-T801
  • Net. Weight：
  • Dimension：
Online Inquiry

This crimping machine is driven by dual-action cylinder, which has advantage of high efficiency and quality in both crimping force and speed. The machine is fit for crimping various kinds of terminals. The die sets are interchangeable with our manual crimping tools.



Operation steps

    KINGSING

    KINGSING

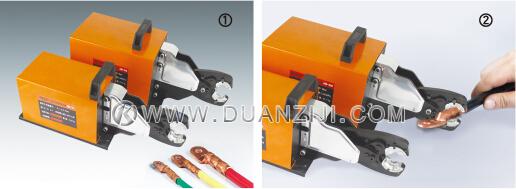

  1. Put the terminal in relevant die set.


  2. Put the stripped insulated conductor in o the terminal, and loose it after crimping.

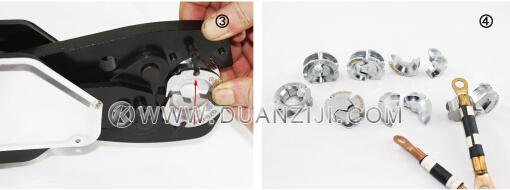

  3. Cut off air supply, loose the screws on the die set with the L spanner.


  4. Replace a suitable die set and tighten the screws.

Crimping Range: non-insulated terminals Max. 70mm², U-type terminals Max. 70mm²
Force: 2T
Air Pressure: 0.4-1Mpa
Dimension: 500x160x195mm
Weight: 14kg
