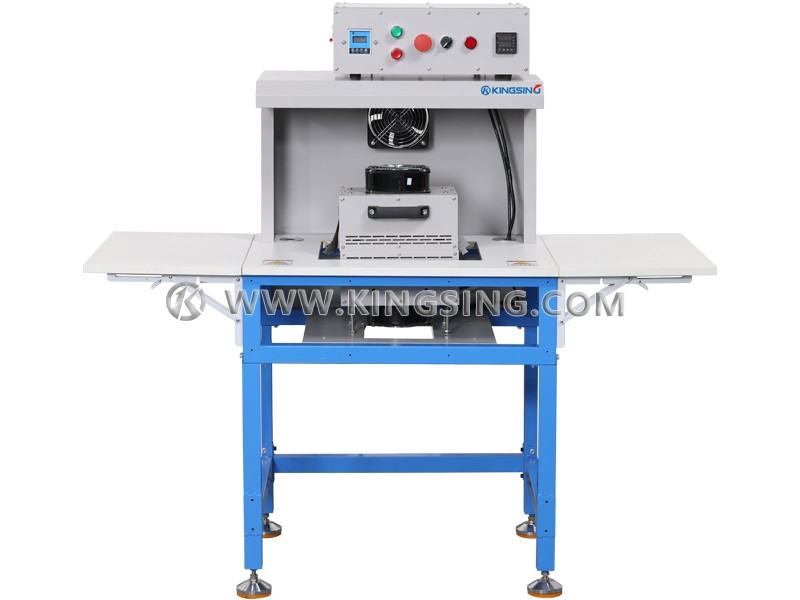

Heat Shrinkable Tube Heating Machine

  • Model:KS-H120S
  • Net. Weight:
  • Dimension:1800×860×1070mm
  1. This is an heat shrinkable tube heating machine, which is widely used in the wire harness processing industry. Its heating cavity is circular, and the infrared heating tubes are evenly distributed around the circle, so the heat shrink tubing can be heated in a 360-degree ring, and it is heated very evenly. It supports heating products with an outer diameter of up to 100mm, the temperature of the heating zone can be adjusted, and the rugged design allows it to work 24 hours a day!

    KINGSING
    KINGSING
  2. The cylindrical heating chamber can be opened quickly by hand, which is very useful when the heat shrink tube is in the middle of the wire, so that the operator can quickly put the position that needs to be heated into the heating chamber.

  3. In order to prolong the service life of the heating core, the machine is equipped with a shutdown and blowing delay function. After the machine stops working, the cooling system will continue to work for 1 minute, and then turn off the power.

  4. It is suitable for heating various types of heat-shrinkable tubes, such as: PE heat-shrinkable tubes, PVC heat-shrinkable tubes, double-walled heat-shrinkable tubes with glue, POF heat-shrinkable films, etc.

Download: (1)

Heating Chamber ID: 120mm

Heating Chamber Length: 130mm

Max. Temperature: 260℃

Max. Wire Diameter: Φ100mm

Infrared Heating Tubes: 300W×8 = 2400W

Power Rating: 2.8KW

Power Supply: 220V 50/60Hz

Net. Weight:

Dimension: 1400×570×1300mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
