Table-top Wire Flag Labeling Machine

  • Model:KS-L110F
  • Net. Weight:50kg
  • Dimension:670×640×500mm

This is a small table-top label half-folding and labeling machine, the operator only needs to put the wire into the fixture, then it can automatically complete the label folding and labeling. It's not only suitable for round wires, but also for parallel twin wires and pair twisted wires.

Color touch screen operation interface, all parameters are intuitive and easy to understand. Labels or wires of different sizes can share one machine. It can be equipped with optional label printer, so as to realize labeling while printing.

KINGSING

KINGSING
KINGSING
KINGSING
KINGSING


Download: (1) (2)

Availabel Wire Size: Φ1~10mm

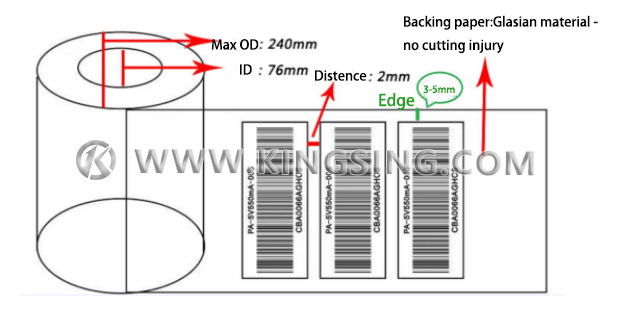

Label Width: 8~65mm (Can be customized)

Label Length: 40~165mm (Can be customized)

Max. Label Roll OD: 240mm

Accuracy: ±0.3mm

Power Rating: 750W

Power Supply: 220V 50/60Hz

Net. Weight: 50kg

Dimension: 670×640×500mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
