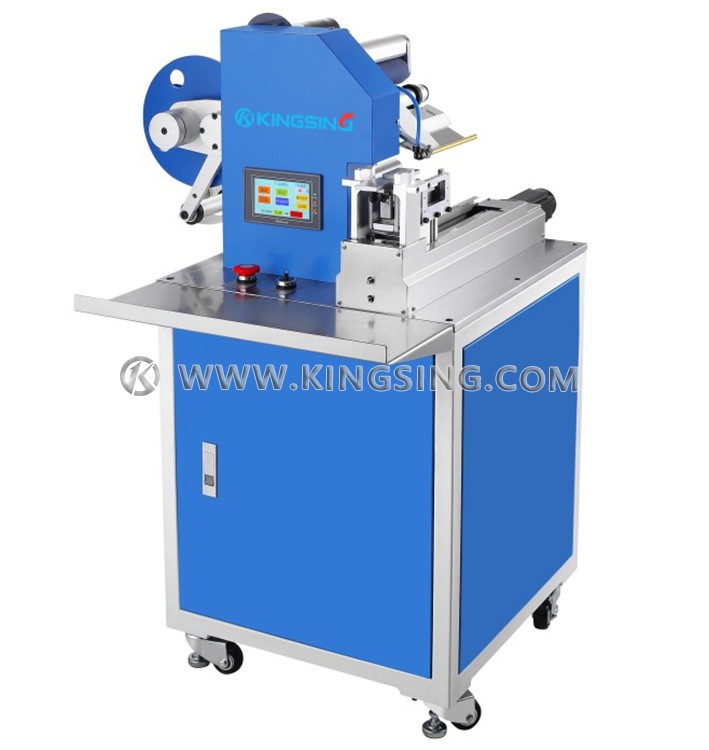

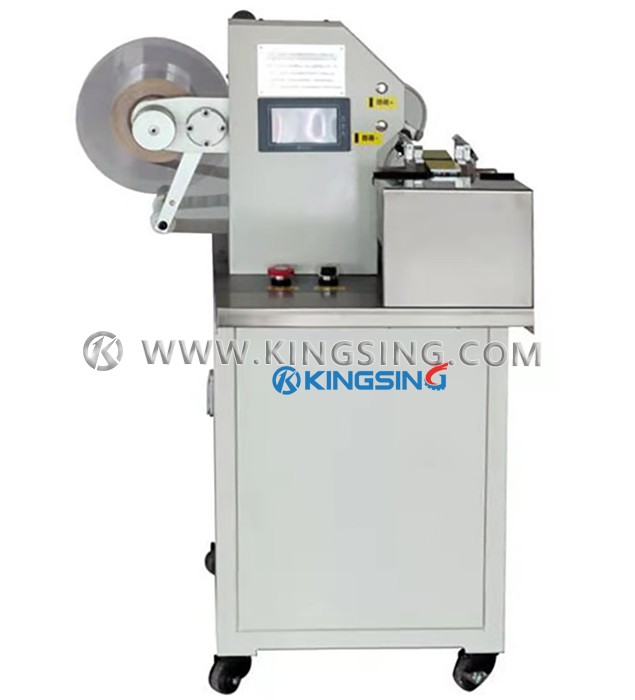

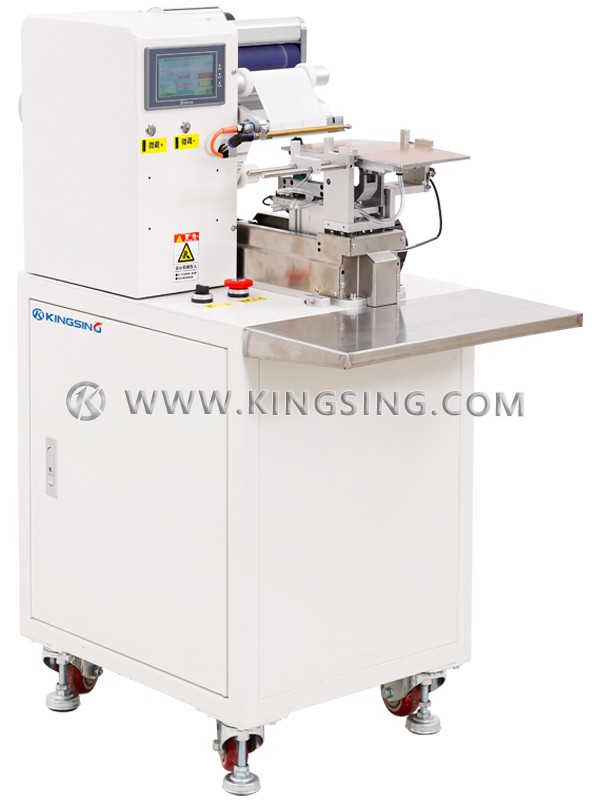

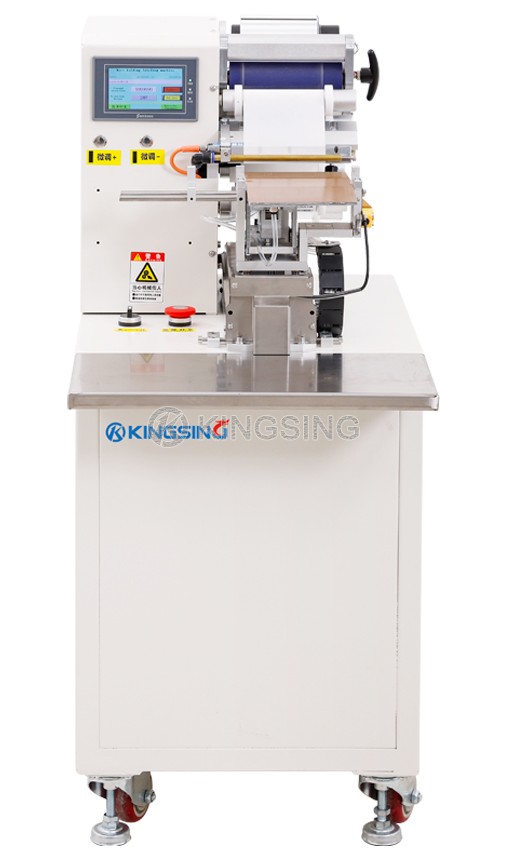

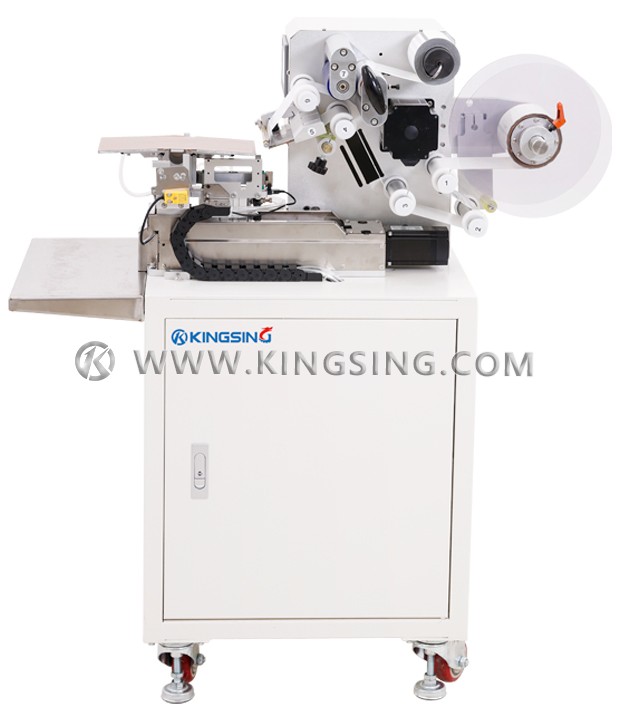

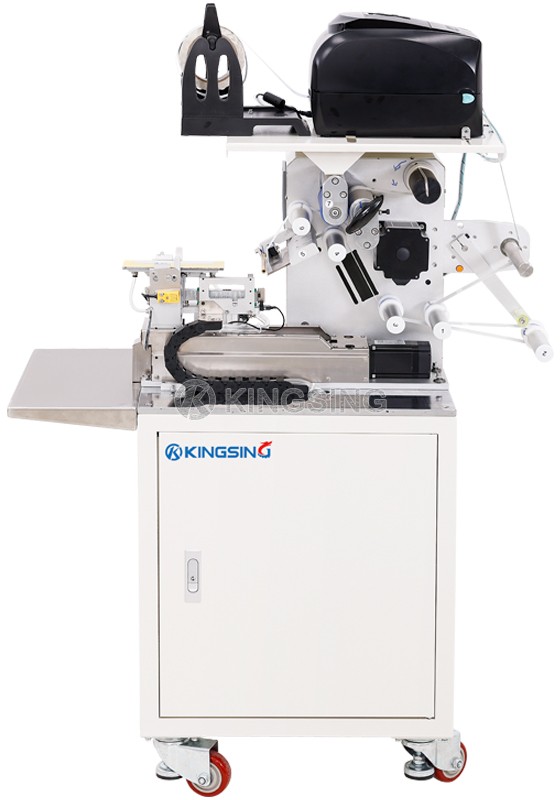

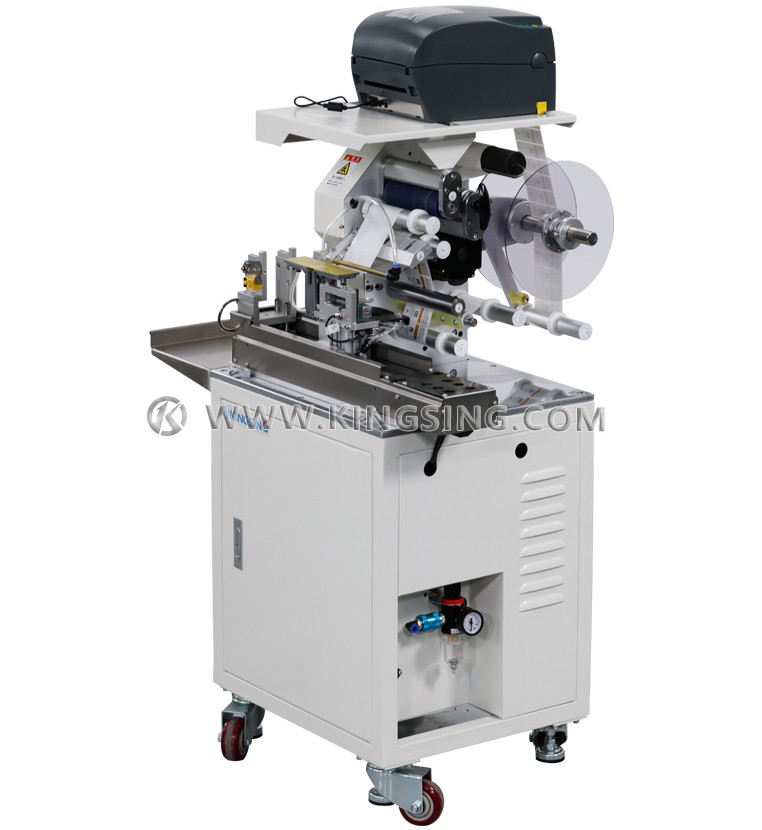

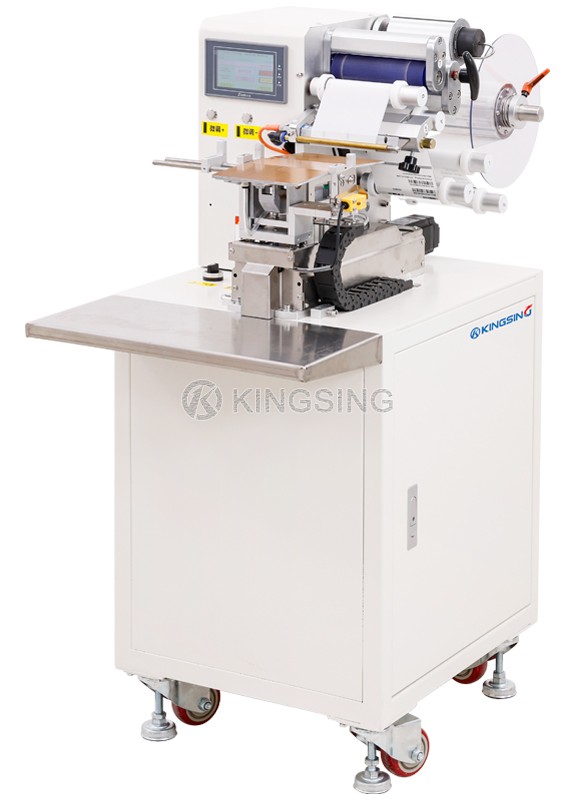

Wire Harness Flag Labeling Machine

  • Model:KS-L130F
  • Net. Weight:88kg
  • Dimension:600×700×1000mm

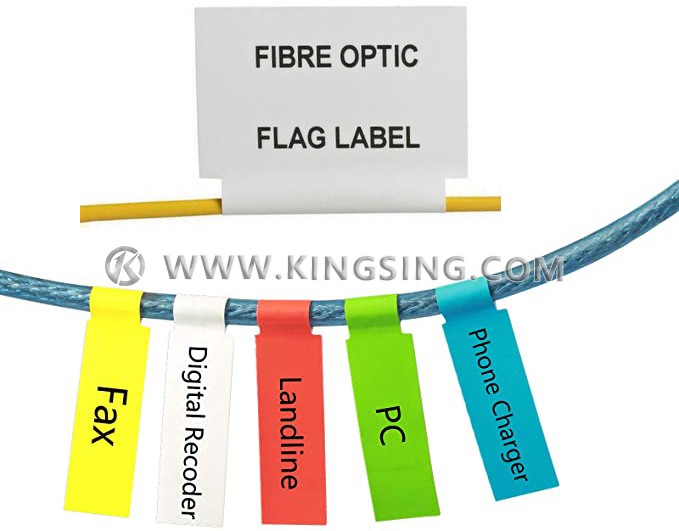

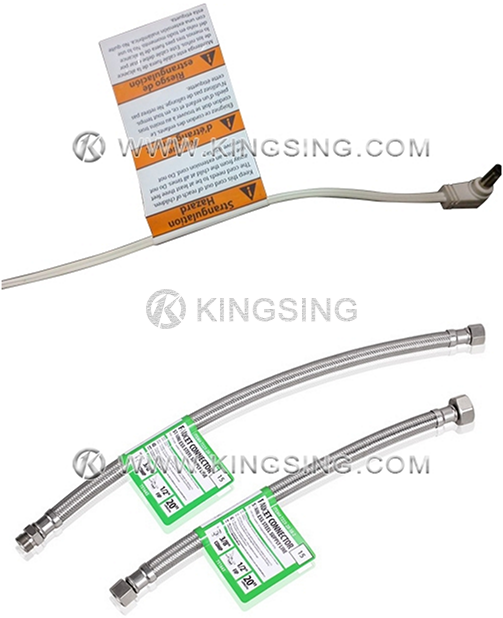

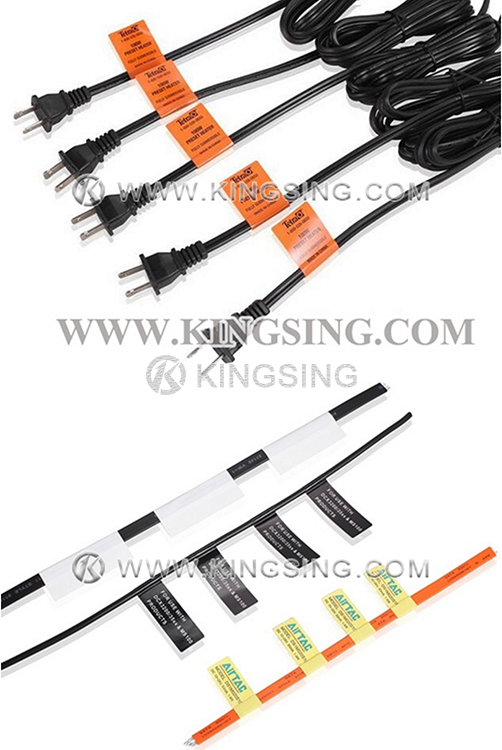

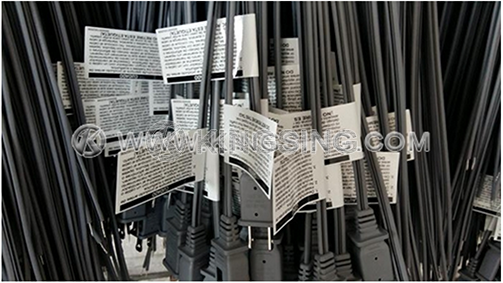

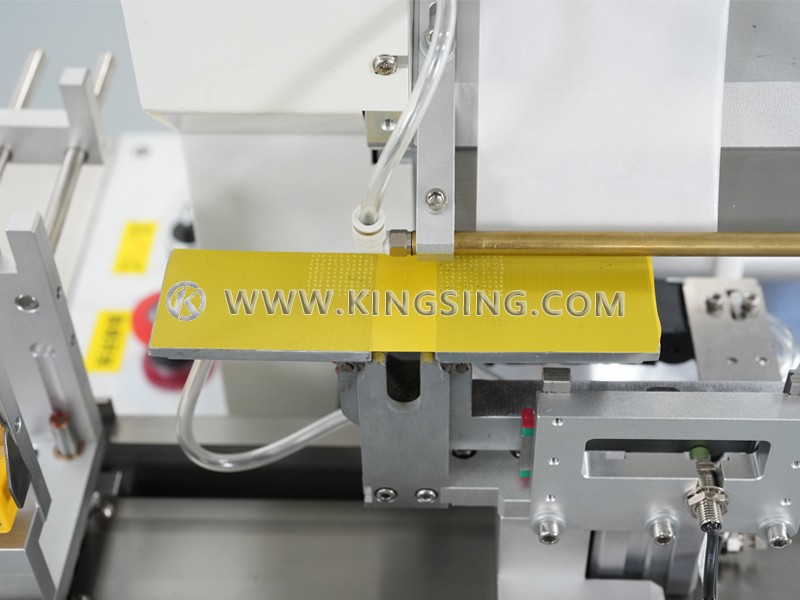

This is a wire harness half-folding labeling machine, the operator only needs to put the wire into the fixture, then it can automatically complete the label folding and labeling. This machine is not only suitable for round wires, but also for parallel twin wires and twisted pair wires.

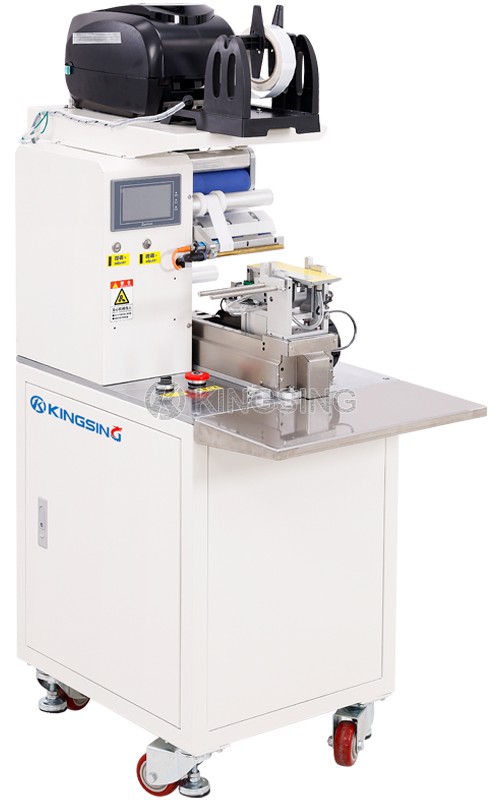

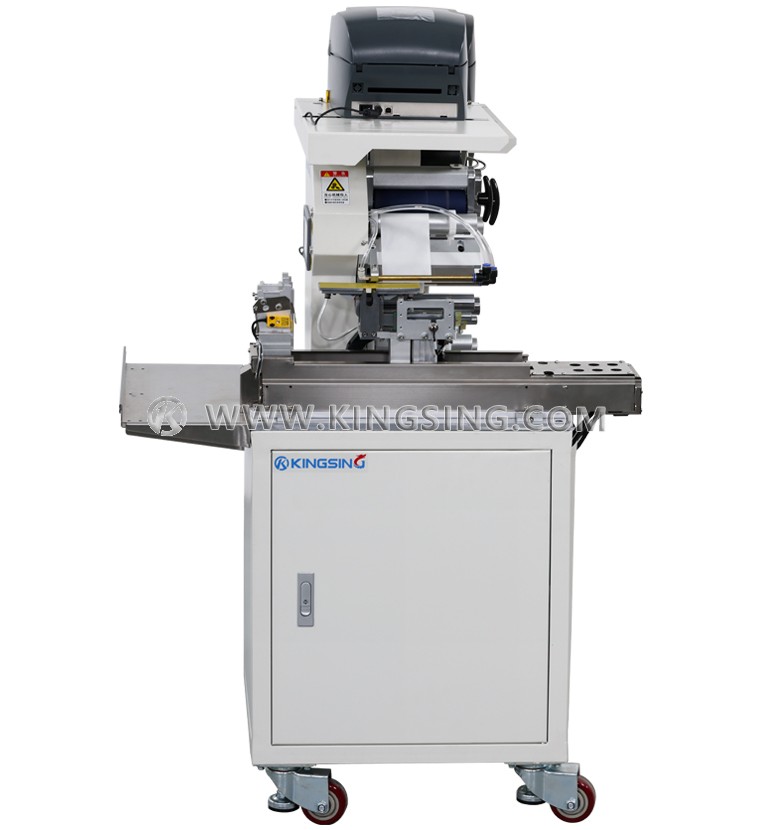

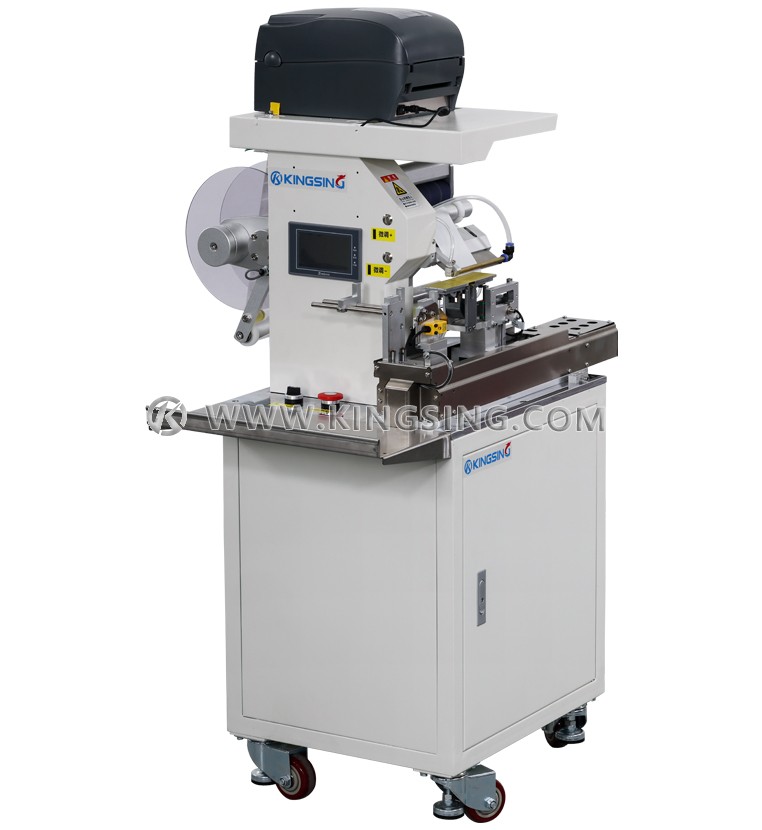

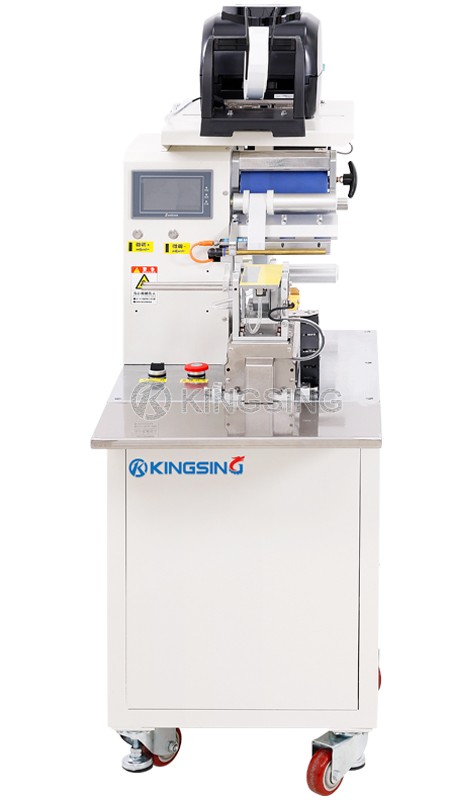

Color touch screen operation interface, all parameters are intuitive and easy to understand. Labels or wires of different sizes can share one machine. It can be equipped with optional label printer, so as to realize labeling while printing.

KINGSING

KINGSING
KINGSING
KINGSING
KINGSING

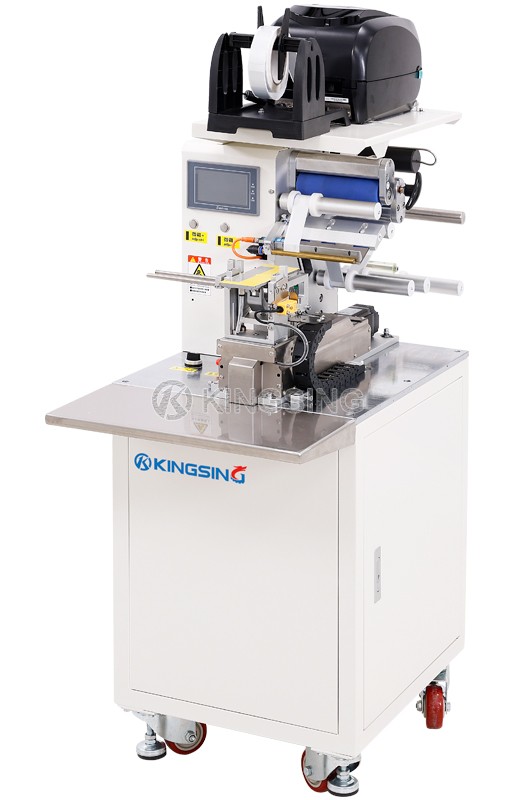

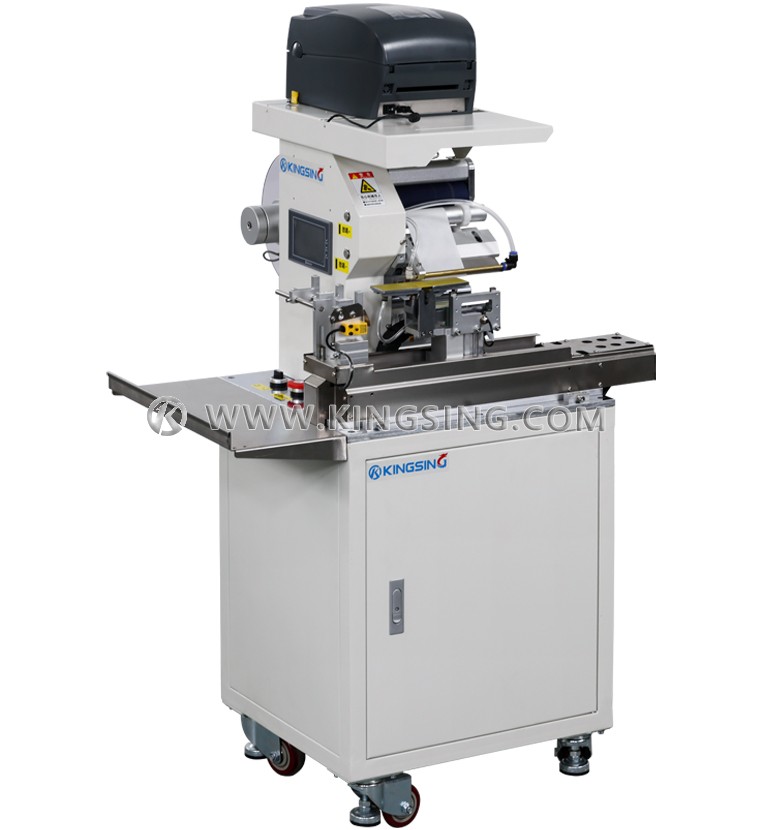

Label Printer: optional

Available Wire Size: 1~30mm

Label Width: 5~90mm (Can be customized)

Label Length: 20~350mm (Can be customized)

Max. Lable Roll OD: 240mm

Labeling Accuracy: ±0.2mm

Capacity: 1000~1500pcs/hour

Air Source: 0.4~0.6Mpa

Power Rating: 250W

Power Supply: 220V 50/60Hz

Net. Weight: 88kg

Dimension: 600×700×1000mm
