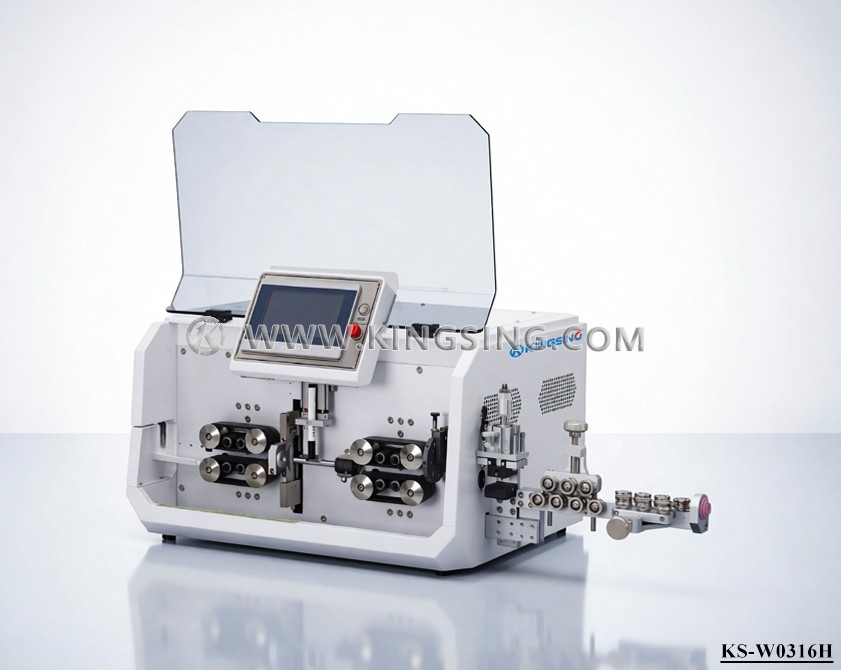

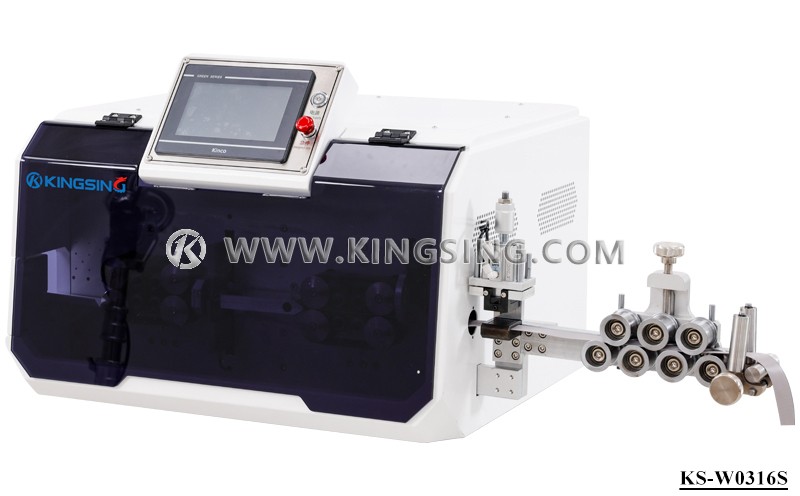

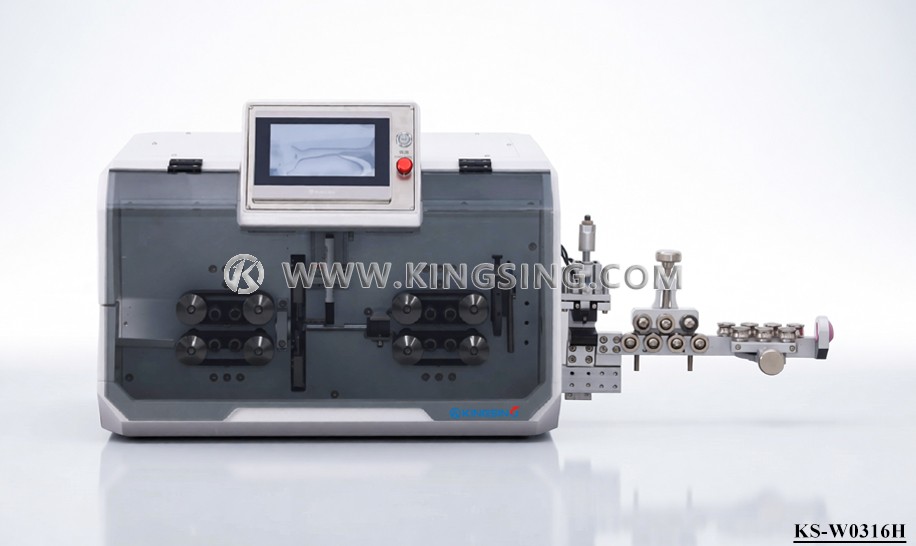

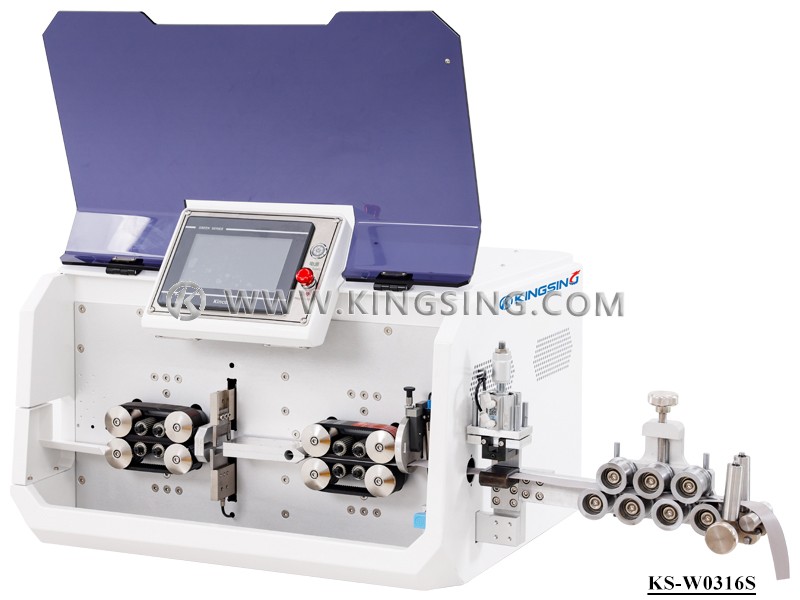

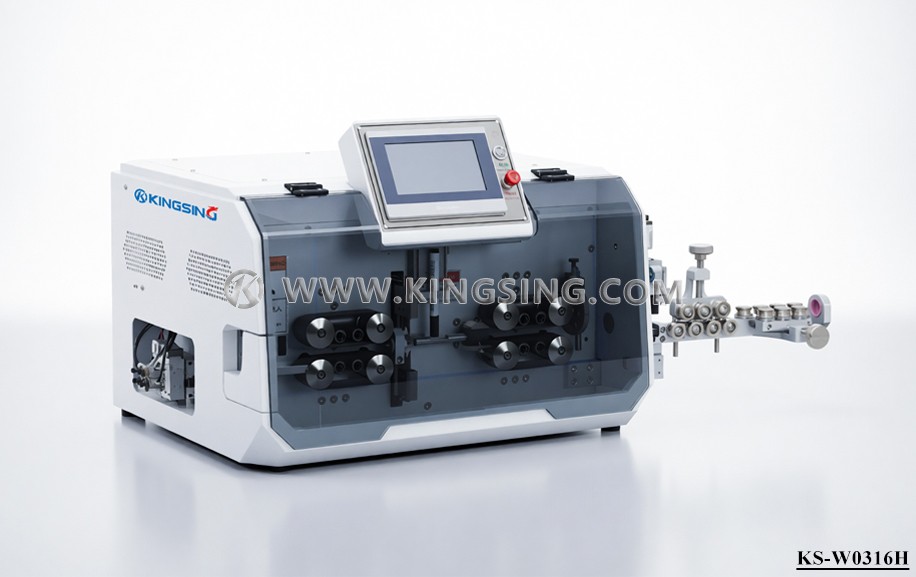

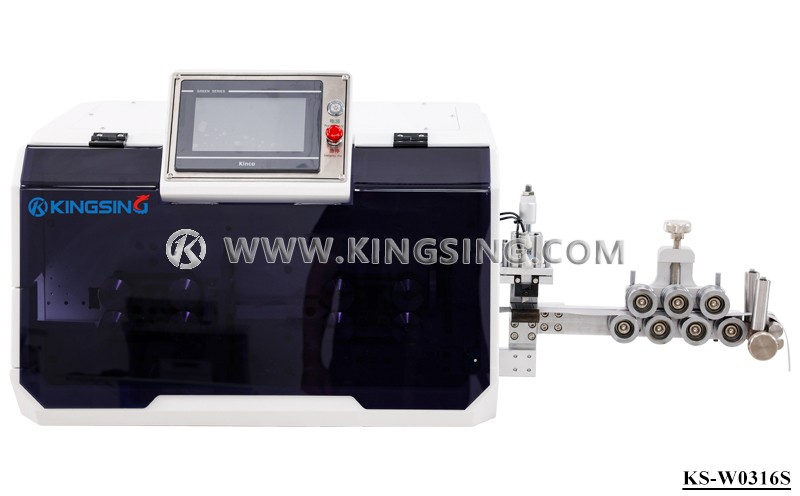

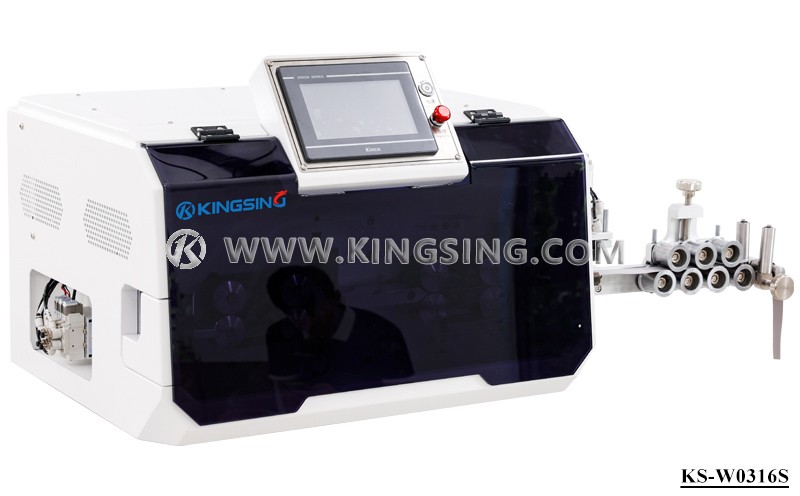

Applicable Wires: Single-core wires, multi-core cables, shielded cables, wires, PVC, flat wires, flat ribbon cables, flat sheathed wires, etc.
Display: 7-inch HMI (Human-Machine Interface)
Processing Range: 0.75~30 mm²; Flat wire width 2~25mm
Cutting Length: 1mm~999999.99mm
Cutting Tolerance: Within 0.002*L (L=Cutting Length)
Stripping Length: Wire head: 1~100mm (supports partial stripping); Wire tail: 1~100mm (supports partial stripping)
Blade Material: Premium imported high-speed steel
Production Rate: 3500 PCS/hour (varies based on wire length and size)
Drive Method: 16-wheel drive
Wire Feeding Method: Belt feeding, no marks or scratches on cables (with stripping pressure function)
Height Adjustment Method: Digital adjustment of pressure wheel height
Power Supply: AC220V 50/60Hz
Air Source: 0.5Mpa clean air source
Net Weight: 90kg
Machine Dimensions (L*W*H): 680*605*502mm
Optional Features: MES system, IoT system, fixed-point marking function, mid-stripping function, external auxiliary equipment alarm function (optional)
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
