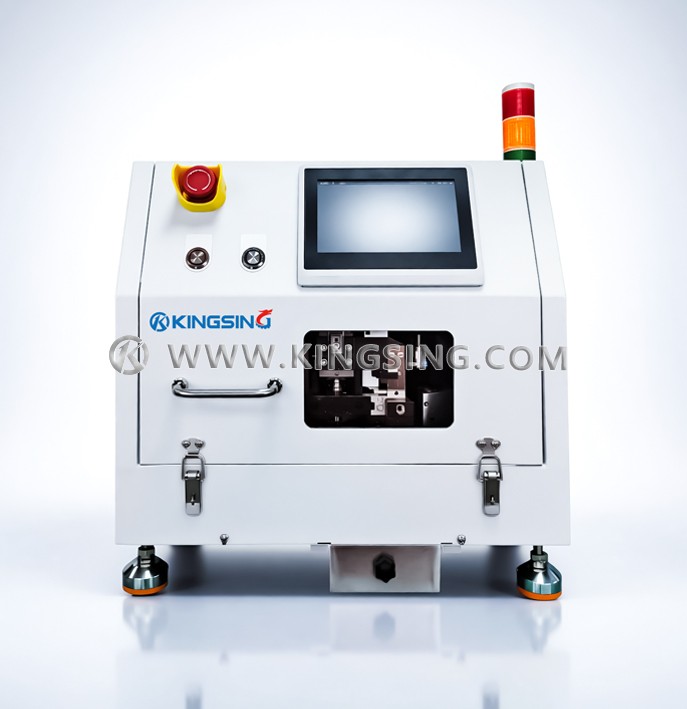

Optical Fiber Wire Stripping and Splitting Machine

  • Model：KS-WF01
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • The stripping parameters of different wires can be directly adjusted by CNC, which is convenient for operation.

  • The stripping parameters of optical fiber wires with various wire diameters can be stored, and the stored data (10 groups) can be called when switching specifications.

  • Servo motor control effectively controls the stripping accuracy and splitting accuracy.

  • For wire diameters with large differences, only the positioning block needs to be replaced, which is convenient and quick, and can generally be adjusted within 3 minutes.

KINGSING



Download: (1)

Applicable wire diameter: Φ1.4~Φ3

Stripping length: ≤30mm

Stripping accuracy: 0.01mm

Slit length: ≤15mm

Efficiency: C/T=3.5S/piece

Air source: 0.6~0.8Mpa

Ambient temperature: -5~40℃

Power supply: AC220V 50/60HZ

Power rating: 0.9KW

Net weight: 35Kg

Dimensions (L*W*H): 480*400*460mm


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
