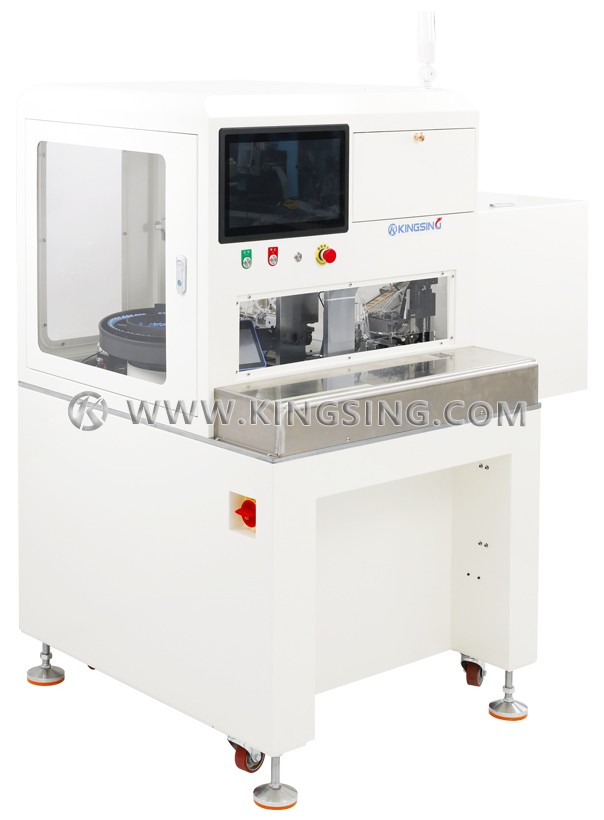

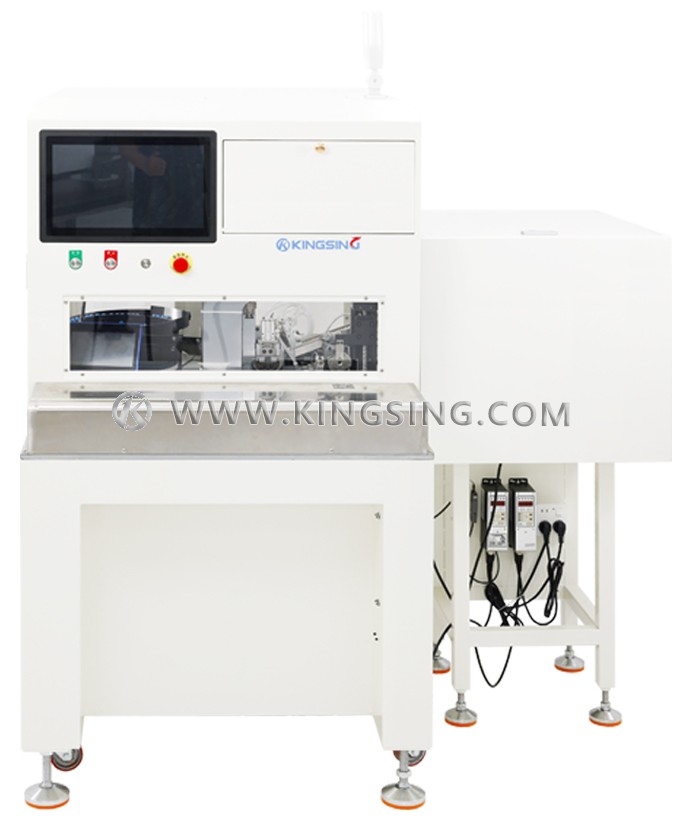

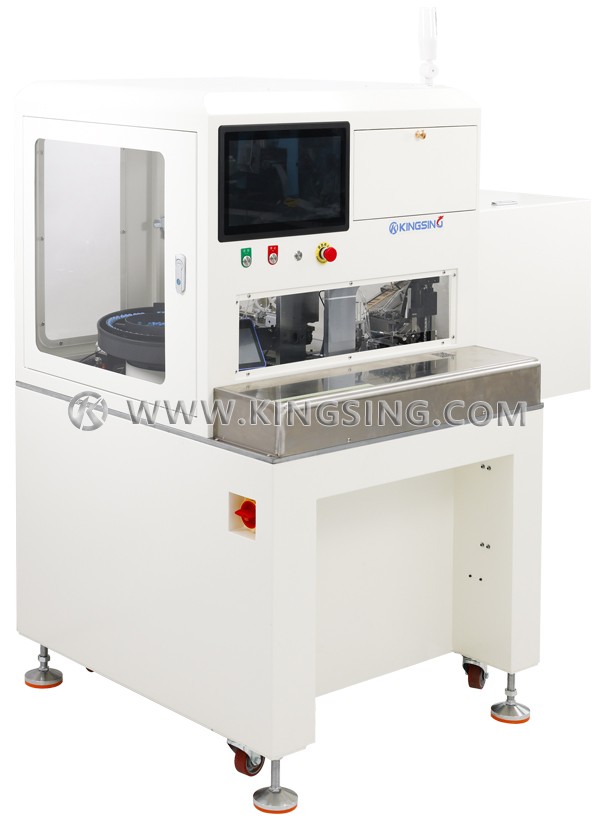

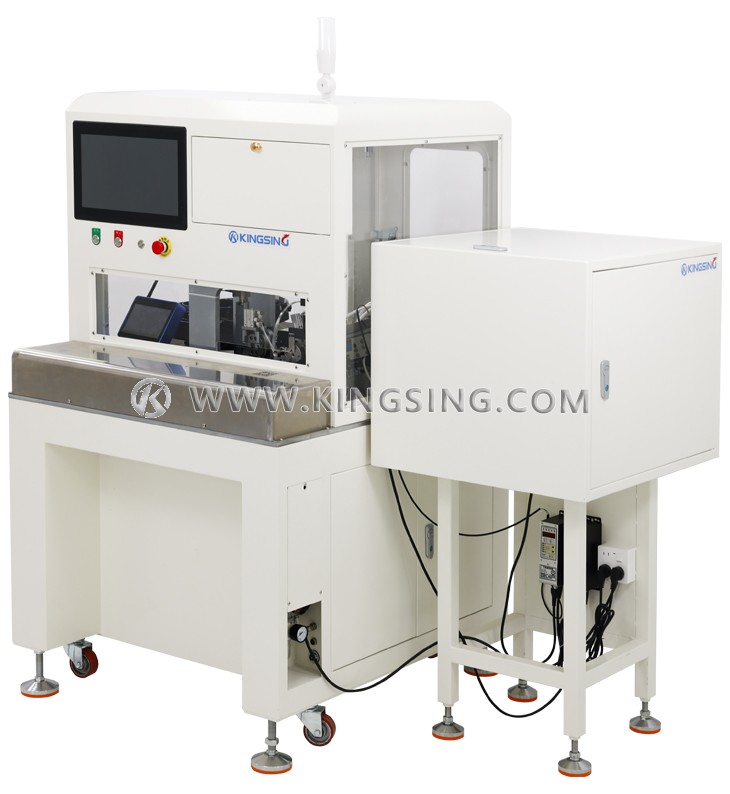

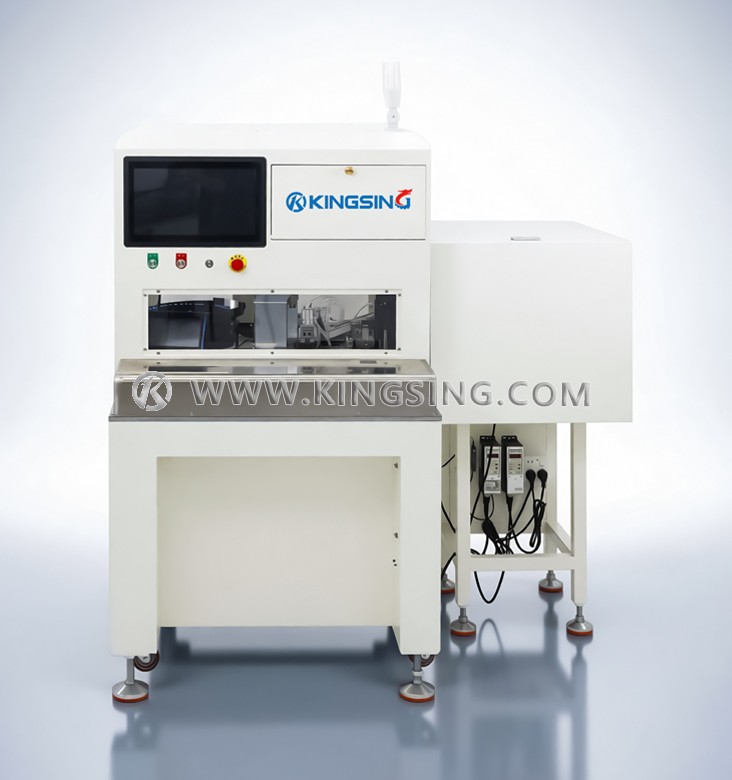

Automatic EV Charging Cable Terminal Crimping & Seal Insertion Machine

This fully automatic machine is specially developed for processing EV charging cable harnesses, particularly Type 2 charging connector applications. It integrates multiple operations including wire stripping, terminal automatic feeding, crimping with real-time pressure monitoring, waterproof seal automatic feeding, and precise seal insertion onto the terminals.

The equipment is designed to meet the stringent requirements of electric vehicle charging cable assembly, where both high current carrying conductors and fine signal wires (CP/PP) must be processed with accuracy and reliability. The system ensures stable crimping quality while maintaining perfect positioning of waterproof seals to guarantee long-term durability in outdoor charging environments.

Featuring vibration bowl feeders for both terminals and seals, the machine achieves continuous automated production with minimal manual intervention. Advanced pressure monitoring and four-point crimping technology deliver consistent, defect-free crimps, while the modular design simplifies maintenance and future upgrades.

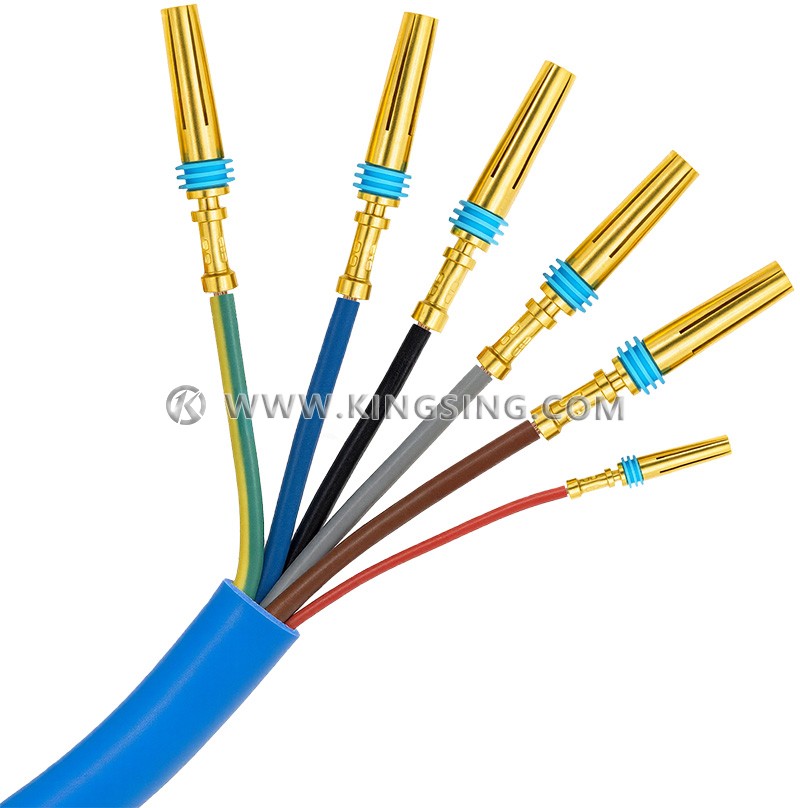

Typical applications include the mass production of EV charging gun harnesses, charging connector internal wiring, and other automotive cable assemblies that require terminal crimping combined with waterproof seal insertion.

By replacing manual operations with automation, this equipment greatly improves productivity, enhances product consistency, and helps manufacturers meet the fast-growing demand for high-quality EV charging solutions.
