Equipment Function

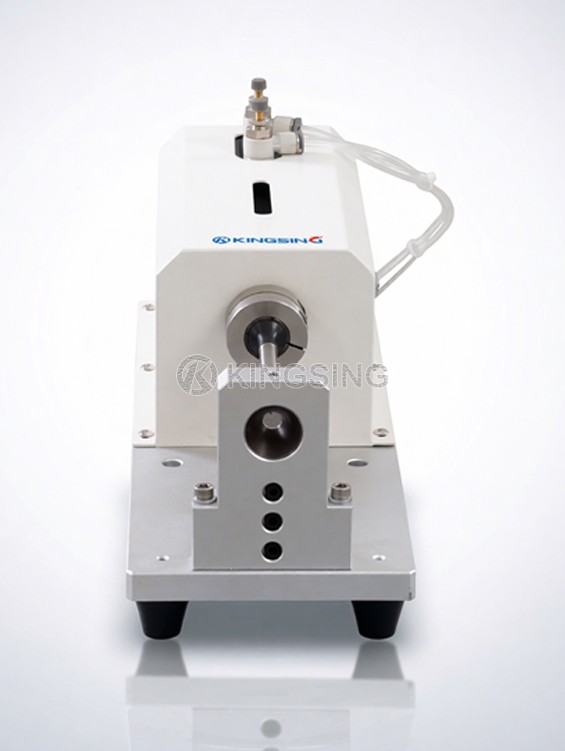

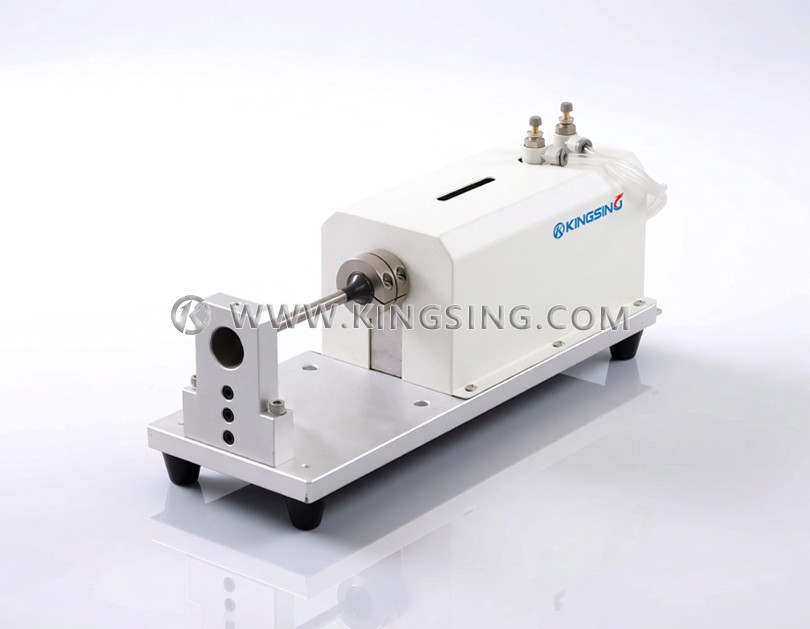

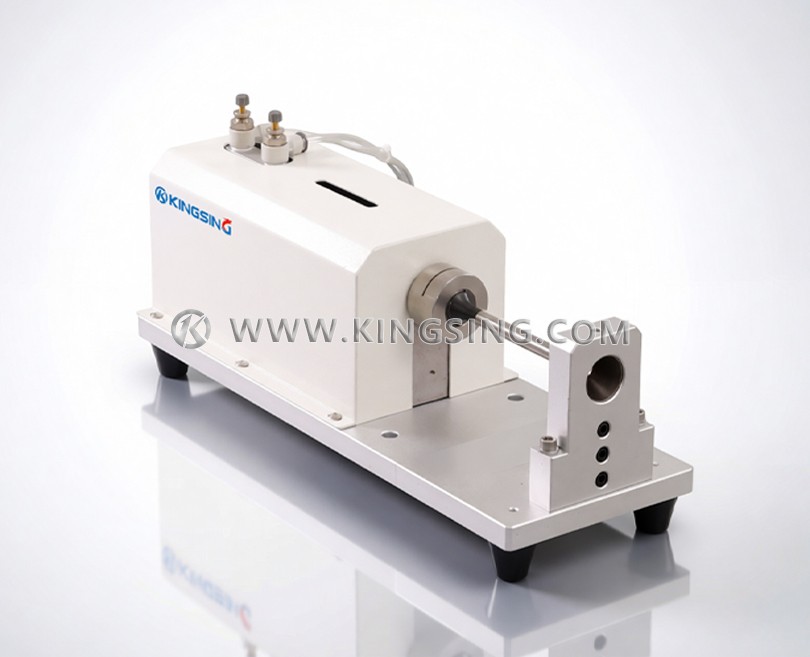

Automatic Cutting of Wire Harness Shielding Braid
Features
All working areas of the machine are fully visible.
When replacing wires, only the corresponding tube and guide tube need to be changed.
The shielding braid can either be cut after reserving a specified length, or cut completely.
Simple mechanical structure ensures high operational flexibility.
Pneumatic connection is used—no power plug required—enhancing safety during use.
| Model | KS-S316PA | KS-S316PB |
| Cable | 2–35 mm² | 16–120 mm² |
| Shielding braid cut length | 10–110 mm (up to 180 mm when the shield is loose) | 10–250 mm |
| Air control method | Pneumatic control | Pneumatic control |
| Operating mode | Foot pedal operation or manual button press | Foot pedal operation or manual button press |
| External dimensions | W410 mm × W145 mm × H155 mm | W600 mm × W150 mm × H210 mm |
| Weight | 8 kg | 12 kg |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
