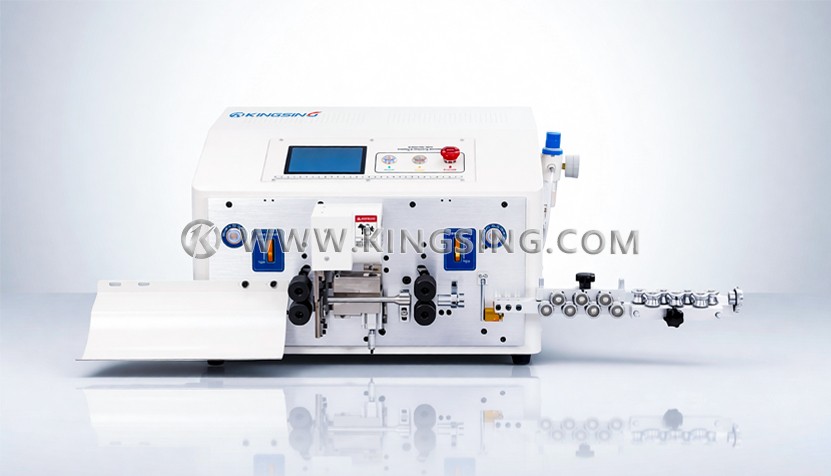

Round Sheath Wire Stripping Machine

  • Model：
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry
Download: (1)

Display mode: 5-inch touch screen

Outer diameter of round sheath: ￠2-9 mm

Number of cores: 2 cores, 3 cores, 4 cores, 5 cores

Stripping accuracy: ±0.2mm

Core wire stripping length: wire head 0-20mm, wire tail 0-20mm

Cutting length: max 100m

Stripping length of round sheath: wire head 1-150mm, wire tail 1-100mm

Stripping speed: 300mm length unit, 1500-3000 pcs/h

Drive mode: four-wheel drive

Power supply: 220V/110V 50HZ/60HZ

Power rating: 350W

Air pressure: 0.8Mpa

Net weight: 40KG

Dimension: 560×460×365mm


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
