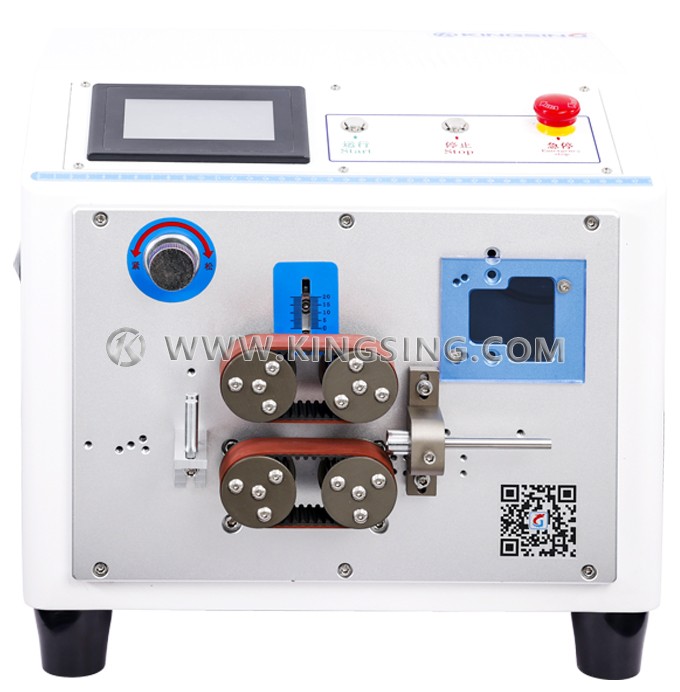

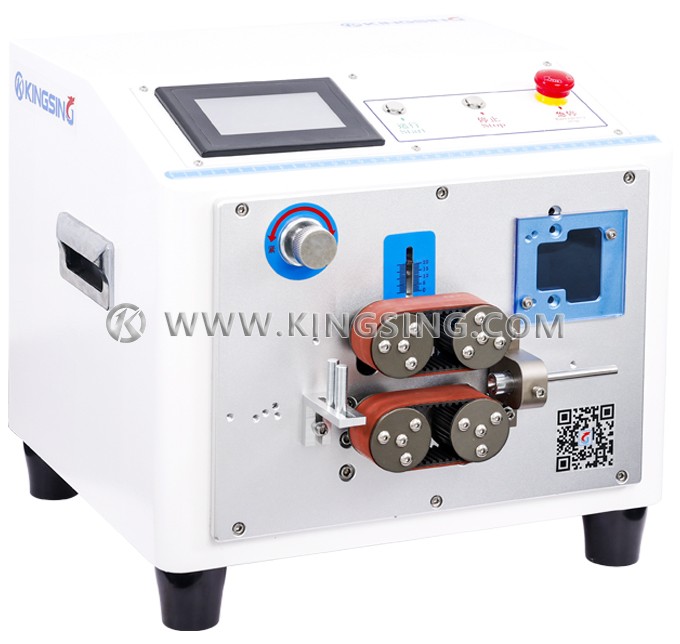

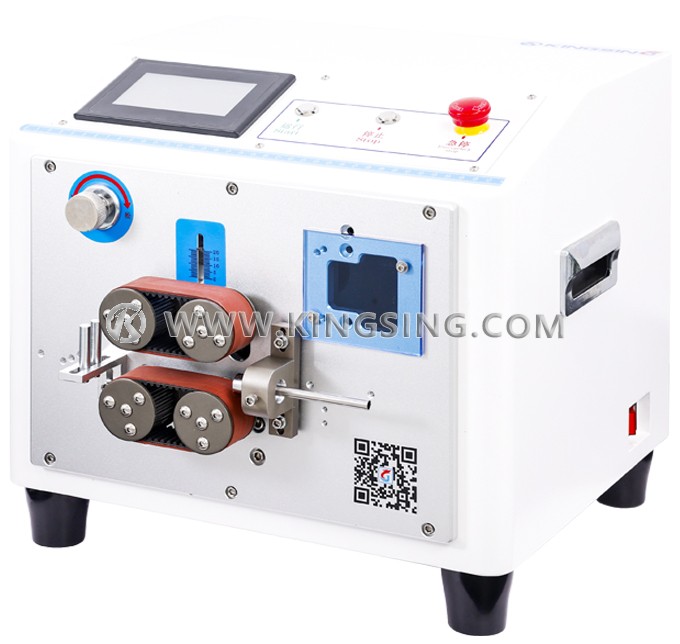

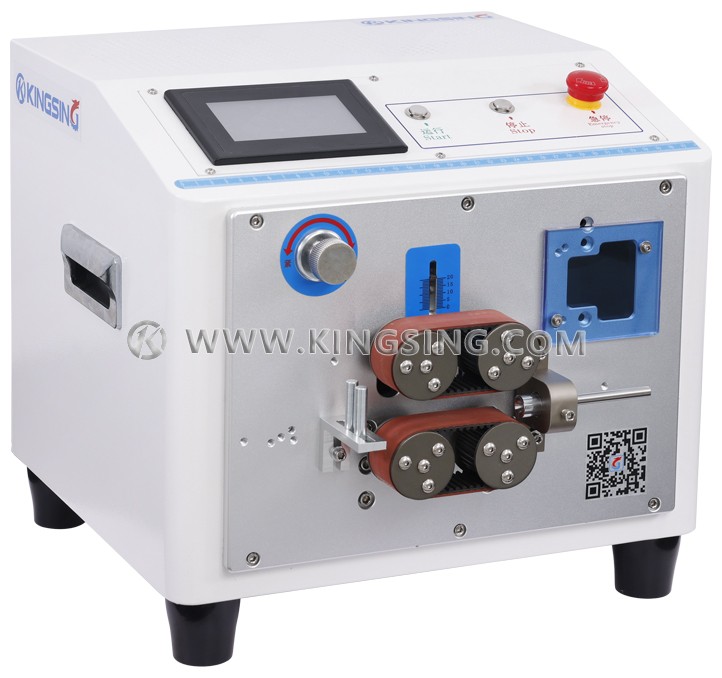

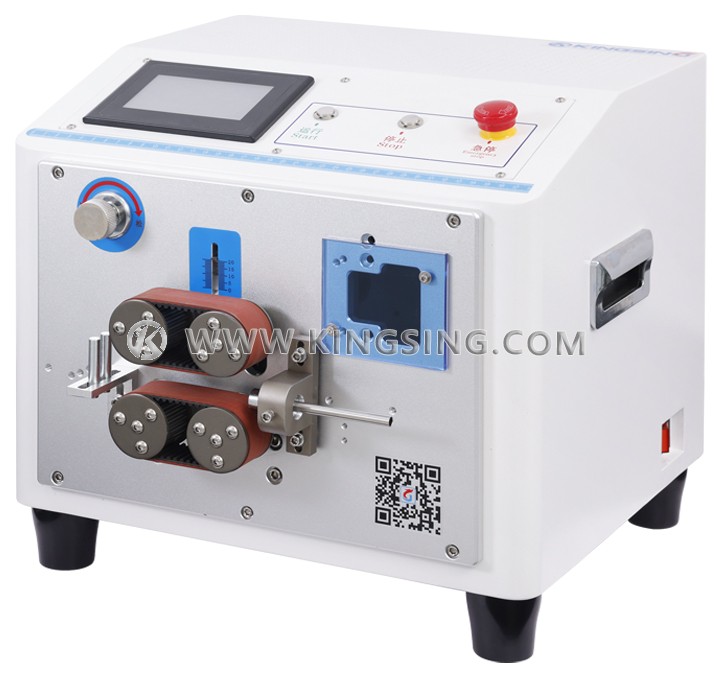

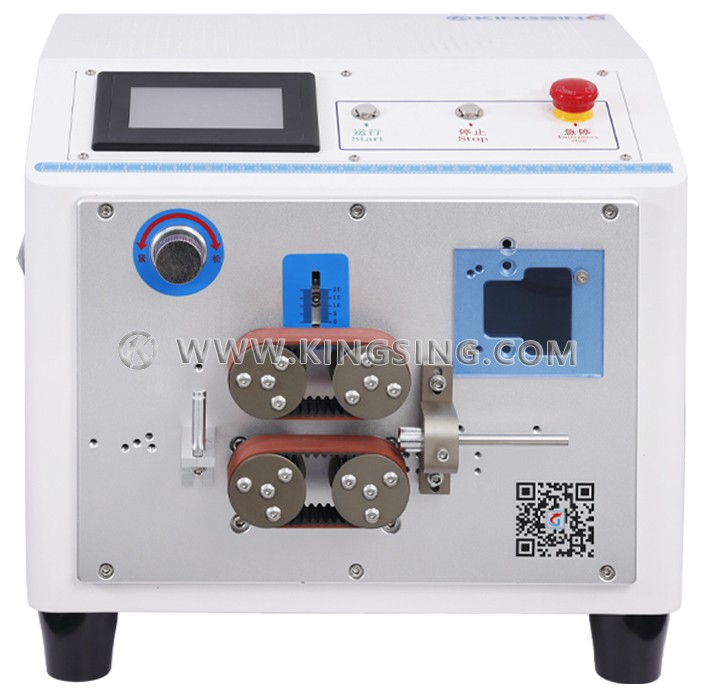

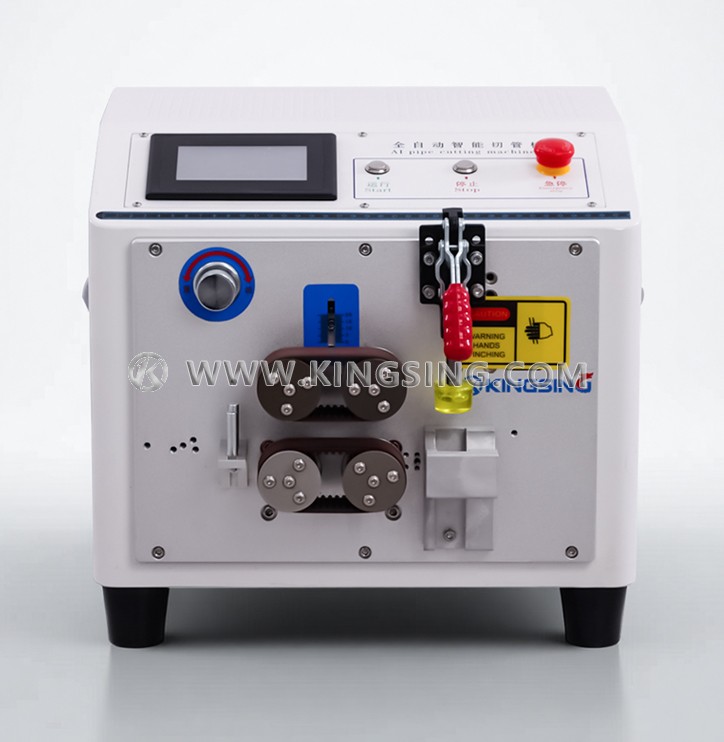

Machine Features
Excellent price/performance ratio.
Stable performance and low failure rate.
Compact layout with centralized functions.
Easy to program and operate — operators can get started quickly without training.
Ergonomically designed to reduce operator fatigue.
Touch-screen operating system: all parameters can be freely adjusted on the screen.
Belt feeding mode enlarges the contact area to prevent damage to the wire surface.
Parameters for different wires can be saved in separate programs. When the wire is changed, simply switch to the corresponding program — no repeated adjustments needed, greatly improving production efficiency.
Emergency stop button at the top of the machine can be pressed immediately in case of emergency to stop operation.
Optional safety cover: when opened, the machine stops and alarms immediately.
| Parameter | Specification |
|---|---|
| Model | KS-W00 |
| Feature | Wire feeding/threading |
| Feeding Mode | Belt feeding |
| Feeding Speed | Adjustable |
| Feeding Length | Max. 99999.99 mm |
| Display Mode | 4.3 inch color touch screen |
| Program Memory | Max. 100 groups of programs |
| Operation Temperature | 0–40°C |
| Environment Humidity | 30%–80% RH (no condensation at 40°C) |
| Power Rating | 160 W |
| Power Supply | AC 220 V, 50 Hz/60 Hz |
| Net Weight | 30 kg (66.14 lbs) |
| Dimensions (L×W×H) | 460 × 420 × 380 mm (18.11 × 16.54 × 14.96 in) |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
