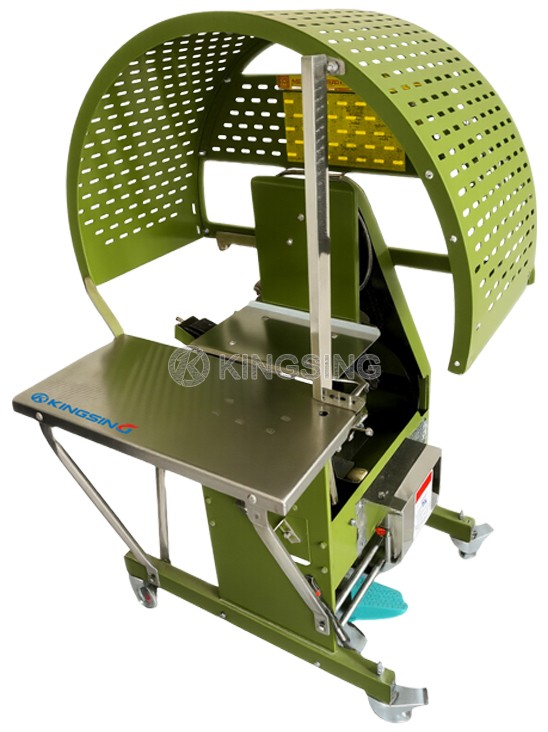

PE Knot Bundling Machine

  • Model:
  • Net. Weight:
  • Dimension:
  1. This machine has many models suitable for bundling items of various sizes. It is widely used in newspapers, publishing houses, paper mills, cardboard factories, carton factories, daily necessities, post offices, printing industry, clothing industry, towel factories and wood industry, etc., to facilitate the storage and transportation of items.

  2. PE knot bundling machine is to use PE end belt to efficiently imitate manual slipknot bundling of items to be bundled to improve the firmness of the package. This model has a one-button bundling with a foot switch, simple operation, low failure rate, convenient maintenance, and maintenance and use without the need for factory personnel. The bundling tightening force is large, so as to achieve the purpose of bundling tightly without falling off. It can be bundled in various forms such as one-line, two-line, cross, and well. The most important thing is that the PE end belt consumables cost is low, and double-loop models and single-loop models can be selected according to packaging needs.

Model





Bundling Size(mm)

Max. 300*250

Min. 30*30

Max. 500*350

Min. 50*30

Max. 750*550

Min. 100*50

Max. 1000*800

Min. 200*160

Max. 1200*1000

Min. 400*360

Max.1500*800

Min. 600*400

Bundling Material150mm
Coil TurnsSingle turn/double turn (optional)
Bundling Speed1-2S/time
Power SupplyAC220V
Power Rating0.55kw
Net Weight
120kg147kg162kg178kg198kg278kg
Dimensions(mm)
600*900*1100900*870*13801230*870*15201520*1100*16201710*1080*17002180*1090*1710
