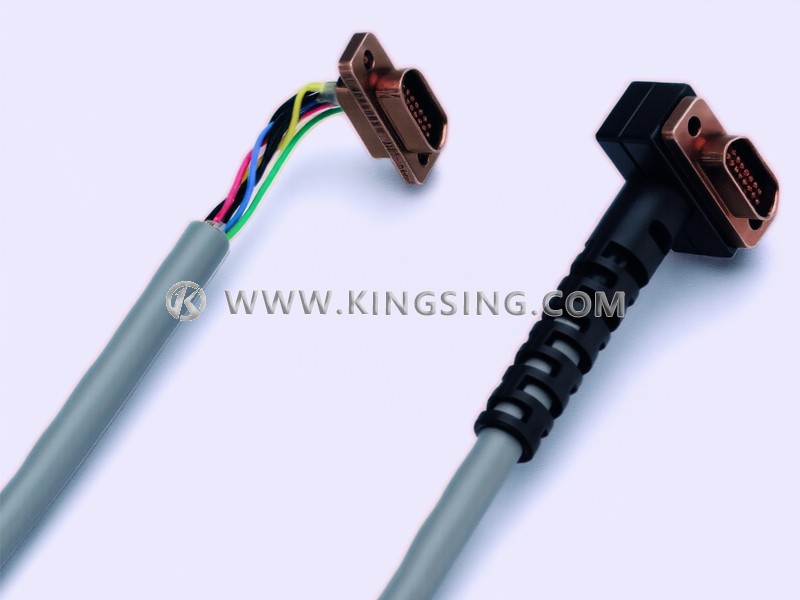

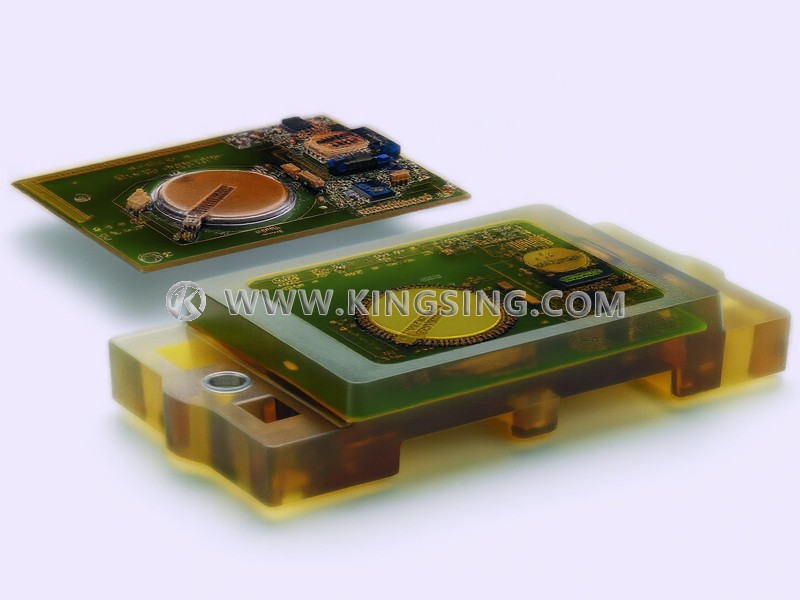

This low-pressure side-injection molding machine is engineered for precision encapsulation of sensitive electronic components, delivering consistent, high-reliability seals without thermal or mechanical stress—ideal for PCBs, sensors, connectors, coils, and battery assemblies.

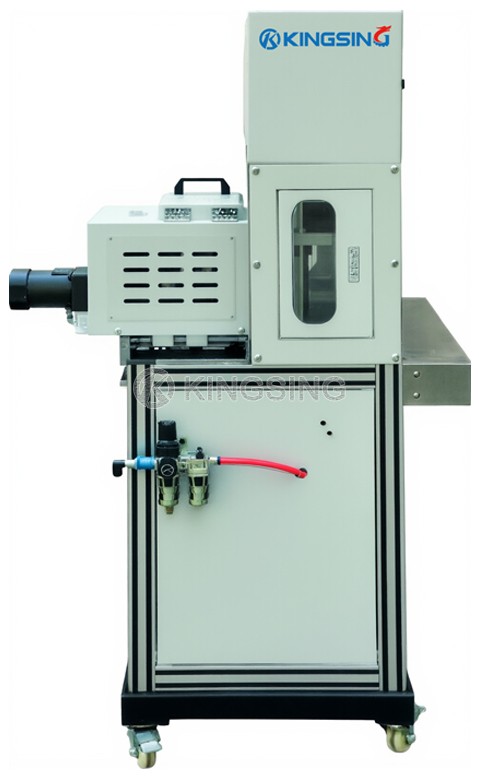

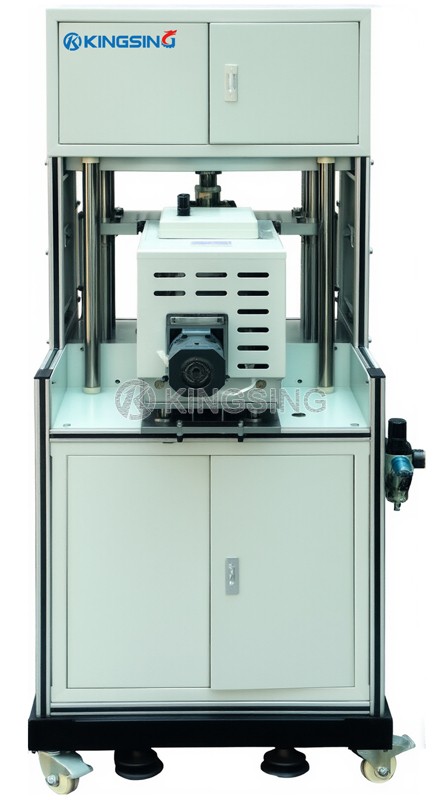

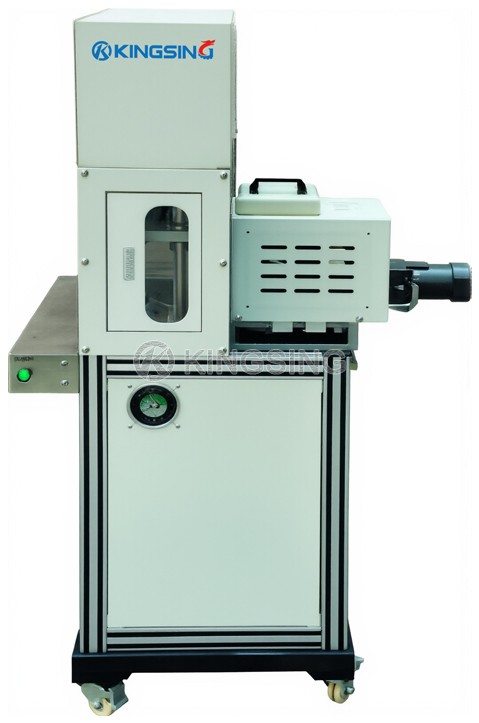

Equipped with a hose-free side injection design and a top-mounted single injection unit, the machine enables unobstructed access for encapsulating irregularly shaped components with clean, efficient processing and faster cycle times. Its robust construction ensures high repeatability and reliability in high-volume production settings.
The intuitive LCD digital interface, multi-language PLC control, and real-time process monitoring allow for seamless operation, while adjustable injection pressure and precise mold temperature regulation (via DELTA modules) deliver stable results across diverse materials and production conditions. The built-in top ejection mechanism ensures smooth product removal without manual handling, minimizing downtime.
Designed with operator safety and workflow efficiency in mind, it includes a light curtain and emergency stop switch, complemented by an ergonomic foot pedal layout that reduces fatigue. This dependable, scalable solution combines speed, accuracy, and sustainability for advanced electronics protection.

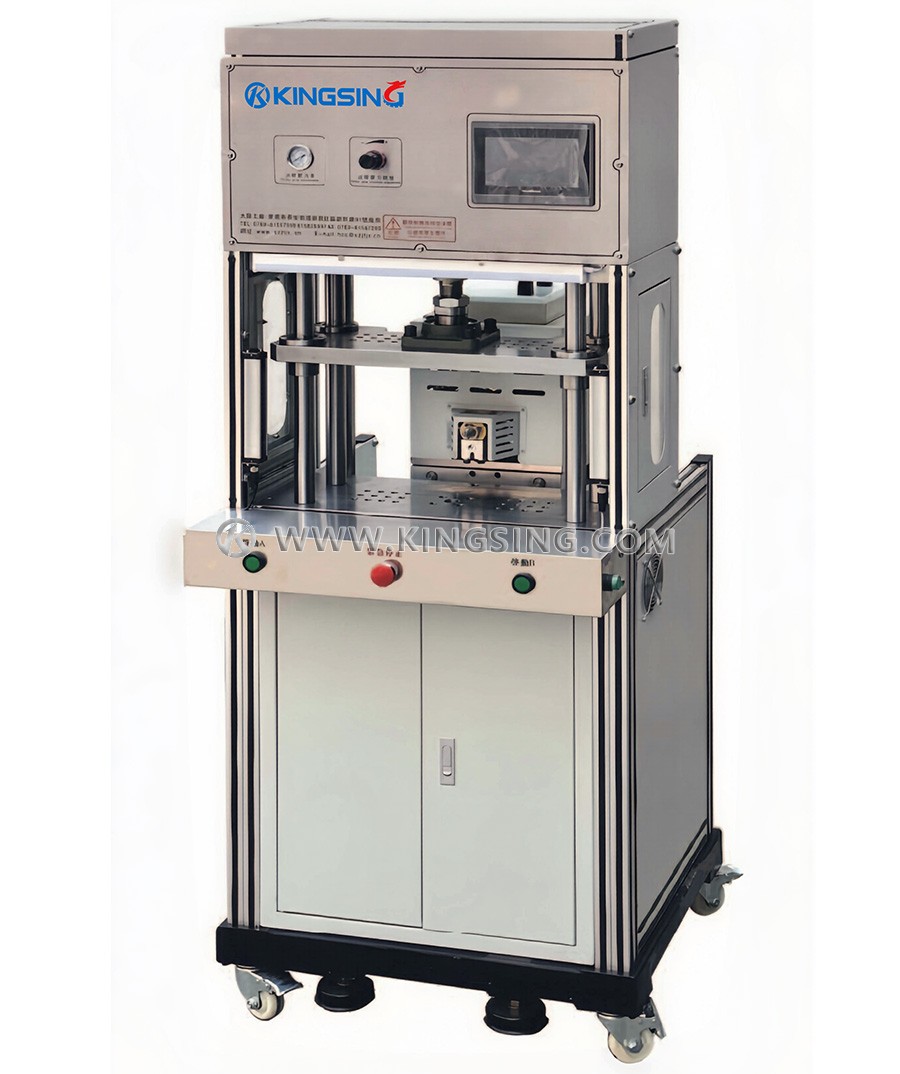

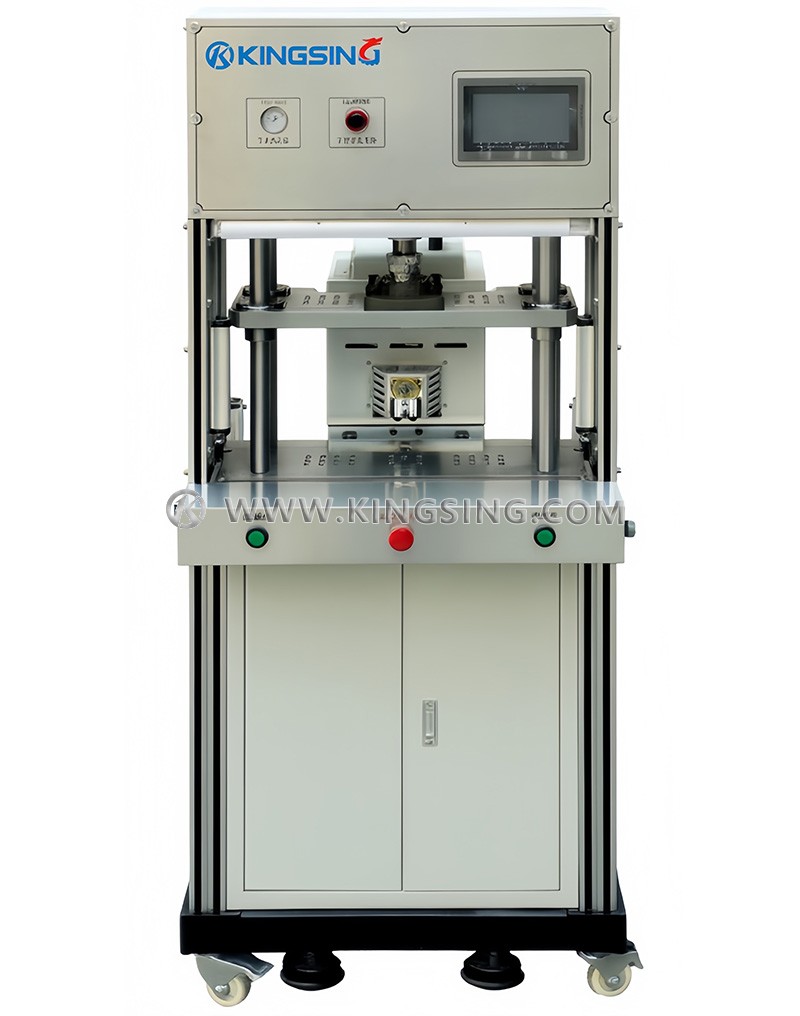

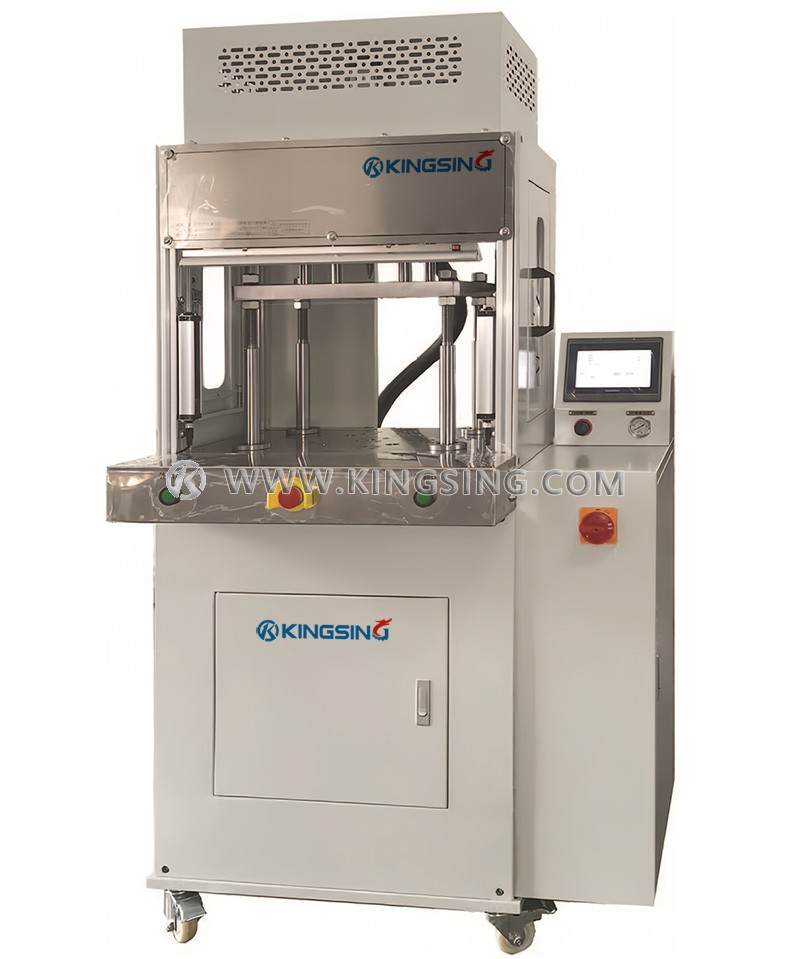

| Model | KS-J1120S | KS-J1120HS |
|---|---|---|
| Clamping Force | 1 ton | 5 ton |
| Picture |  |  |
| Applicable Molding Pressure | 1.5–4 kg/cm² | |
| Injection Volume | 5–50 g/oz (theoretical ejection capacity) | |
| Nozzle Stroke | 50 mm | |
| Number of Temperature Zones | 1+2 | |
| Rubber Cylinder Capacity | 6 L | |
| Opening Force | 0.4 Tons | |
| Platen Size | 740 × 400 mm | |
| Mold Column Spacing | 360 × 230 mm | |
| Clamping Stroke | 160 mm | |
| Maximum Mold Opening | 280 mm | |
| Minimum Mold Thickness | 120 mm | |
| Ejection Force | 0.1 Ton | |
| Ejection Stroke | 10 mm | |
| Main Intake Pressure | 5.0–7.0 kg/cm² | |
| Power Requirement | 220 V (customizable) | |
| Motor Power | 0.4 kW | |
| Total Wattage | 3.4 kW | |
| Working Power | 3.8 kW | |
| Machine Weight | 0.5 Tons | |
| Machine Dimensions (L×W×H) | 0.8 × 0.75 × 1.67 m | |
| Hose Diameter & Length | Φ8 × 1500 mm | |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
