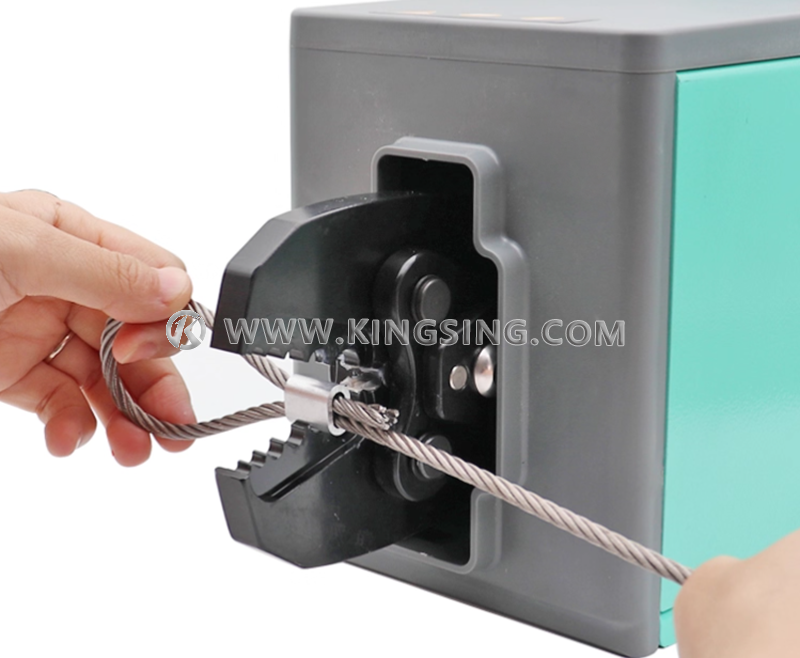

This pneumatic crimping machine is specially designed for secure and efficient crimping of aluminum crimp sleeves, delivering reliable connections for wire ropes and cables. Operating solely on compressed air, it eliminates the need for electricity, making it practical for outdoor projects, field assembly, and environments where electrical access is limited or unsafe.

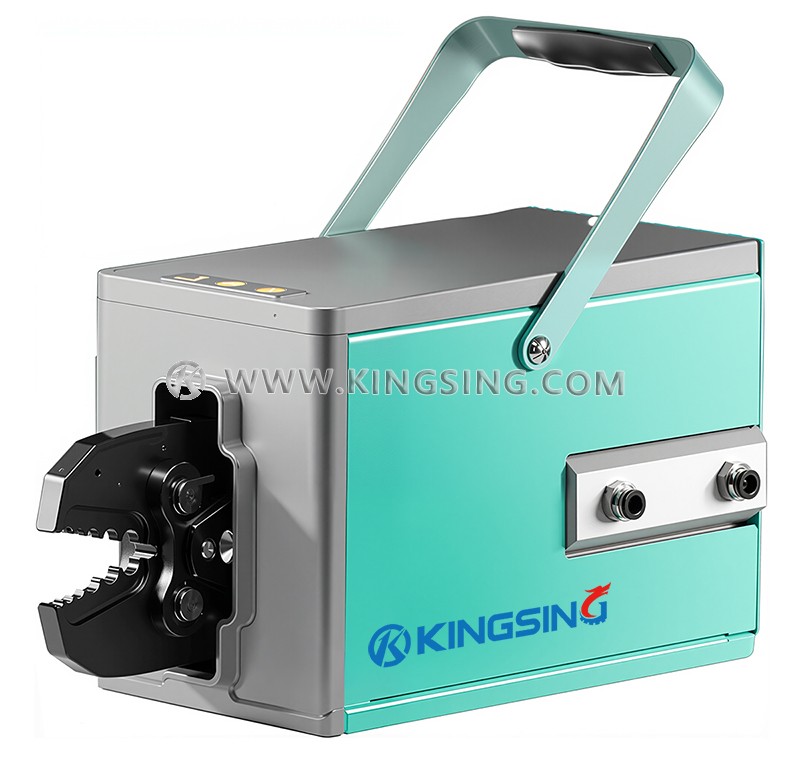

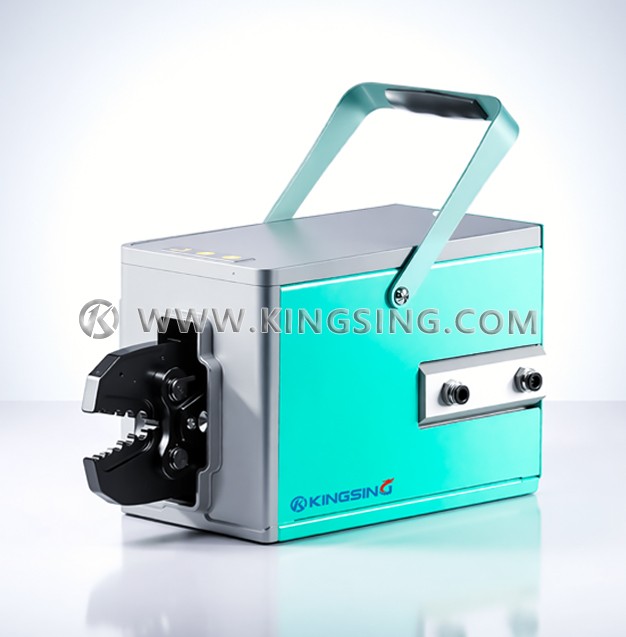

Built with a lightweight yet durable housing and an ergonomic integrated handle, the tool ensures easy portability and operator comfort. Its rugged construction withstands demanding work conditions, while the compact profile allows for convenient storage and transport—ideal for professionals handling frequent installation tasks.

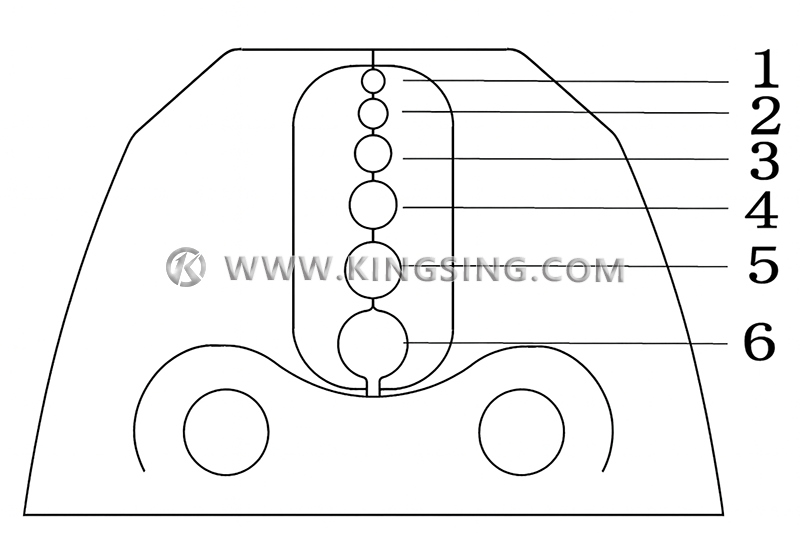

The crimping head is equipped with a fixed die set featuring six different crimping grooves, suitable for crimping aluminum sleeves ranging from M1.2 to M5. This all-in-one configuration ensures versatility without the need for die changes, allowing operators to achieve precise and repeatable results across multiple sleeve sizes.
Optimized for repetitive and high-precision operations, the pneumatic system applies uniform clamping force with minimal effort. Each crimp is consistent, deformation-free, and capable of withstanding demanding tensile loads, ensuring long-lasting performance in wire rope applications.
With its dependable quality and proven durability, this pneumatic crimper is an essential tool for rigging professionals, cable manufacturers, and maintenance teams working with aluminum crimp sleeves.
| Cylinder Diameter | 125 mm |  |
| Crimping Force | 6 ton | |

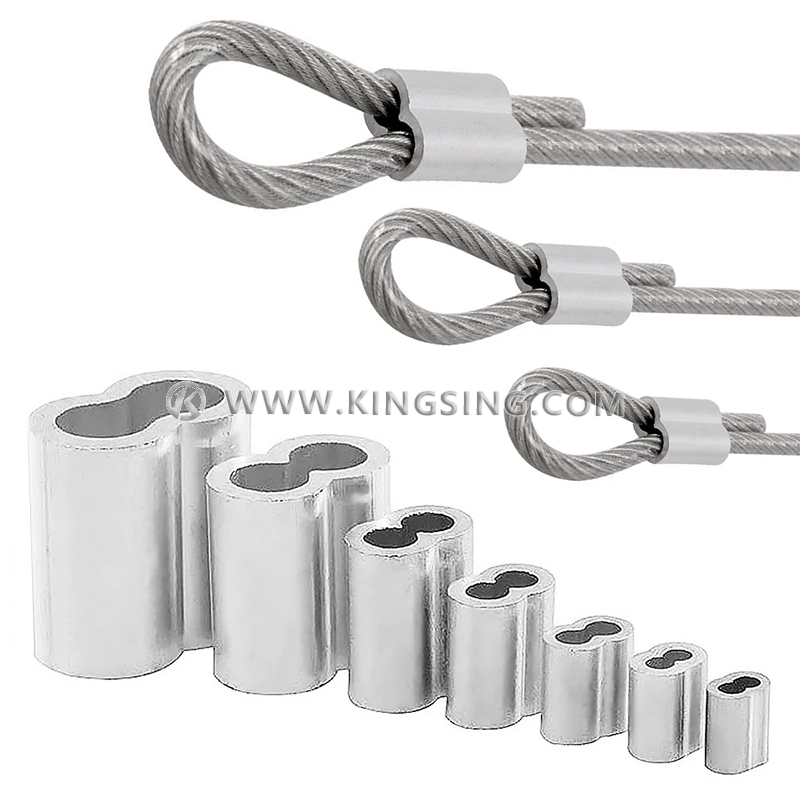

| Applicable Terminal Type | Aluminum Crimp Sleeves | |
| Crimping Capacity | M1.2, 1.5, 2, 2.5, 3, 4, 5 | |

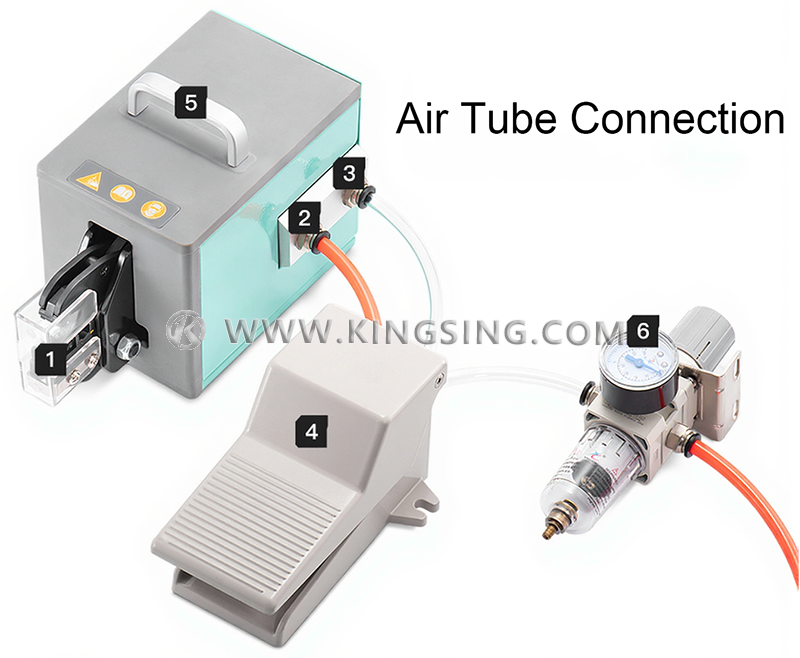

| Air Pressure | 0.5-0.8 MPa | |
| Net Weight | 12 kg | |
| Dimensions | 150 × 337 × 192 mm |
 | |||||||

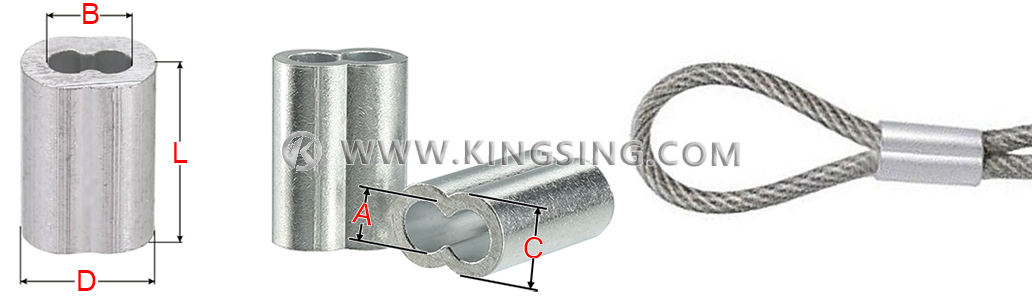

| Crimping Die | No. | Sleeve Size | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) |
|---|---|---|---|---|---|---|---|
 | 1 | M1.2 | 1.60 | 3.12 | 3.80 | 5.20 | 10.00 |
| 2 | M1.5 | 2.06 | 4.02 | 4.26 | 6.14 | 10.00 | |
| M2 | 2.52 | 4.90 | 5.00 | 7.54 | 10.02 | ||
| 3 | M2.5 | 2.90 | 6.00 | 6.22 | 9.44 | 12.10 | |
| 4 | M3 | 3.70 | 7.38 | 7.60 | 11.24 | 15.16 | |
| 5 | M4 | 4.86 | 10.72 | 8.94 | 13.76 | 16.00 | |
| 6 | M5 | 5.70 | 11.54 | 10.22 | 16.02 | 22.04 | |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
