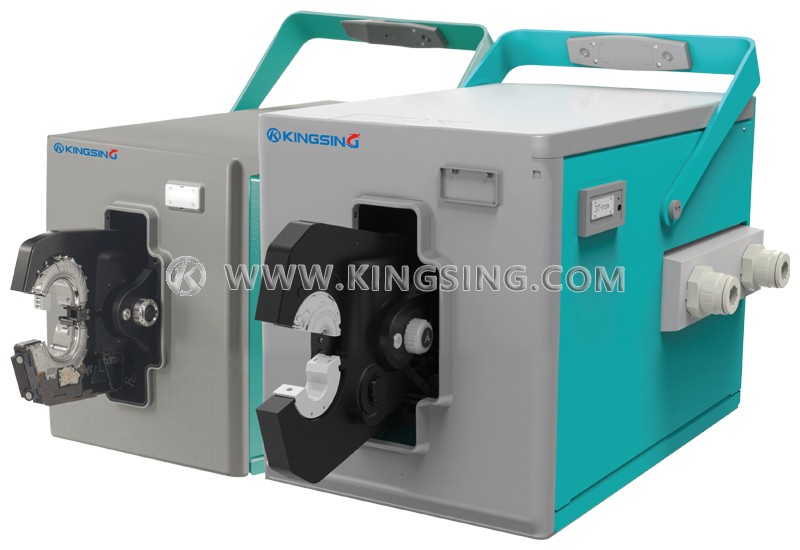

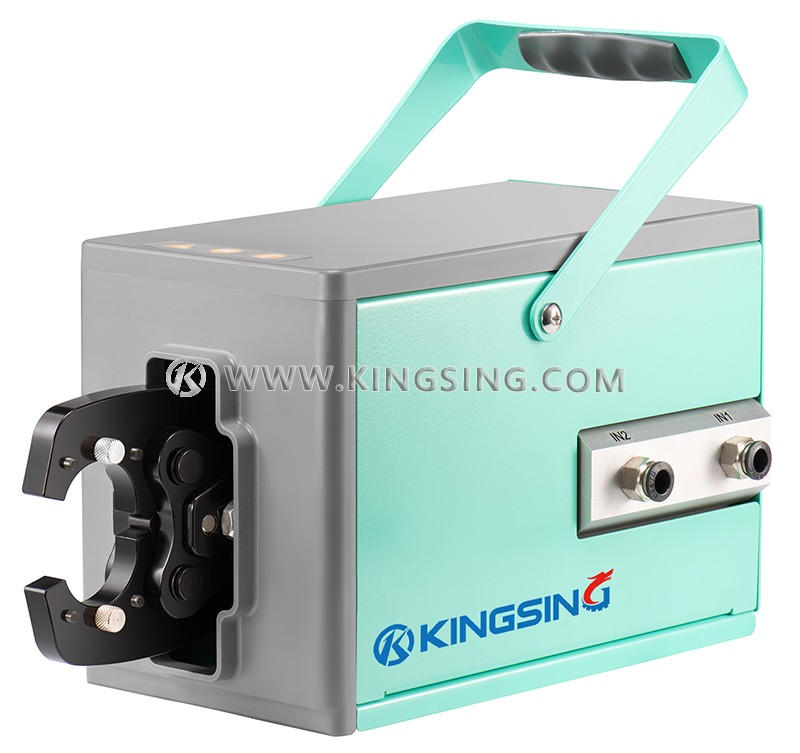

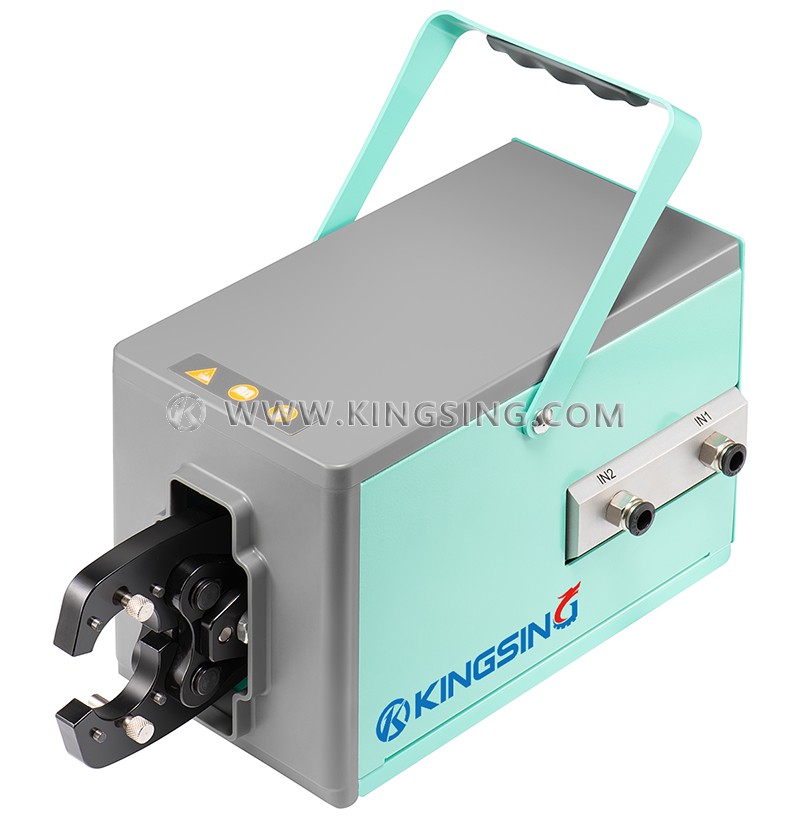

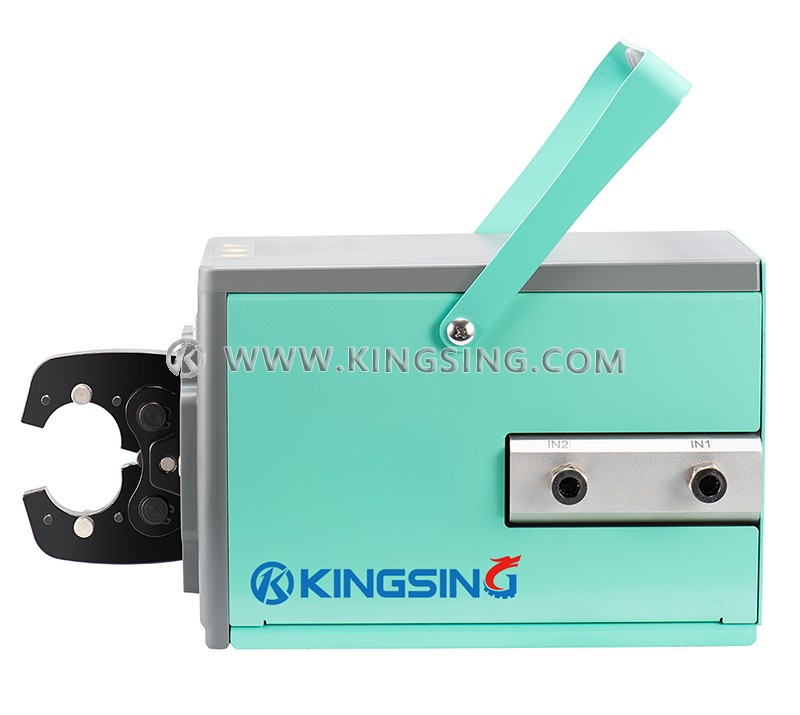

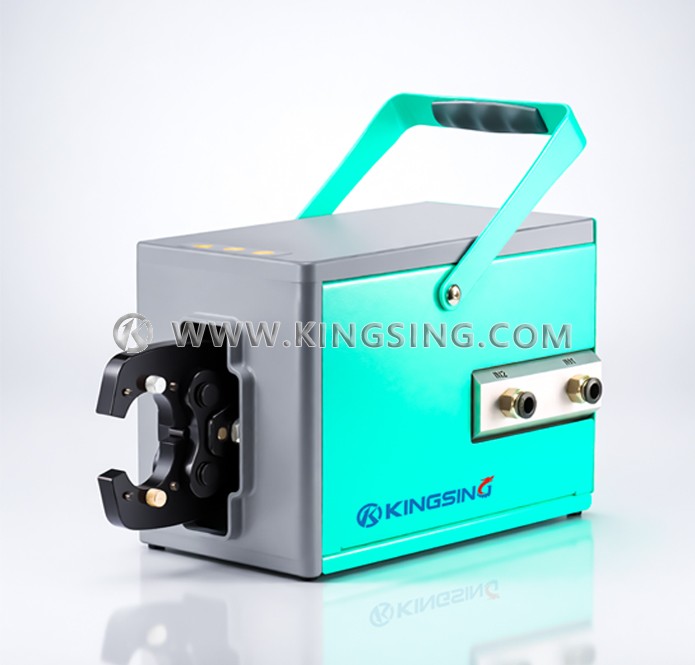

This air-powered crimping machine is designed to deliver precise and reliable compression for a wide variety of terminals, including OT lugs, open barrel contacts, and ferrules. With multiple crimping die profiles available—such as hexagonal, R-type, and customized shapes—it provides excellent adaptability for different wiring requirements.
Operating solely on compressed air, the unit removes the need for electrical power, ensuring safe and convenient use in factories, assembly lines, and service workshops. Its lightweight body combined with an integrated handle allows operators to move it effortlessly and perform tasks efficiently, even in limited working spaces.
Engineered with durability in mind, this crimping solution maintains stable performance across a wide conductor range. The quick-change die system broadens its functionality, enabling users to process various terminal types with just one compact machine.
Ideal for electrical installation, industrial cable harnessing, and on-site maintenance, this pneumatic crimping tool enhances productivity, minimizes fatigue, and ensures professional-quality connections for every application.
| Model | KS-PT930A | KS-PT930B |  |
| Crimping Force | 6.0T | 9.0T | |
| Wire Size Range | 6 – 70 mm² | 16 – 240 mm² | |
| Die Types Available | SC, RNW, RND, KKB | ||
| Air Pressure Range | 0.5 – 0.8 MPa | ||
| Power Source | Compressed air only | ||
| Net Weight | 12 kg | 19 kg | |
| Machine Dimensions | 377 × 150 × 192 mm | 397 × 181 × 212 mm | |
 |  |  |
| Optional Die Set List | |||||
|---|---|---|---|---|---|
 |  |  |  |  |  |

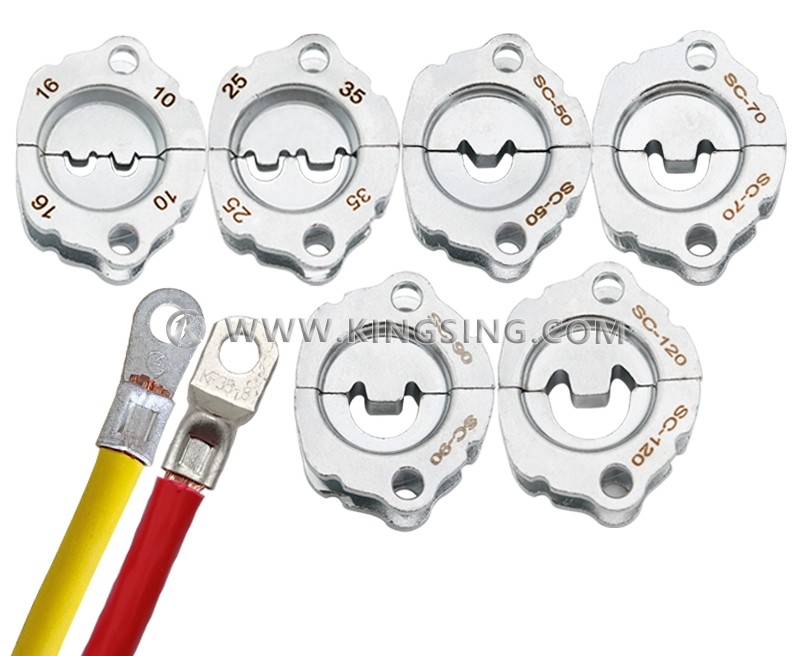

| SC10-16 (t6) | SC25-35 (t6) | SC-50 (t12) | SC-70 (t12) | SC-90 (t12) | |
 |  |  |  |  | |
| SC-120 (t12) | SC-150 (t12) | SC-240 (t12) | SC-240 (t12) | SC-300 (t12) | |
 |  |  |  |  |  |

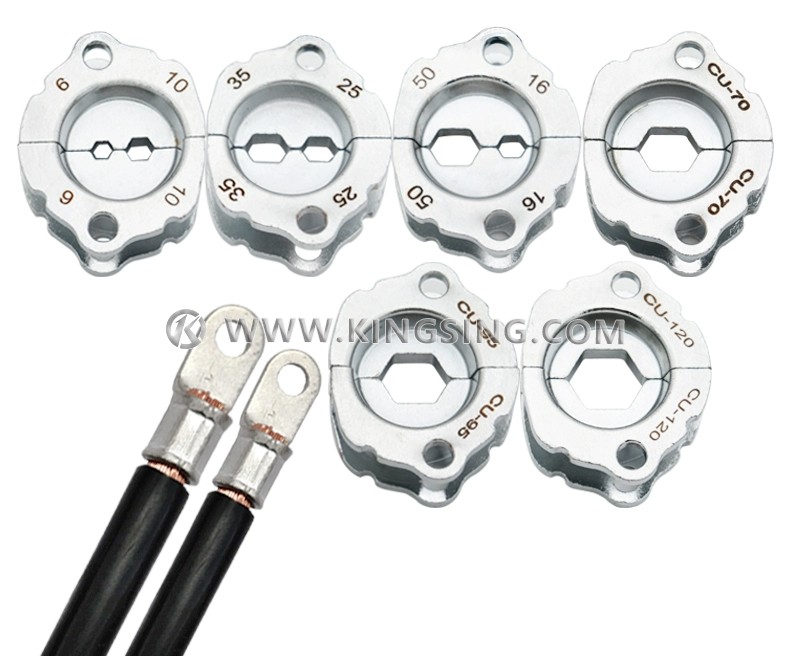

| GB6-10 | AL16-25/CU25-35 | AL10-35/CU16-50 | AL50/CU70 | AL70/CU95 | |
 |  |  |  | ||
| AL95/CU120 | AL120/CU150 | AL150/CU185 | AL185/CU240 | ||
 |  |  |  |  |  |

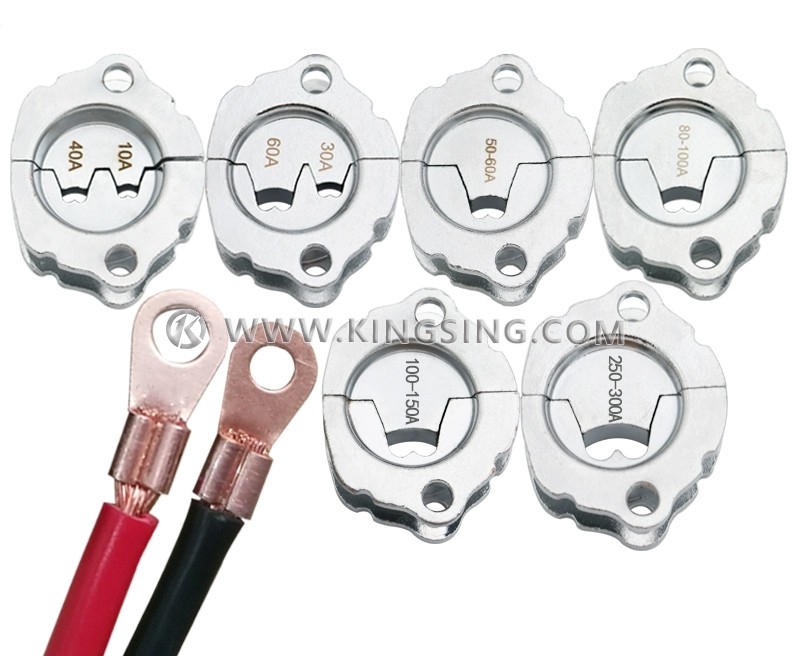

| 30-40A 10-20A B6-10t6 | 50-60A B16t12 | 80-100A B25t12 | 100-150A B35t12 | 250-300A B50t12 | |
 |  | ||||
| 300-400A B70t12 | 400-500A B95t12 | ||||
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

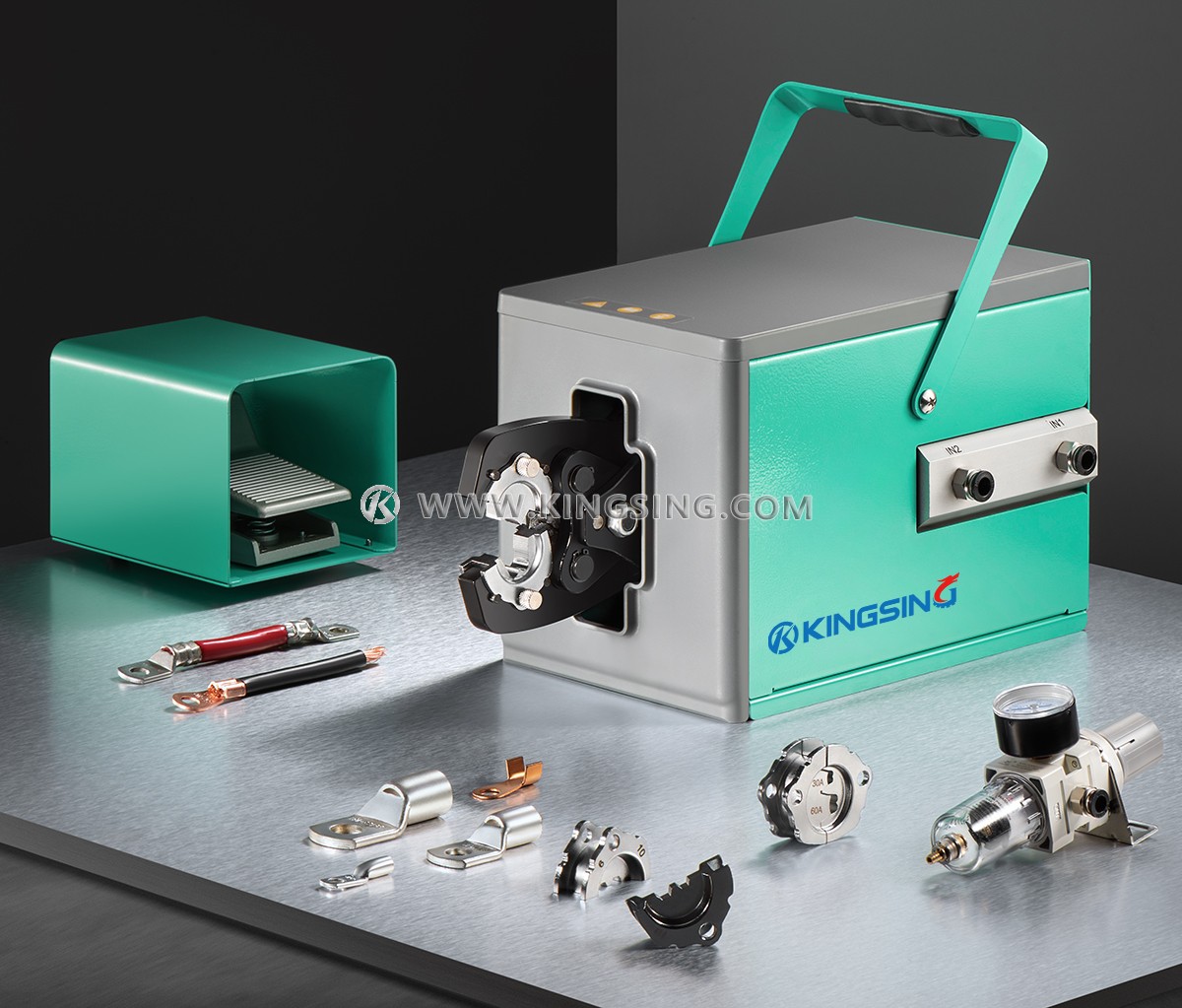

Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
