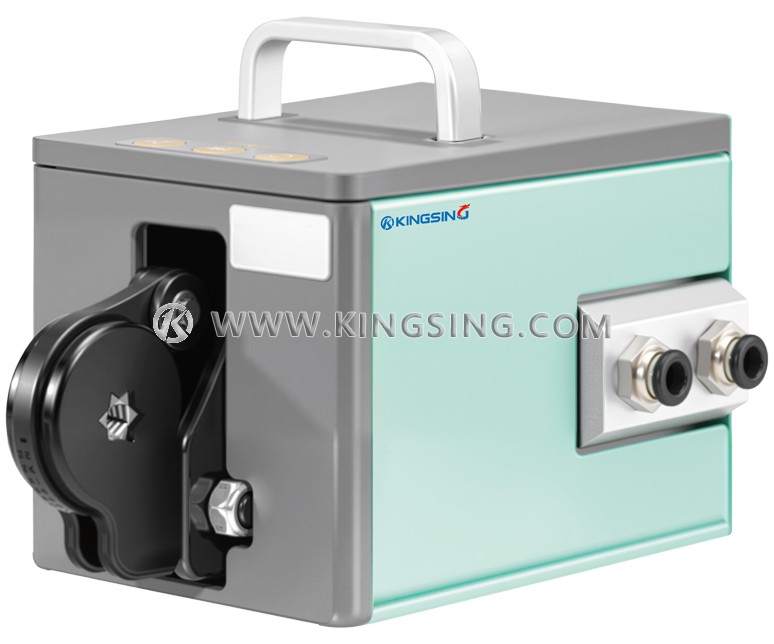

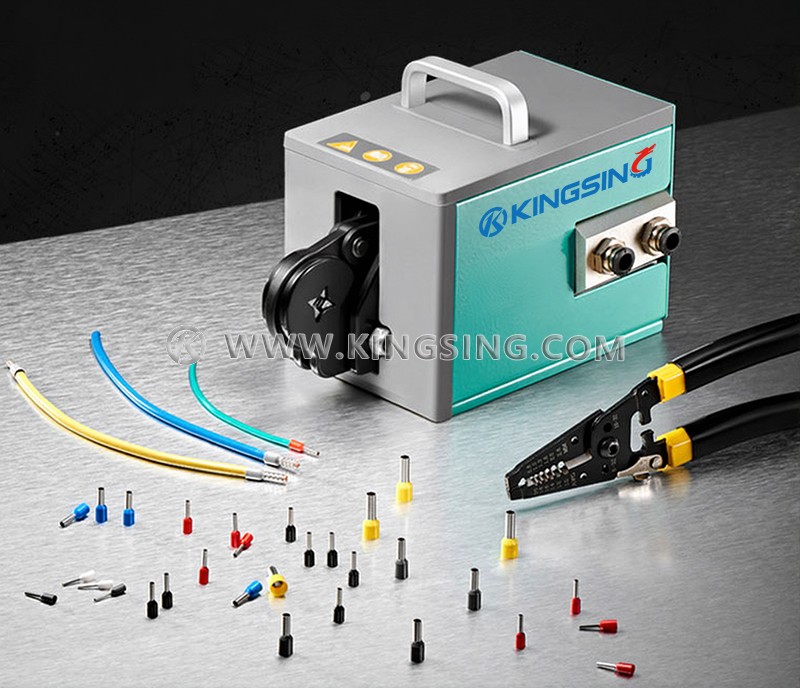

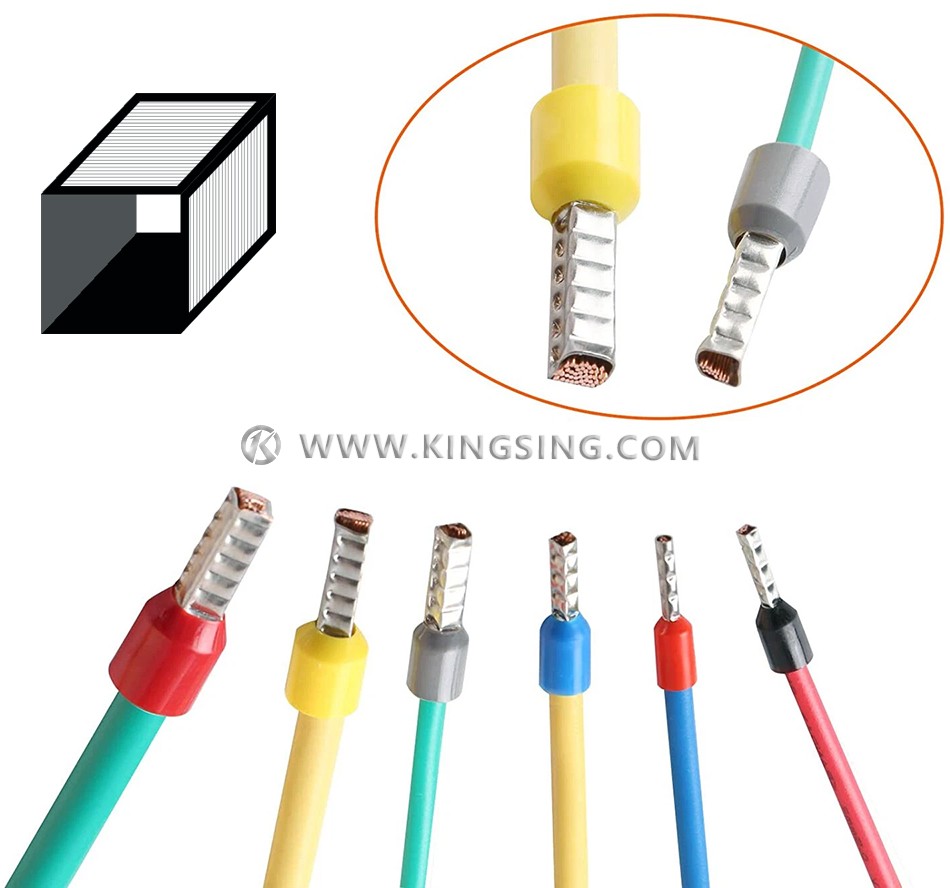

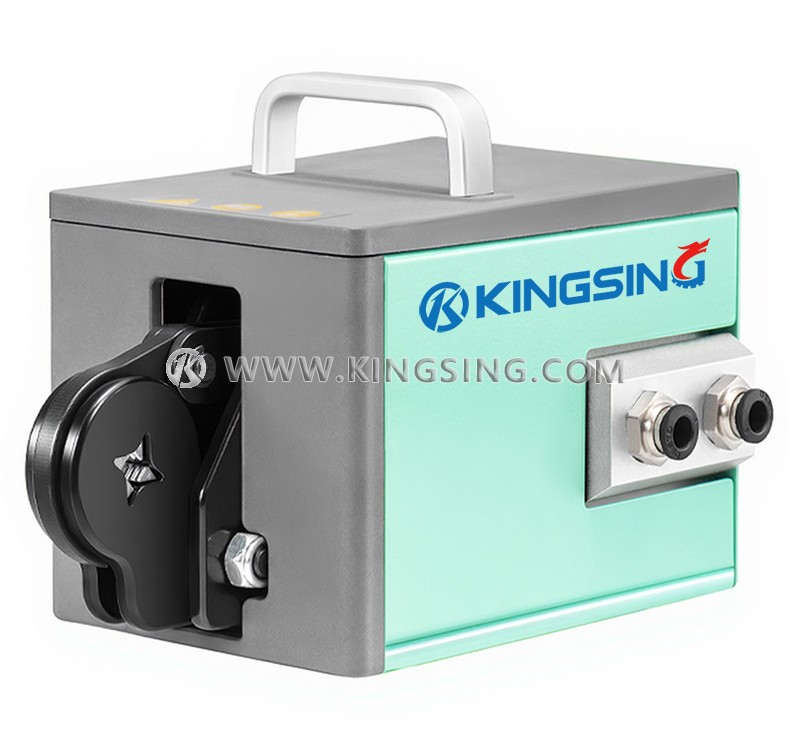

This pneumatic ferrule crimping machine is designed for precision crimping of tubular cable end sleeves, delivering a reliable square-shaped crimp for secure electrical connections. With its versatile crimping capability, it supports a wide range of ferrules without the need for frequent die changes, greatly simplifying operation and boosting productivity.
Powered entirely by compressed air, the machine requires no electrical supply, making it ideal for mobile work, field service, and environments where electricity is restricted or inconvenient. Its compact and lightweight design ensuring exceptional portability for technicians working across multiple locations.
The ergonomic top-mounted carrying handle enhances mobility and ease of transport, allowing operators to move effortlessly between workstations or job sites. This portable design eliminates the constraints of fixed workbenches, providing unprecedented flexibility in cramped spaces, vehicle installations, or outdoor applications.
Engineered with durability and efficiency in mind, this pneumatic crimper offers consistent results while minimizing operator fatigue through its air-powered operation. The tool delivers reliable performance across various wire gauges and ferrule types, reducing setup time and increasing overall workflow efficiency.
Whether in workshops, production lines, maintenance facilities, or on-site applications, it serves as a dependable solution for professionals seeking both operational flexibility and convenience in their cable termination tasks.

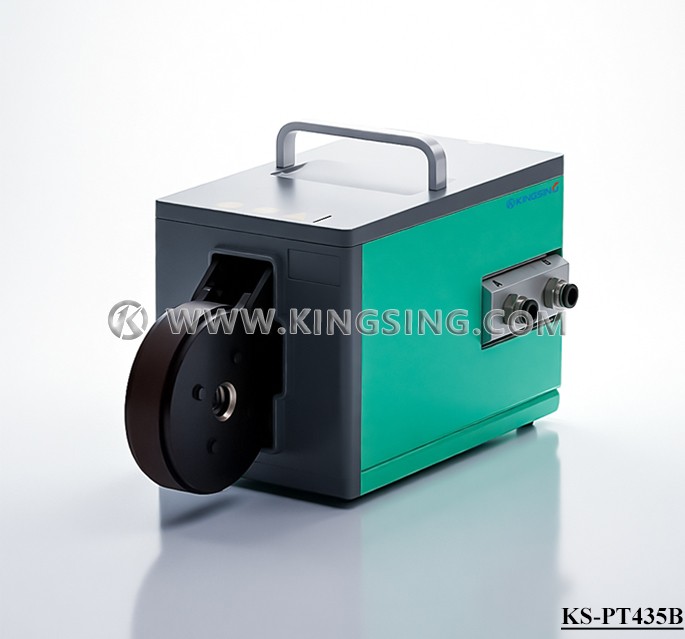

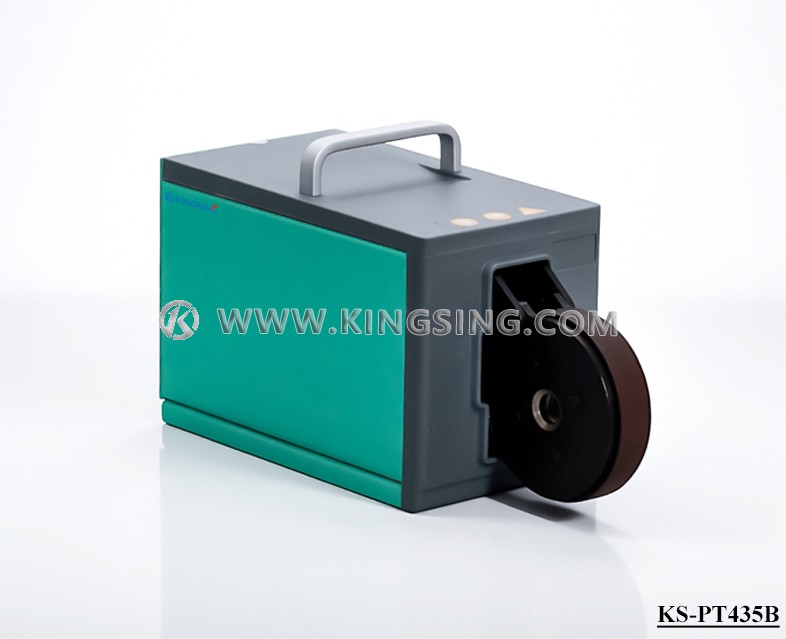

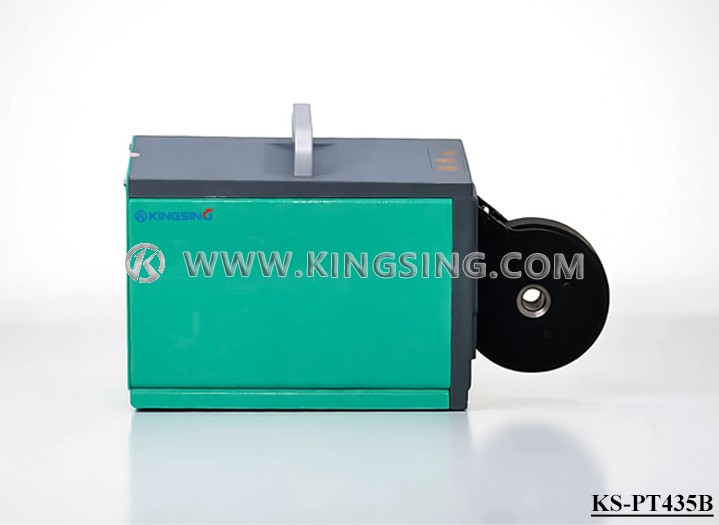

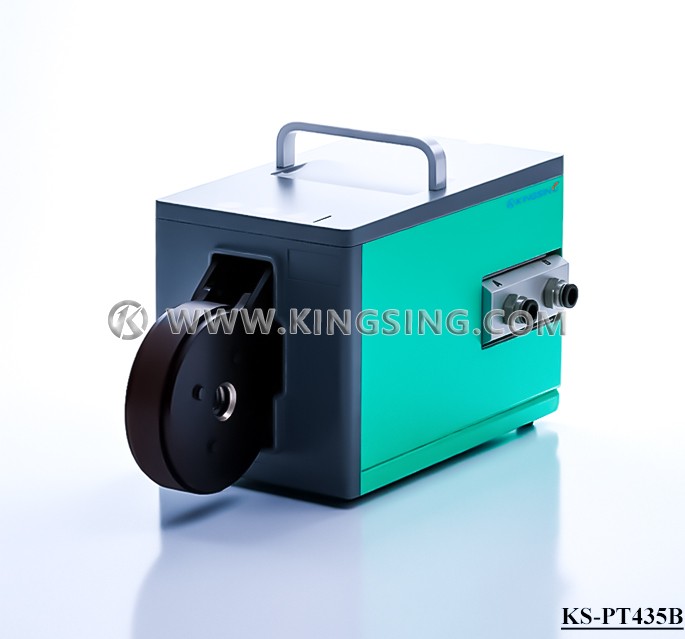

| Model | KS-PT435A | KS-PT435B | |
| Wire Size Range |
| 0.5–10 mm² | 0.5-35 mm² |
| 2×0.5–4 mm² | 2×0.5–10 mm² | |
| Crimping Force | 1.3 T | 2.2 T | |
| Crimping Shape | Square | ||
| Air Pressure | 0.25–1.0 mm² | 0.2-0.3 MPa | |
| 1.5–2.5 mm² | 0.3-0.4 MPa | ||
| 4.0–6.0 mm² | 0.5-0.6 MPa | ||
| 6.0-35 mm² | 0.6-0.8 MPa | ||
| Net Weight | 3.7 kg | 7.8kg | |
| Dimensions | 210 × 100 × 145 mm | 311 × 122 × 170 mm | |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
