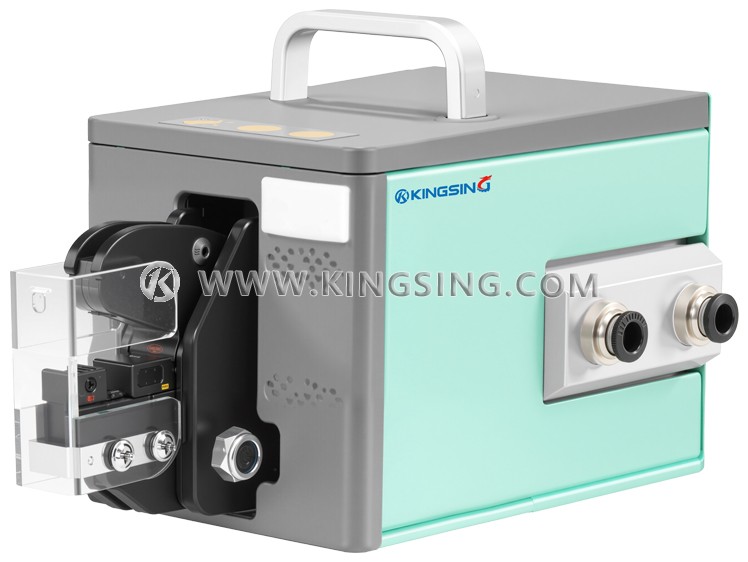

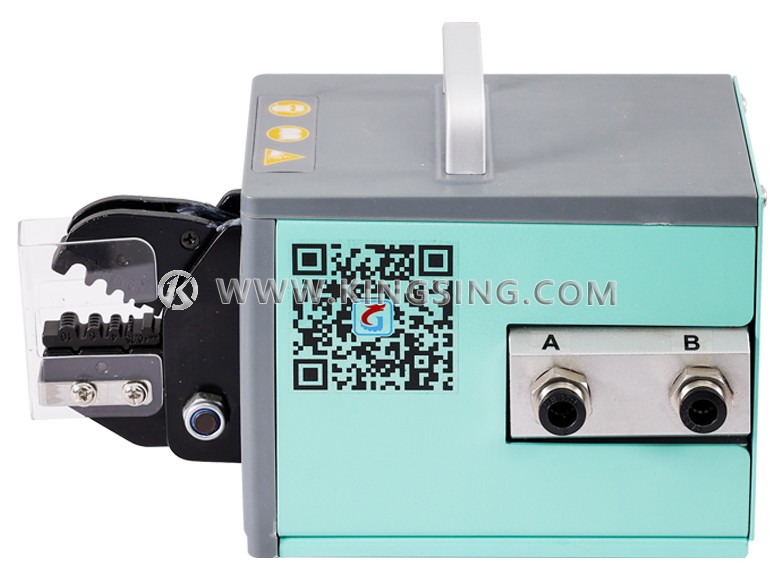

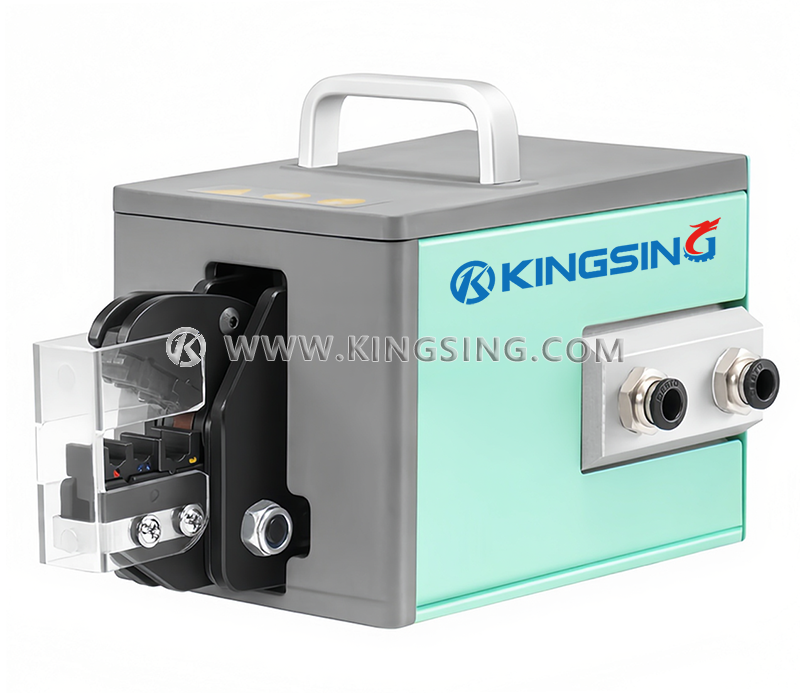

This advanced pneumatic terminal crimping machine is built for exceptional durability, ease of use, and adaptability across factory workshops, on-site service, and repair operations. Operating solely with compressed air, it removes the dependence on electricity—making it perfectly suited for mobile setups, remote job sites, or areas where power supply is limited or poses a risk.
Featuring a compact structure and an ergonomic carry handle, this lightweight portable crimper offers excellent handling comfort even during extended shifts. Its reinforced body withstands tough working conditions, while the streamlined design allows technicians to store and transport the tool effortlessly.

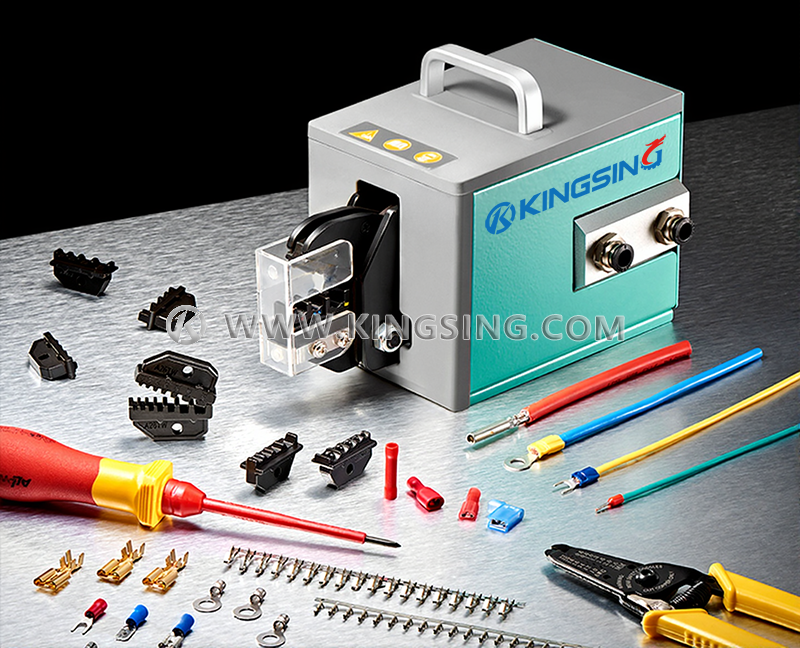

The equipment accommodates a variety of interchangeable crimping dies, ensuring smooth transitions between multiple connector types. From ferrules and insulated terminals to spade, ring, OT, UT, and other standard contacts, each die change is fast, tool-free, and aligned precisely to guarantee consistent, professional-quality crimps.
Designed for accuracy and efficiency in repetitive tasks, the pneumatic drive system applies stable pressure to achieve uniform results with little operator effort. Its balanced air mechanism minimizes inconsistencies, preventing faulty crimps that could compromise electrical performance.
Built to meet strict quality standards, this pneumatic crimping tool ensures safety, reliability, and long-lasting performance, making it an indispensable choice for professional electrical assembly and maintenance.
| Applicable Wire Range | 0.5–10 mm² | |
| Maximum Pressure | 1.5T | |
| Available Wire Size |  | 0.5-10 mm² |
 | 2×0.5-4.0 mm² | |
 | 1.0-6.0 mm² | |
 | 0.5-10 mm² | |
 | 1.0~6.0 mm² | |
 | 1.0-4.0 mm² | |
| Mold Type | Customized according to samples | |
| Air Pressure | 0.5–0.8 Mpa | |
| Net Weight | 3.8 kg | |
| Dimensions | 210 × 100 × 145 mm | |
| Optional Die Set List | |||
|---|---|---|---|
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
