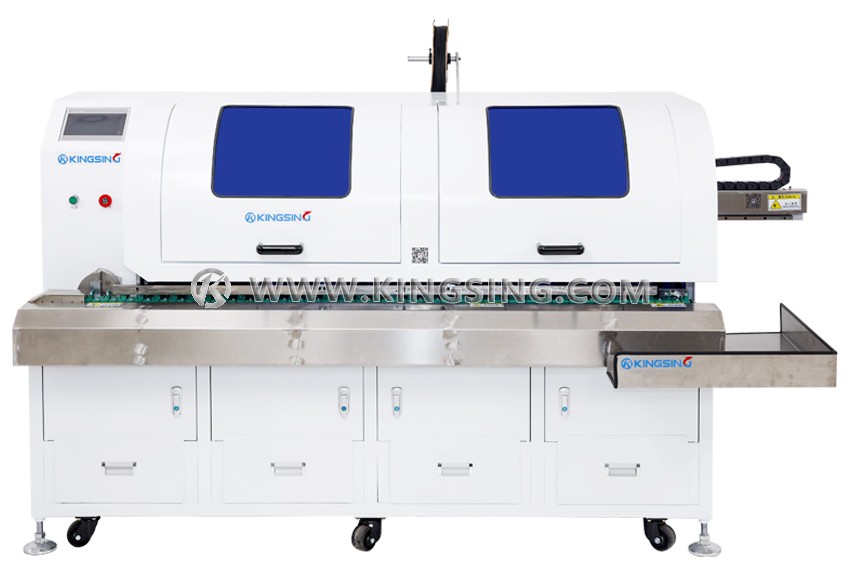

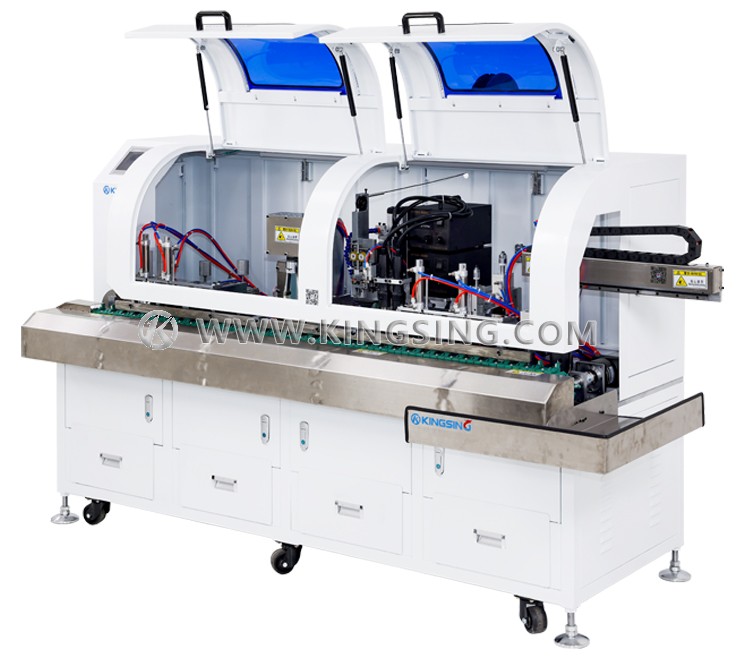

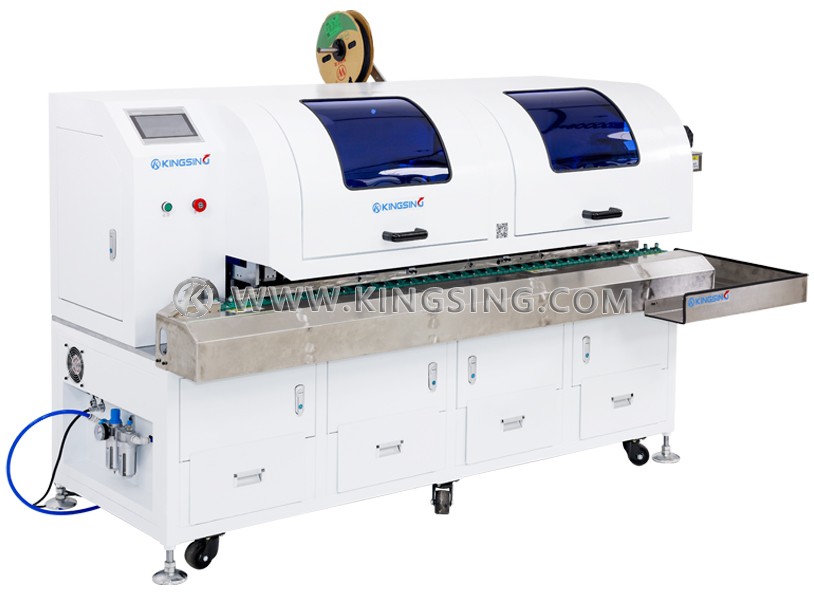

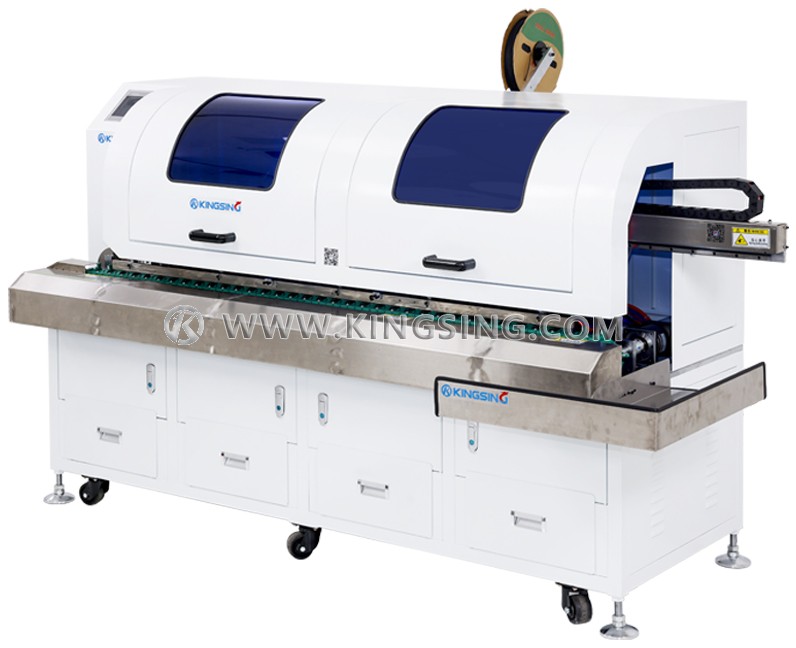

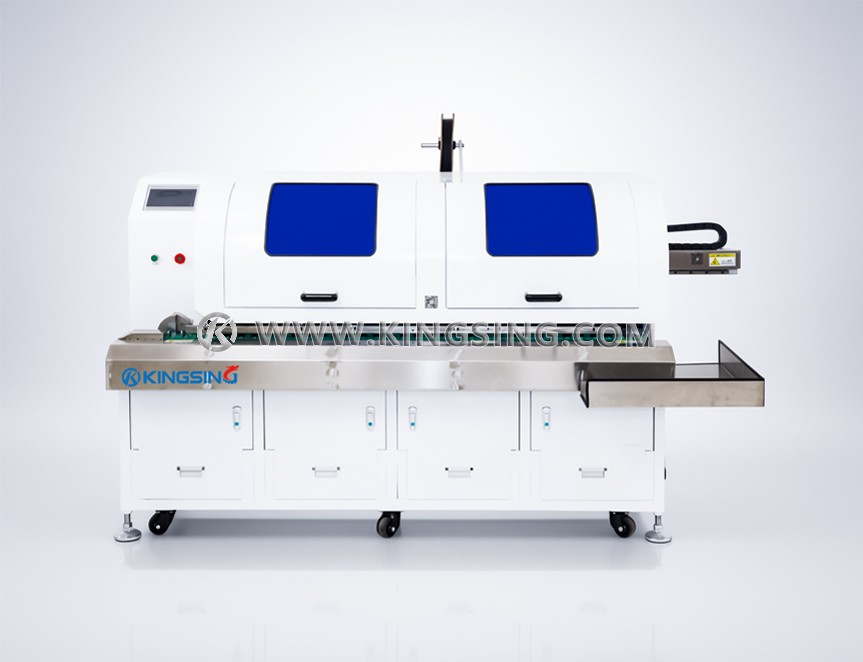

This machine is specially designed for processing cables with braided shielding, such as USB data cable, 1185 DC cable, car connection cable, microphone cable, etc. It integrates multiple functions and can automatically complete the following actions: wire head trimming, outside jacket stripping, shield brushing and twisting, heat shrink tube insertion and heat shrinking, core wire straightening, core wire stripping, finished product taking out, etc. The operator just needs to put the cable to be processed on the conveyor chain, the machine will complete all the processes automatically.
Diameter of Wire: Φ2~8mm (can be customized)
Jacket Stripping Length: 10~70mm (can be customized)
Capacity: 350pcs/hour
Rated Power: 2000W
Control Mode: HMI touch screen + Motion Control Board
Drive Mode: Servo motor + Step motor + Pneumatic cylinder
Power Supply: AC220V 50Hz
Air Pressure: 0.6~0.8MPa
Operation Temperature: 0~40℃
Ambient Humidity: 20%~80%RH (no condensation)
Dimension (L×W×H): 2500×780×1300mm (98.43×30.71×51.18in)
Weight: 300Kg (661.39lbs)
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
