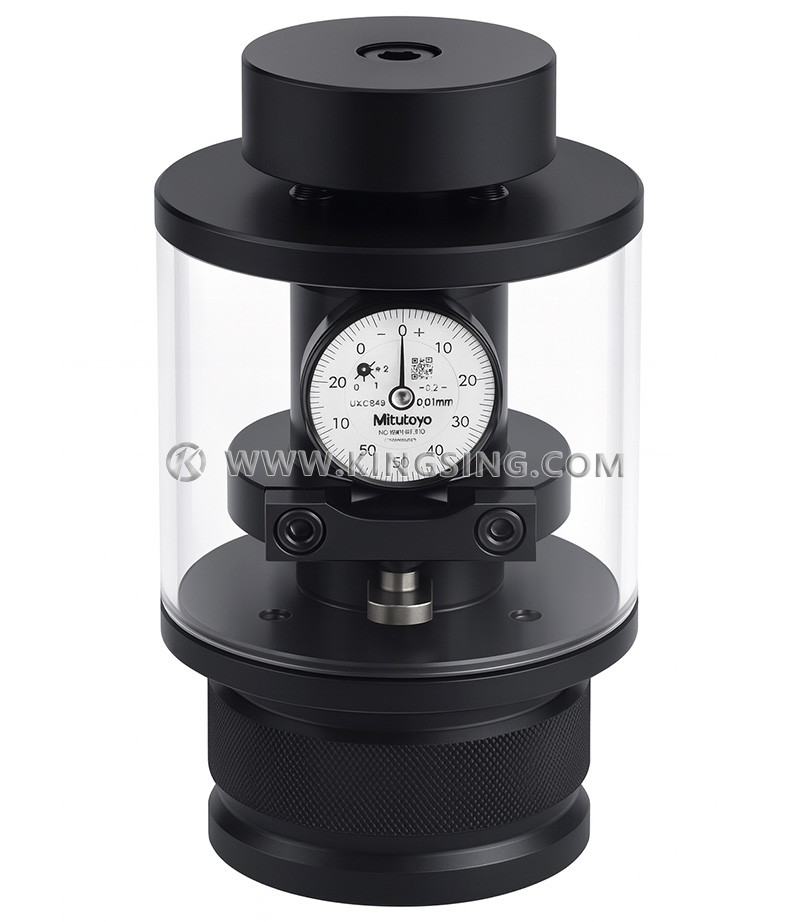

Crimping Press Shut Height Tester

This precision measuring instrument is specifically designed to verify and calibrate the shut height of terminal crimping machines, ensuring consistent closure height during crimping operations. Accurate shut height control is essential for maintaining stable crimping quality, electrical reliability, and mechanical strength in wire harness and connector assembly applications.

Equipped with a high-accuracy Mitutoyo dial gauge featuring 0.01 mm resolution, the instrument allows operators to easily verify and adjust the press shut height with minimal measurement error. Its dual measurement capability supports two standard shut heights through interchangeable punch heads, making it adaptable to different crimping press models and production requirements.

The instrument features a stable base design that minimizes vibration and measurement deviation during operation. Operators simply place the device under the crimping press ram and manually rotate the press shaft to bring the punch into contact with the measuring surface, observing the dial movement to determine if the height is within tolerance.

Key advantages include high precision measurement, simple operation without complex calibration procedures, maintenance-free design, and strong adaptability to various terminal presses. The compact form factor allows quick placement and removal during machine setup, while the robust construction ensures long-term reliability and consistent performance.

This shut height measuring instrument is widely used in automotive wiring harness factories, electrical equipment assembly lines, connector manufacturing facilities, and quality control laboratories. It serves as an essential calibration and inspection tool to ensure crimping machines maintain precise mechanical settings and deliver stable, high-quality production results across various terminal processing and wire harness manufacturing operations.
