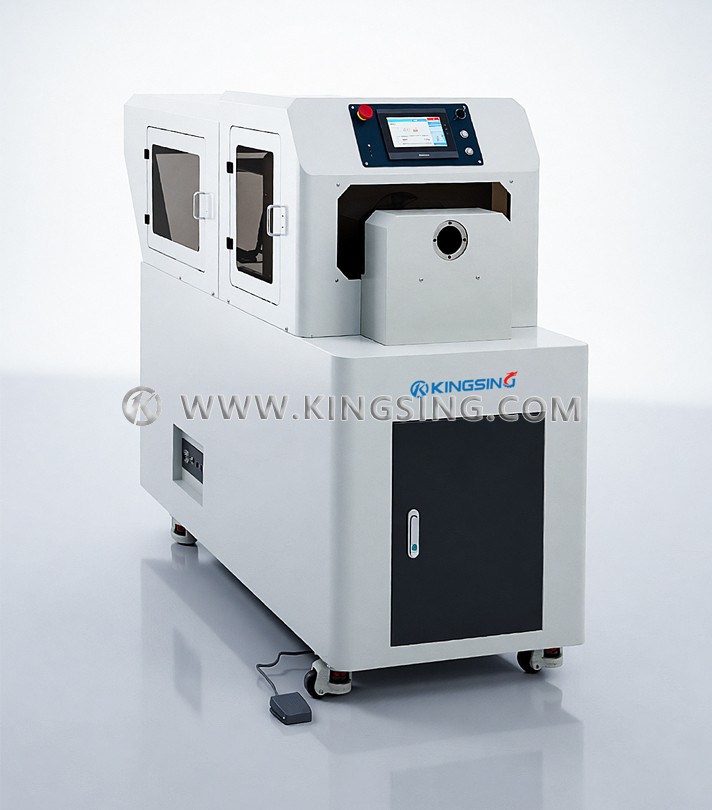

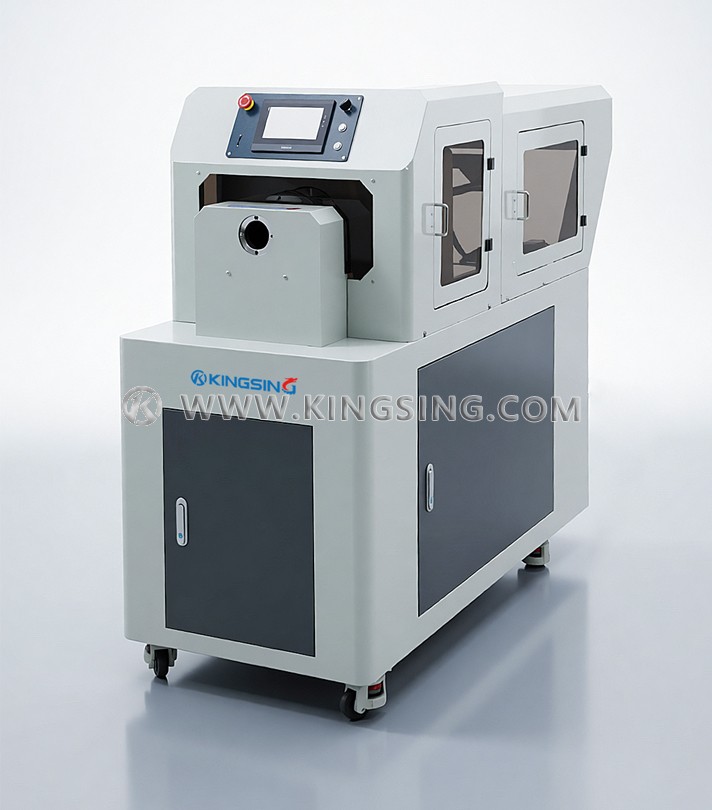

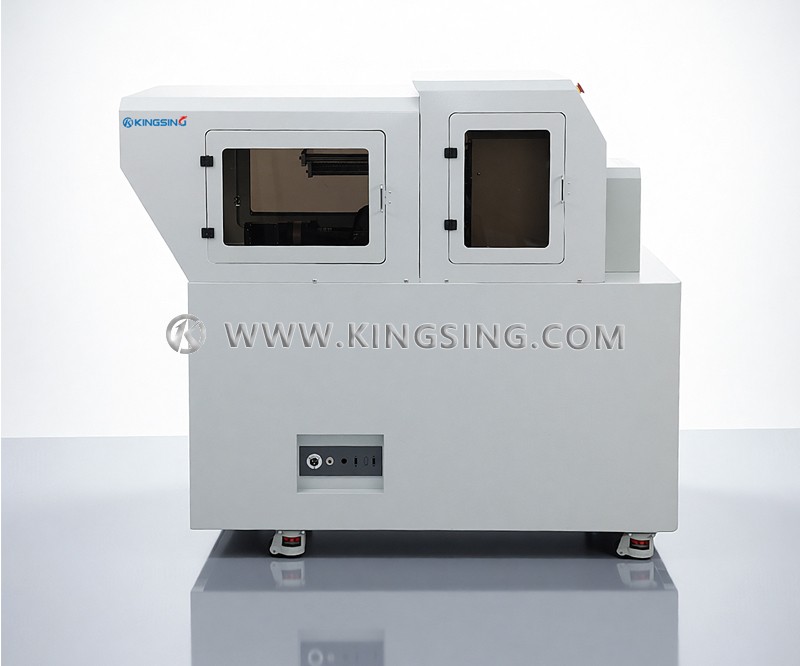

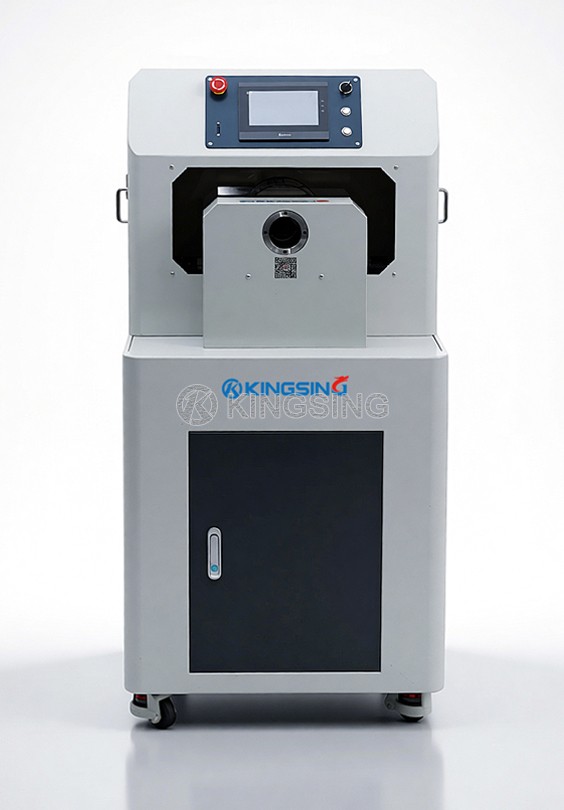

This model features a 7-inch touch screen and a servo electric clamping device, allowing for a minimum stripping depth of 0.01mm.
It utilizes a rotary cutting method with 4 rotary blades and 4 wire protection pieces, alongside 4 stripping blades.
The machine supports a standard stripping length of 500mm, which can be customized according to your specific needs.
It is equipped with a full servo drive system, operates on AC220V 50/60Hz, and has a power consumption of 2.5KW.
It has program storage function and can store up to 100 programs.
It can be operated via both foot pedal and manual controls.

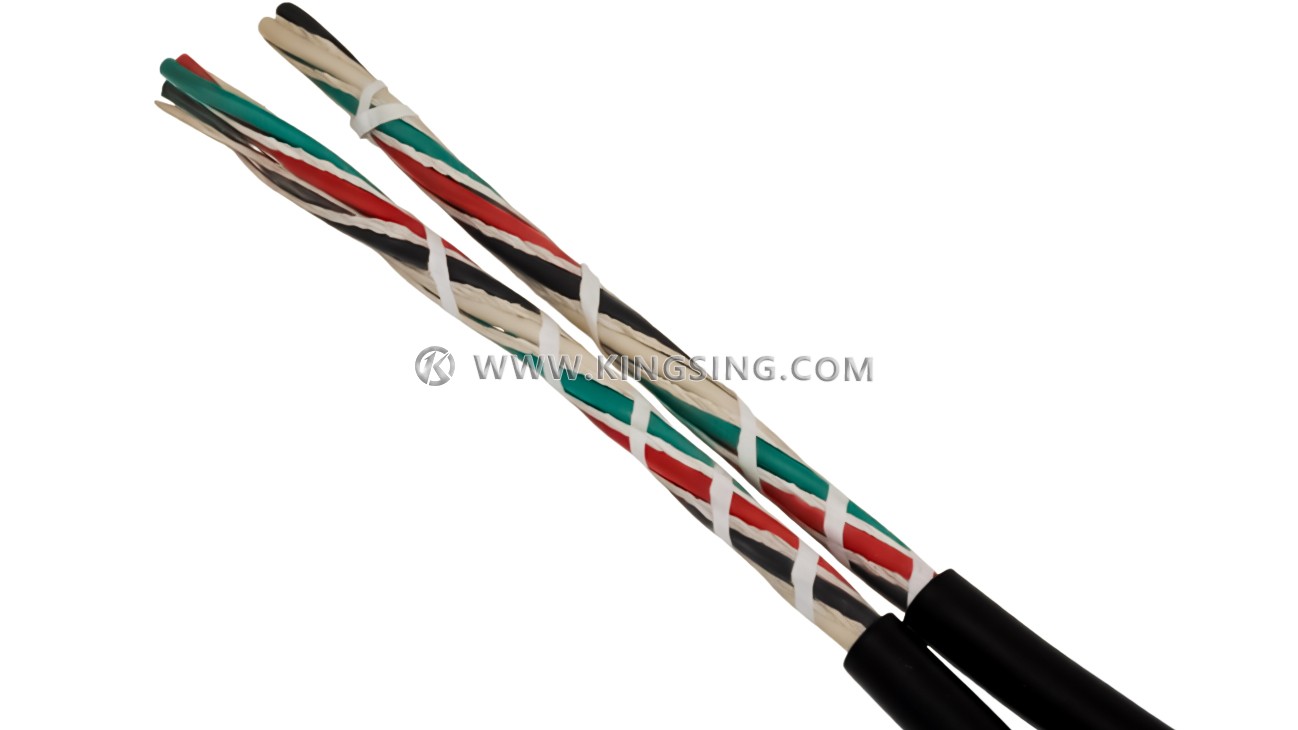

Wire Stripping Diameter: 30-65mm (1.18-2.56in)
Stripping Length: Max. 500mm (customizable)
Minimum Stripping Depth: 0.01mm (0.000394in)
Rotary Cutting Mode: 4 rotary blades + 4 centering slices
Stripping Mode: rotary blade unit+ 4 stripping blades
Wire Clamping Unit: servo electric clamp
Operating Environment: 15-35℃ with appropriate dryness
Storage Capacity: 100 programs
Display Mode: 7-inch touch screen
Operating Mode: foot switch / manual
Power Rating: 2.5KW
Weight: approximately 380kg (837.76lb)
Dimensions (L×W×H): 1660mm×710mm×1470mm (65.35×27.95×57.87in)
Power Supply: AC220V 50/60Hz
Drive Mode: full servo drive
Physical interface for MES system connection can be added (optional)
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
