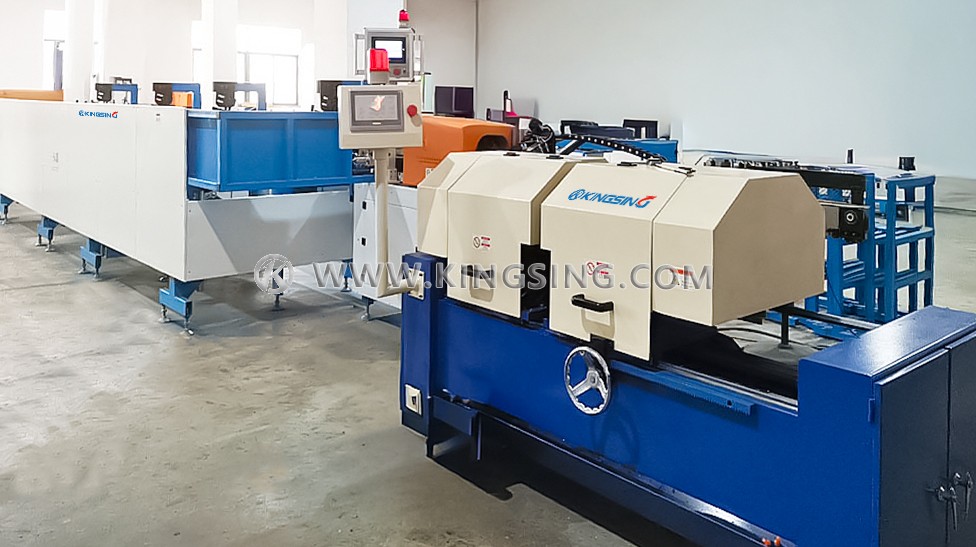

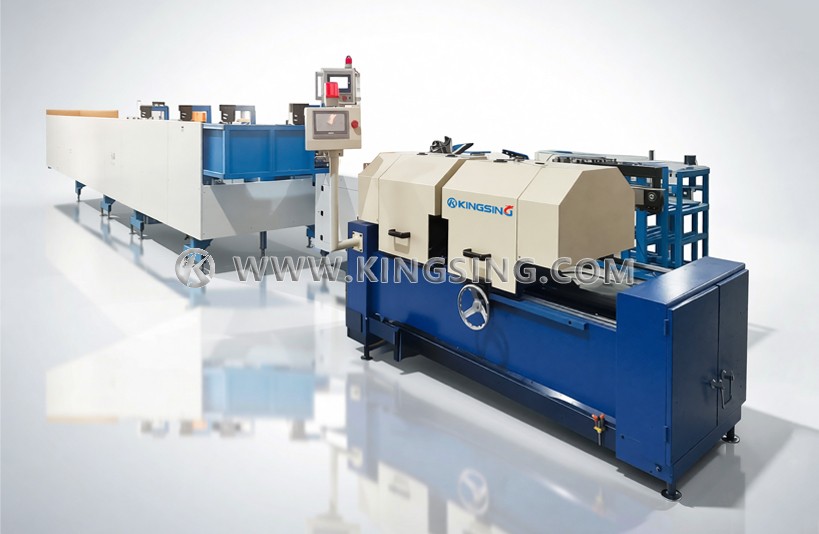

The automatic pipe cutting machine with servo feeding, cutting and chamfering all-in-one unit is a CNC machined equipment that integrates automatic feeding, precision cutting, and chamfering processing. It is controlled by PLC and servo system, enabling automated processing of pipes.
Drive System: Stepper motor + servo motor combined drive, ensuring feeding precision and operational stability
Wall Thickness Range: 0.8mm to 3.0mm, suitable for thin-wall to medium-wall-thickness pipes
Feeding Method: Stepper-servo collaborative control, reliable fixed-length precision
Fixed-Length Range: Adjustable from 150mm to 1000mm to meet cutting requirements for different lengths
Cutting Method: Stepless cutting, high cutting quality
Control System: PLC control with human-machine interface (HMI), easy to operate
Pipe Length Support: Standard 6-meter pipe length, customizable based on actual customer requirements
Machine Weight: 2.5 tons, solid and stable equipment structure
Total Power: 8KW, equipped with 380V industrial power supply
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
