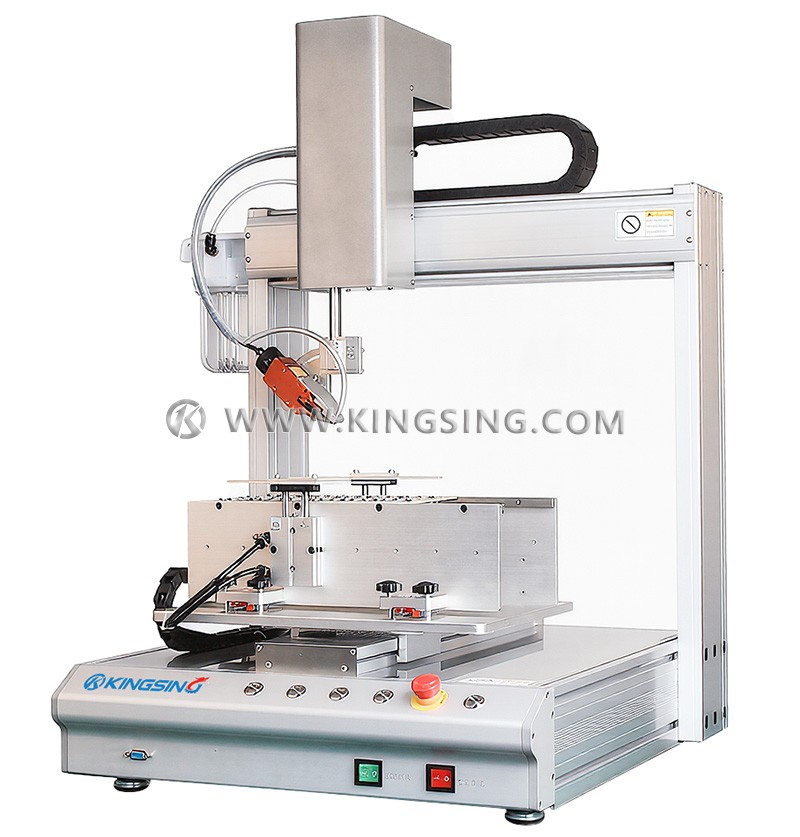

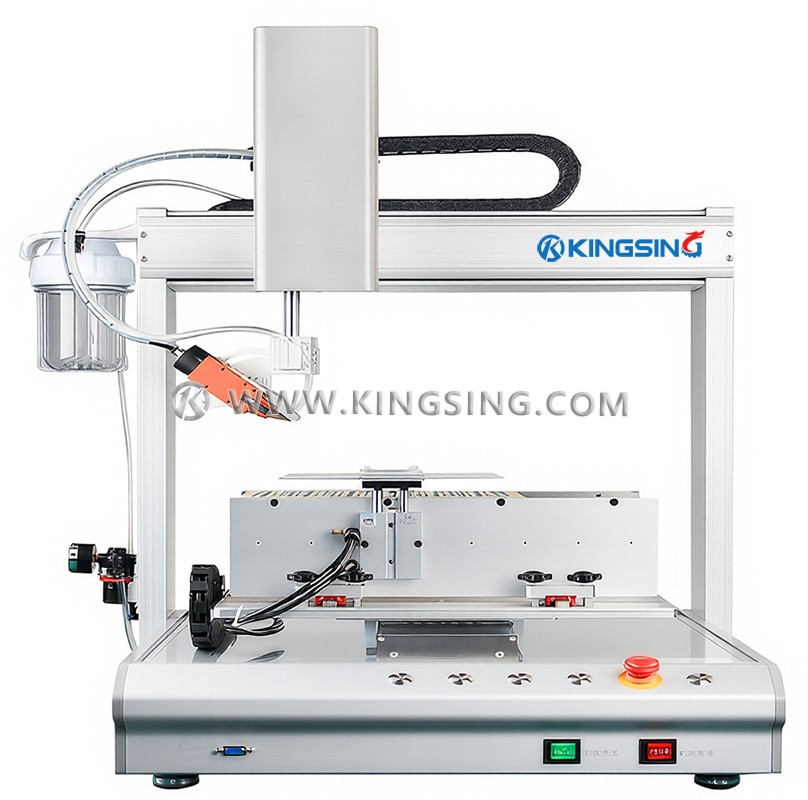

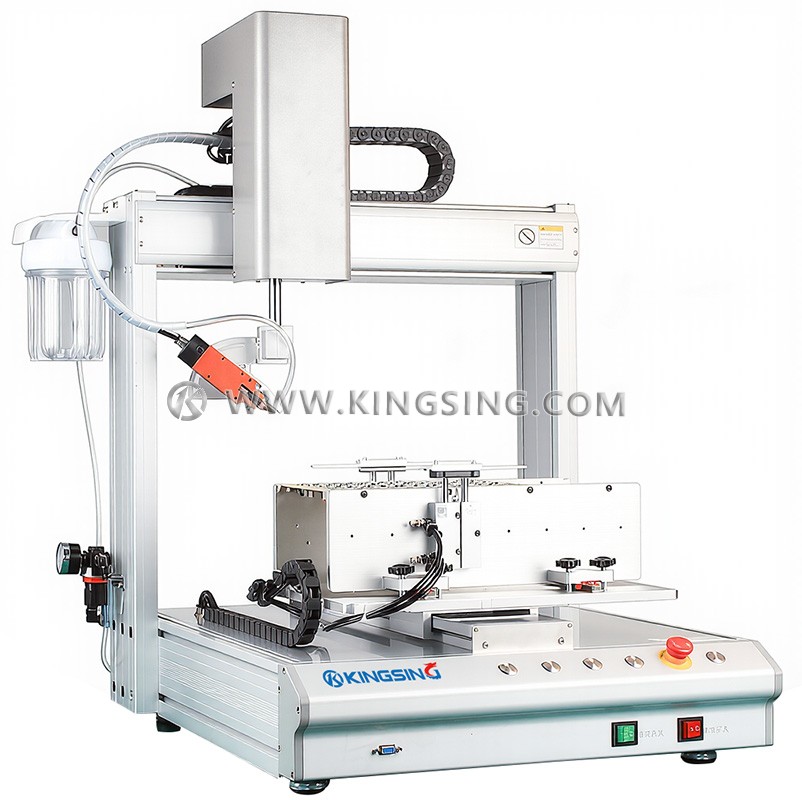

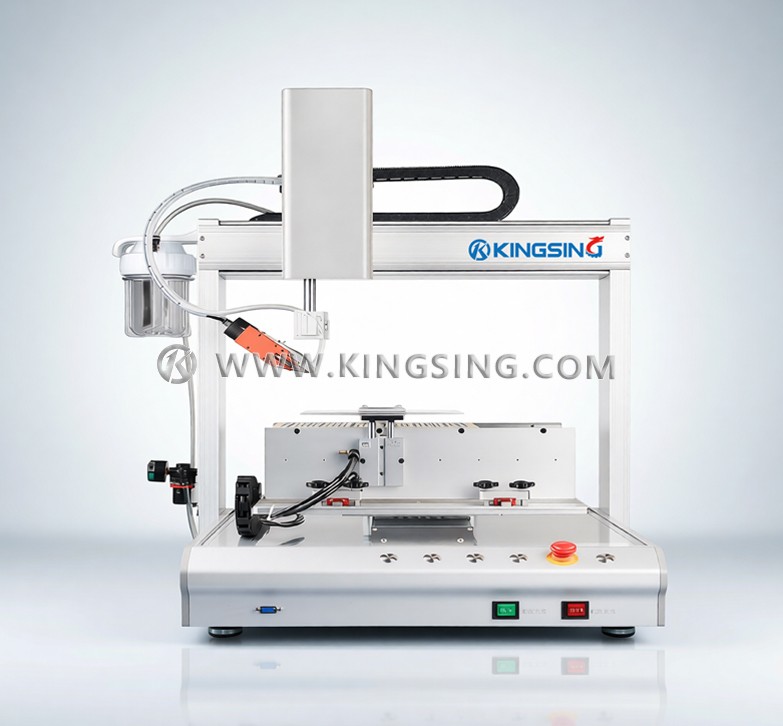

Desktop PCB Lead Cutting Machine

  • Model：KS-S938
  • Net. Weight：
  • Dimension：
Online Inquiry

This automatic PCB lead cutting machine delivers high-precision trimming of component leads after PCB assembly, featuring a precision motion module for fast movement, exceptional accuracy, and quiet operation. The robust structure and smooth motion control ensure reliable performance in demanding production environments.

The system incorporates universal adjustable fixtures that accommodate PCBs of varying sizes, providing operators with easy adjustment capabilities to match different board dimensions. This flexibility enables efficient handling of diverse product requirements across multiple production lines.

A self-contained scrap collection system enhances operational efficiency through automatic lead collection via a rotating recovery design. This feature maintains a clean work area while minimizing downtime associated with manual waste removal, contributing to streamlined production workflows.

The intelligent programming interface supports teaching-mode programming, enabling the system to navigate around obstacles such as tall components or irregular lead layouts. This user-friendly approach simplifies setup procedures, accelerates deployment, and accommodates operators with varying skill levels.

By combining precision engineering, operational flexibility, and advanced automation, this PCB lead cutting machine significantly improves production efficiency and quality while reducing manual labor requirements, making it an essential solution for modern electronics manufacturing facilities.

Travel Range (X/Y/Z)300×300×100 mm (customizable)
Repeat Accuracy±0.02 mm/axis
Resolution0.01 mm/axis
Movement Speed0–500 mm/s
Cutting Speed15,000 points/hour
Max. Load15 kg
Program StorageMax. 100 programs
External Control PortRS232
Air Pressure0.6–0.8 MPa
Power SupplyAC 110V–220V (customizable)
Machine Weight65 kg
Optional ConfigurationsSafety Guard Cover, Safety Light Curtain, Tooling Fixture
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
