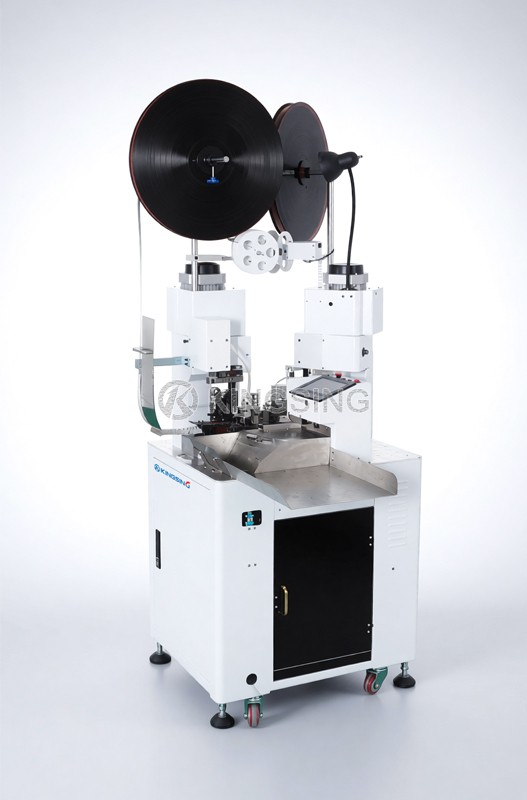

Double-sided Automatic Terminal Crimping Machine

  • Model：KS-T505
  • Net. Weight：
  • Dimension：
Online Inquiry

This double-sided automatic terminal crimping machine integrates wire cutting, stripping, and terminal crimping into a single high-precision operation. It is designed for efficient and consistent processing of various wire types, supporting cross-feed, direct-feed, and flag terminals for reliable connection in demanding industrial environments.

Constructed with ductile iron for robust rigidity and stable crimping height, the machine features a quick-change OTP bayonet applicator with a 30mm stroke. This allows rapid tool replacement, enabling one machine to handle multiple product variants by simply swapping the wire inlet conduit and crimping tool.

Equipped with a color touch screen interface, the machine provides intuitive program settings and advanced program memory functionality. Operators can save processing parameters for different products and recall them with a single command, significantly reducing setup and debugging time during production changes.

An optional crimping force monitor is available to track real-time pressure curve changes during each crimping cycle. The system automatically alarms and halts operation when irregular crimping forces are detected, ensuring consistent quality and preventing defective output.

Designed for high-volume manufacturing, this machine supports fast, automated wire processing with minimal manual intervention, making it ideal for electronics, automotive, and industrial control applications where reliability and throughput are critical.

Download: (1)
Applicable Wire SizeAWG28–16 (0.1–1.5 mm²)
Applicable TerminalsCross-feed terminal, direct-feed terminal, flag terminal
Cutting Length50–9999 mm (customizable)
Stripping Length≤10 mm
Cutting Tolerance±(0.5 + L × 2‰) mm (L = cutting length)
Crimping Force2 T
Crimp Stroke30 mm
Production Efficiency3000–4000 pieces/hour
Operation InterfaceColor touch screen
Air Pressure0.5–0.7 Mpa
Power Supply220V 50/60 Hz (customizable)
Net Weight320 kg
Dimensions800 × 830 × 1530 mm
Optional ConfigurationTerminal crimp force monitor, conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, customized solutions available upon request
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
