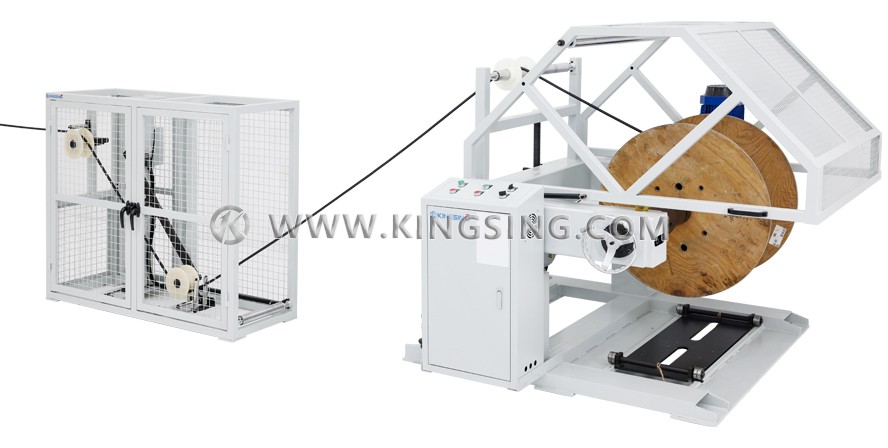

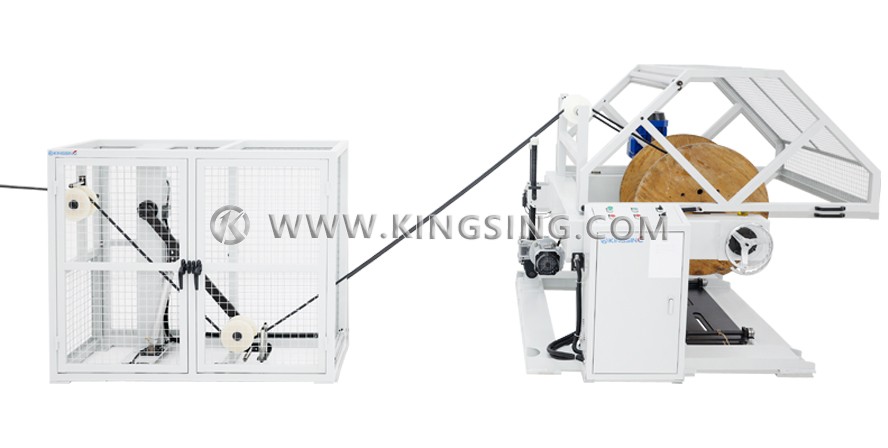

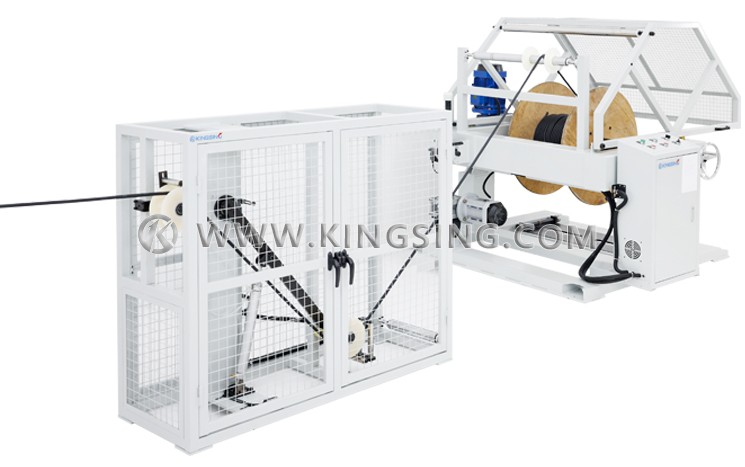

Robust Cable Reel Prefeeding System

  • Model：KS-W21 Series
  • Net. Weight：
  • Dimension：
Online Inquiry

The robust cable reel prefeeding system is designed for reels weighing up to 2.5Ton,

  • it features a quick lock cam mechanism and motorized reel lifting system for easy cable loading and fast changeover,

  • the feeding process allows rapid acceleration of the spool while maintaining low forces on the material being fed,

  • the integrated cable accumulator controls the speed of the dereeling drive,

  • the cable is led under constant tension to the cross cutting machine for trouble-free feeding.

Download: (1) (2) (3)
ModelKS-W210KS-W211KS-W212KS-W213
Wire Diameter3~20mm3~20mm3~45mm3~45mm
ApplicationNew energy automobile wire, charging cable, power cable, photo voltaic wire, BV wire
Wire Feeding MethodUse frequency converter to control wire  feeding speed
Wire Feeding Tension

Vertical roller tensioning structure, adopts clump

weight to adjust wire feeding tension

Mechanical pendulum rod structure, move clump

weight to adjust wire feeding tension

Max. Wire Loading1.5T1.5T2T2.5T
Wire Reel Size

OD:500~800

Width:300~600

OD:600~1000

Width:350~650

OD:600~1250

Width:550~950

OD:700~1500

Width:550~950

Wire Feeding Speed250/min250/min200/min150/min
Power Rating4KW4KW5.5KW7.5KW
Machine Weight500KG600KG700KG800KG

Note:

  • The safety guard is optional accessories and it is not standard accessories of the machine.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
