High Speed Wire Stripping Machine

  • Model:KS-09F
  • Net. Weight:
  • Dimension:

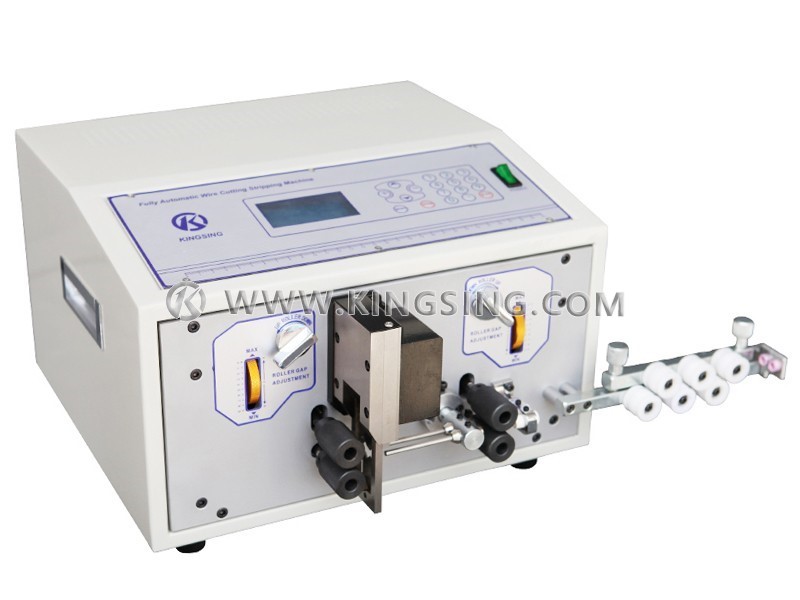

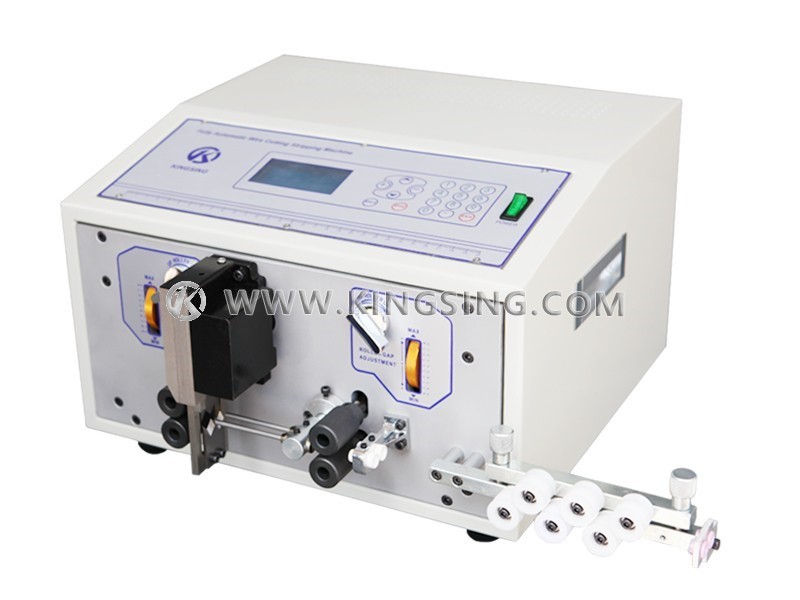

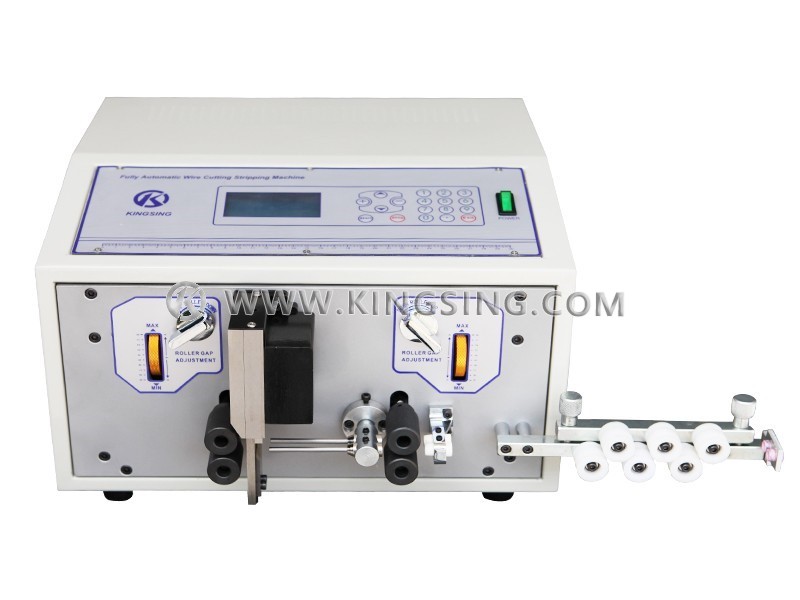

KS-09F Double Wire Cutting and Stripping Machine is based on state of the art technology and is designed for processing double wires. This machine allows you to process two wires simultaneously, two blades with opposite vertical movement, which can cut, half-strip, full-strip or middle strip for double wires at the same time. KS-09B-F has improved working efficiency around 1.5 times compared with normal ones.With 99 sets of program storage function, the device can be set up without mechanical adjustment. It also has the features of a high level of user convenience, excellent value for the money, ultra-easy operations and long service time.
This machine offers two different kinds of feeding rollers for customers’ choice, rubber rollers for thin and small wires, steel rollers for wires with harder insulation.

Download: (1) (2)

Available Core Cross-Section Range: 0.1 ~ 2.5mm2 (AWG12 - AWG32)
Max.Conduit Diameter: φ4.5mm
Cutting Length: 5 ~ 9999mm
Stripping Length: Head 0 ~ 35mm, End 0 ~15mm
Ultra short stripping function: available (Min. 5mm)
Memory Function: Max. 99 group of programs
Max.Middle Stripping Section: 11
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Drive Mode: 4-wheel drive
Display:LCD display with English menu
Blade Material: Hard tungsten steel
Power Rating: 180W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 34Kg
Dimension:390 × 350 × 255mm
