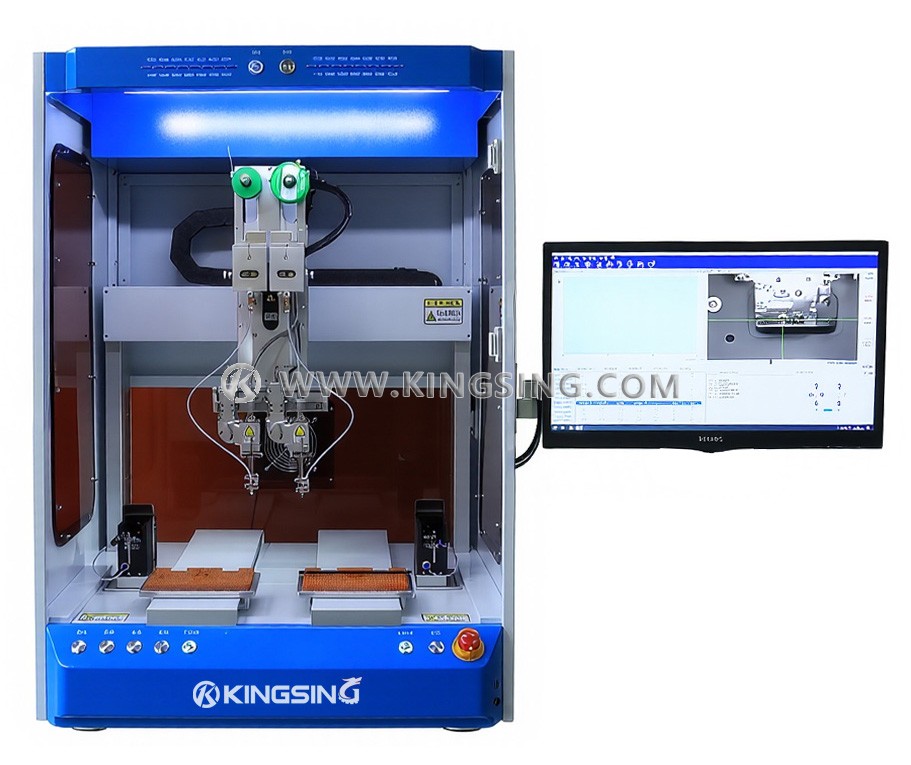

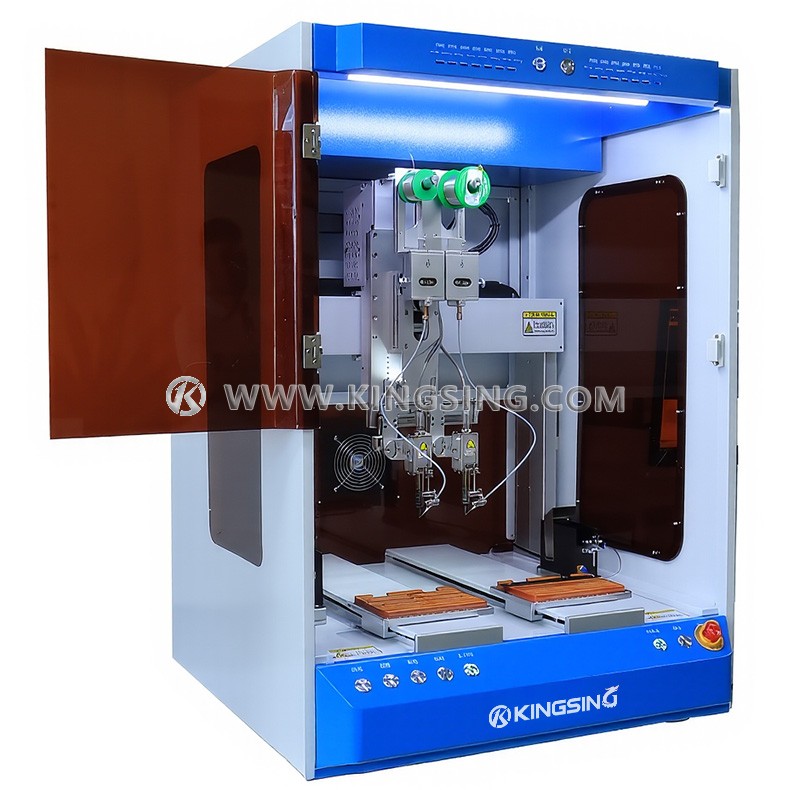

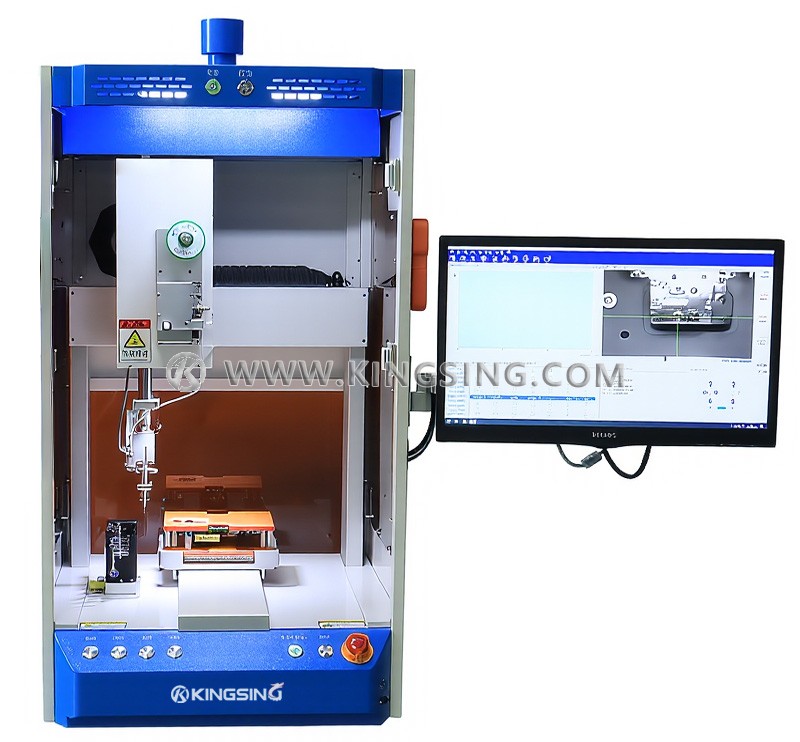

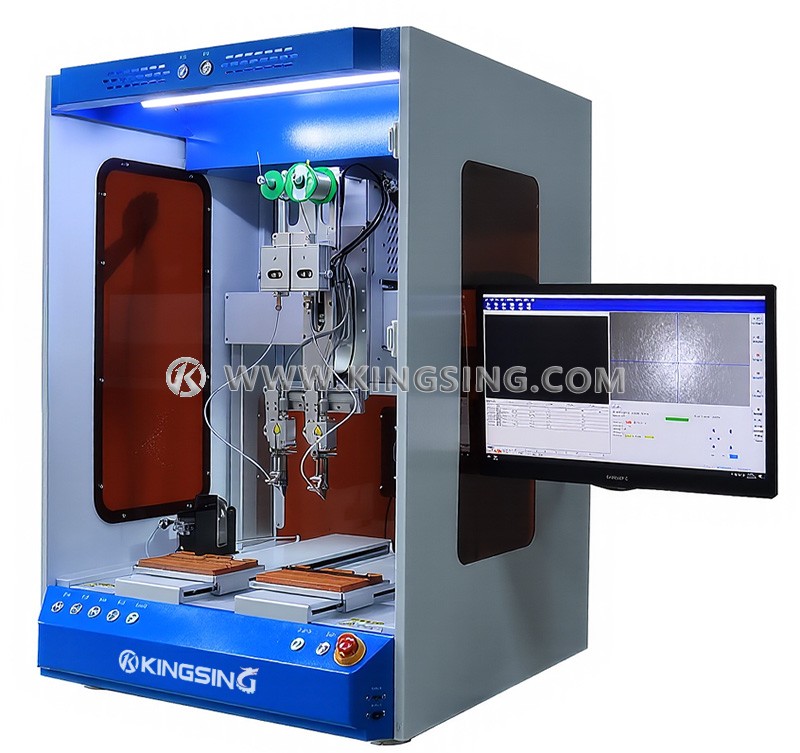

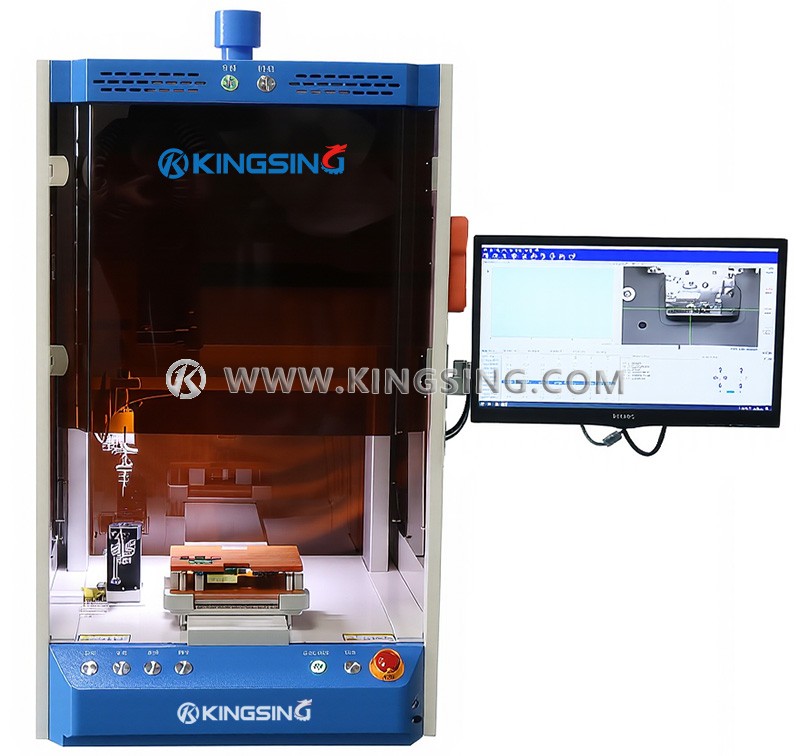

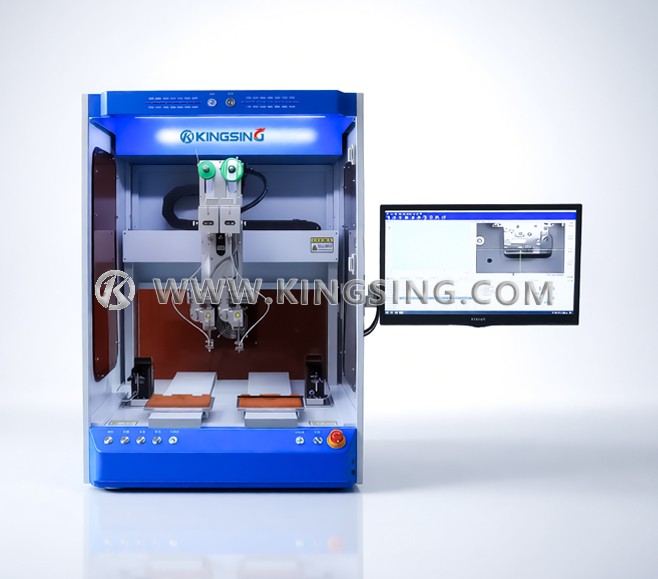

CCD Vision-guided Automatic Soldering Robot

This CCD vision-guided automatic soldering robot features a flexible programming system that accommodates diverse customer requirements and enables precise processing of high-accuracy products. The system supports comprehensive rotational soldering capabilities, allowing welding from multiple angles and positions to handle complex geometries with exceptional versatility.

Equipped with advanced heating control technology, the machine delivers rapid and reliable soldering performance. The high-frequency heating core provides superior heating efficiency and consistent soldering quality. The intelligent temperature control system enables ultra-fast heating with precise temperature recovery and exceptional temperature accuracy for optimal soldering results.

Built with precision CNC machined construction, the system ensures optimal axis perpendicularity and enhanced processing accuracy. The integrated high-capacity fume extraction system effectively minimizes flux contamination and maintains clean air quality in the working environment. The robust soldering iron tips feature multi-layer high-temperature resistant coatings and are available in extensive configurations to meet specific customer requirements.

With multi-level operation authority controls, the system prevents operational errors while maintaining an intuitive interface for simplified operation. Large memory storage capacity supports advanced programming functions including area array processing, translation, and rotation calculations.

The system excels in processing various electronic components including connectors, PCB assemblies, LED modules, wire harnesses, and fine electronic parts. Its programmable flexibility allows custom jig manufacturing and efficient adaptation to different soldering applications across telecommunications, automotive electronics, consumer electronics, and power supply manufacturing industries.
